Performance and scaling

Arena performance spans environment creation and evaluation execution. This page reports reference measurements for three parts of that workflow:

• Parallel environments within one Run: advancing many environments together on one GPU to increase rollout throughput.

• Independent Runs across GPUs: using OSMO to execute Runs concurrently and reduce the time needed to finish an Experiment.

• Agentic environment generation: producing the first structured environment spec from a prompt, then resolving a valid spec into a pool of layouts.

An environment-step is one simulation step completed by one environment. A vectorized step advances every parallel environment in a Run once. For example, one vectorized step with 256 parallel environments completes 256 environment-steps.

The two evaluation-execution benchmarks used the same camera-free workload: the DROID Rubik’s-cube-into-bowl task at the Maple table, the zero_action policy that sends zero-valued actions, and 300 vectorized steps per Run. The agentic-generation benchmark uses the separate workload described in its section.

Note

These are preliminary reference measurements collected for this release. They show how the specified workloads performed on the named hardware and model; they are not performance guarantees for other tasks or systems.

Parallel environments within one Run

The single-GPU benchmark ran a fresh Arena process for each environment count on one NVIDIA RTX 5880 Ada Generation GPU with 49,140 MiB of memory. Rollout throughput is the number of parallel environments divided by the mean time for one vectorized step. It excludes process startup, environment construction, report generation, and shutdown.

The host also used an Intel Core i9-10920X CPU with 12 cores and 24 threads, 62 GiB of system memory, Ubuntu 22.04.5, and NVIDIA driver 560.35.05.

Single-GPU rollout results

Parallel environments	Mean vectorized step	Rollout throughput
1	185.0 ms	5.41 environment-steps/s
64	200.0 ms	319.93 environment-steps/s
256	234.4 ms	1,092.18 environment-steps/s
512	280.6 ms	1,824.90 environment-steps/s
1,024	428.4 ms	2,390.22 environment-steps/s

Independent Runs across GPUs with OSMO

The distributed benchmark used one Experiment containing eight identical Runs. Each Run created 256 parallel environments, advanced them for 300 steps, and used one NVIDIA L40 GPU. OSMO was configured to execute at most 1, 2, 4, or 8 Runs at once.

With fewer than eight GPUs, OSMO executed the Runs in consecutive groups. The active Arena execution time below is the sum of the active time for those groups, from the first Arena process starting until the last process in each group exited. It includes Arena and Isaac Sim startup, environment construction, rollout, and shutdown. It excludes OSMO queueing, container-image downloads, inactive time between groups, and final output collection.

OSMO distributed-Run results

Concurrent Runs and GPUs	Scheduling of eight Runs	Active Arena execution time	Speedup	Mean Run duration
1	Eight consecutive Runs	1,255.2 s	1.00x	156.9 s
2	Four groups of two	621.0 s	2.02x	154.6 s
4	Two groups of four	310.2 s	4.05x	154.3 s
8	All eight together	157.8 s	7.95x	154.0 s

Executing all eight Runs at once reduced active Arena execution time from 20 minutes 55 seconds to 2 minutes 38 seconds, a 7.95x speedup. The mean duration of an individual Run changed by less than 2% across the four measurements. All 32 Runs completed successfully; the eight-GPU configuration used six worker nodes.

Using both scaling axes

The two approaches address different parts of an evaluation and can be combined. Parallel environments increase the amount of simulation work completed by each Run on its GPU. Distributing independent Runs lets OSMO execute more of the Experiment at the same time across available GPUs and worker nodes.

Rollout benchmark scope

• The single-GPU test ran on a local engineering workstation, not a controlled performance lab system.

• The workload did not render cameras or run policy inference. Cameras, policies, scene contents, and physics settings can change both throughput and capacity.

• The single-GPU and OSMO benchmarks used different GPU models and software builds. Their absolute step times should not be compared directly.

• Arena’s component timers use CPU wall-clock time without explicit CUDA synchronization. They are rollout diagnostics, not GPU kernel measurements.

• Full OSMO submission time is not used for the distributed speedup because container-image cache state differed between submissions.

Agentic environment generation

This benchmark measures the responsiveness and execution latency of Arena’s agentic environment generation pipeline. It answers two questions:

1. How long after a natural-language request does the agent return its first structured environment spec?

2. How long does Arena take to turn a valid environment spec into a resolved pool of Isaac Lab layouts?

Benchmark definition

The benchmark reports wall-clock p50, p95, and p99 latency. Each environment and configuration was measured 100 times.

Time to first environment spec is measured from the request being sent until the first parseable, structured environment spec is available:

\[t_{\text{first spec}} = t_{\text{spec available}} - t_{\text{request sent}}\]

Time from valid spec to resolved layouts is measured from invoking the environment run command until the layout pool and its object and robot placements are resolved and validated:

\[t_{\text{resolved layouts}} = t_{\text{layout pool ready}} - t_{\text{environment run command}}\]

A valid spec passes the fixed automated schema and semantic checks. SimulationApp startup is excluded from layout-resolution latency.

The benchmark does not measure:

• Time to the first valid, repaired, or user-approved spec. The first-spec metric stops at the first parseable spec.

• Correctness, task fidelity, asset selection, semantic quality, or other model-dependent quality measures.

• Time spent reviewing or manually editing a generated spec, layout, task, asset choice, or placement.

• Human-assisted completion rate, review throughput, or time to a human-approved environment.

Benchmark coverage

The environments vary scene complexity, object count, object source, and whether the objects are homogeneous or heterogeneous. Layout resolution also varies the number of parallel environments. Each parallel environment uses five cached layouts.

Agentic environment generation base environments

Environment family	Base request	Variants
Tabletop homogeneous pick and place	DROID picks a banana to a plate on a maple tabletop.	0, 6, or 14 fruit/vegetable distractors; SimReady beverage can and basket variant
Tabletop heterogeneous pick and place	DROID picks fruit to a plate on a tabletop.	Heterogeneous fruit object set
Kitchen homogeneous pick and place	DROID picks a banana to a plate on a kitchen countertop. DROID is next to the countertop, on the floor.	0, 6, or 14 fruit/vegetable distractors
Kitchen open door	DROID opens the fridge door in the kitchen. DROID is next to the fridge, on the floor.	Referenced articulated fridge

Factors expected to affect prompt-to-spec latency include the number of objects and relations, scene complexity, SimReady Search API use, inference endpoint, and agentic model. Factors expected to affect layout resolution include GPU, layout-pool size, the number of objects and relations, homogeneous versus heterogeneous geometry, and scene complexity. See How Model and Endpoint Affect Generation Metrics for how model and endpoint selection affect generation latency and reliability.

Prompt to first environment spec

The agentic model was openai/openai/gpt-5.6-terra on an internal endpoint. Requests used NVIDIA campus Ethernet. Every environment returned a parseable first spec in all 100 trials.

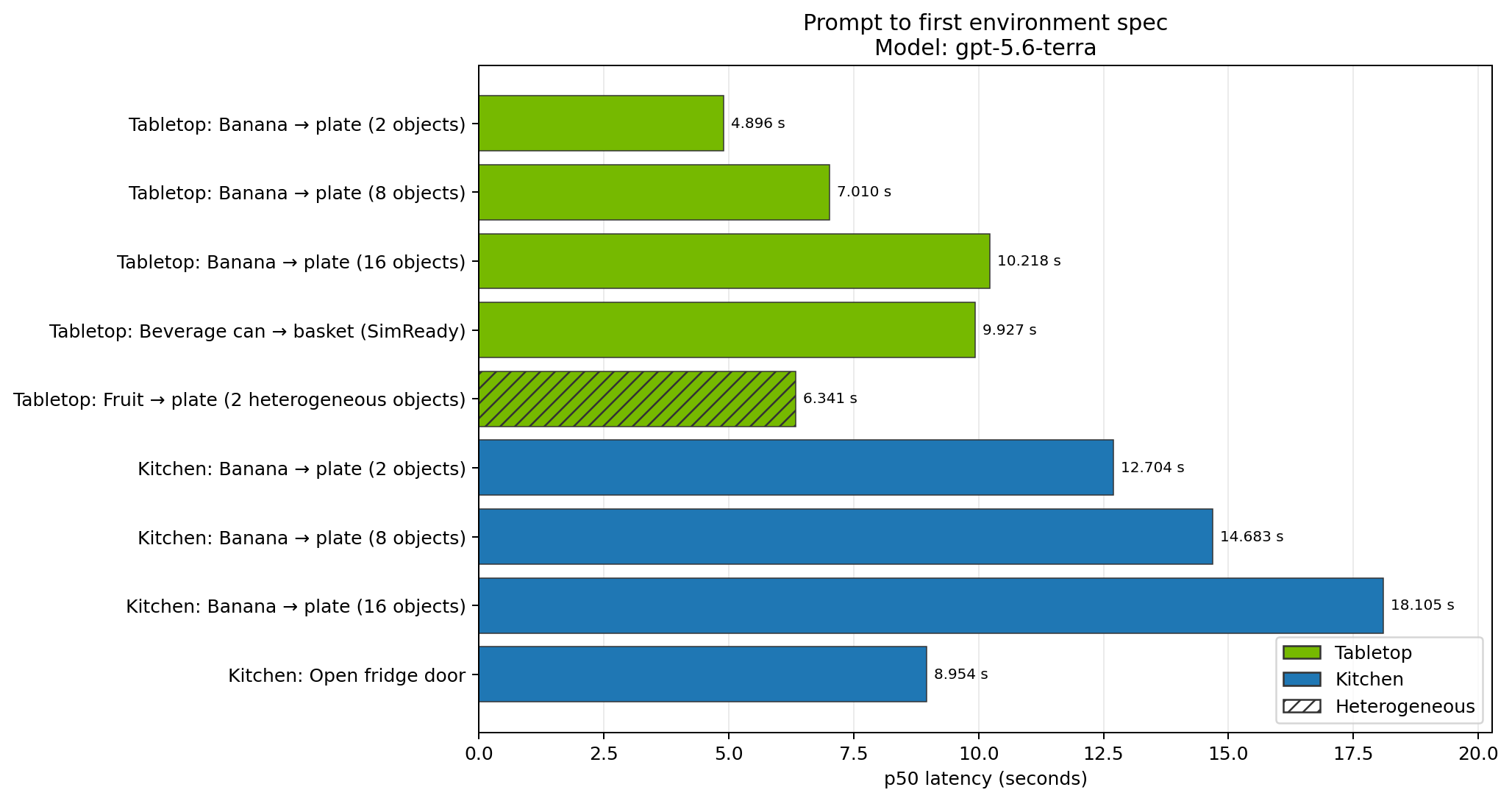

Median prompt-to-first-environment-spec latency. Hatching identifies the heterogeneous-object case.

Prompt-to-first-spec results

Environment	Scene	Objects	Heterogeneous	Success	p50 (s)	p95 (s)	p99 (s)
tabletop_banana_plate_distractors_0	Tabletop	2	No	100/100	4.896	10.020	25.582
tabletop_banana_plate_distractors_6	Tabletop	8	No	100/100	7.010	10.586	15.180
tabletop_banana_plate_distractors_14	Tabletop	16	No	100/100	10.218	14.985	56.083
tabletop_beverage_can_basket_simready	Tabletop	2	No	100/100	9.927	14.578	26.546
tabletop_heterogeneous_fruit_plate	Tabletop	2	Yes	100/100	6.341	10.693	37.385
kitchen_banana_plate_distractors_0	Kitchen	2	No	100/100	12.704	16.624	27.293
kitchen_banana_plate_distractors_6	Kitchen	8	No	100/100	14.683	20.607	47.596
kitchen_banana_plate_distractors_14	Kitchen	16	No	100/100	18.105	26.405	74.618
kitchen_open_fridge_door	Kitchen	0	No	100/100	8.954	18.527	29.514

Valid spec to resolved layouts

Layout resolution ran on an NVIDIA RTX 6000 Ada. The layout count is five times the number of parallel environments.

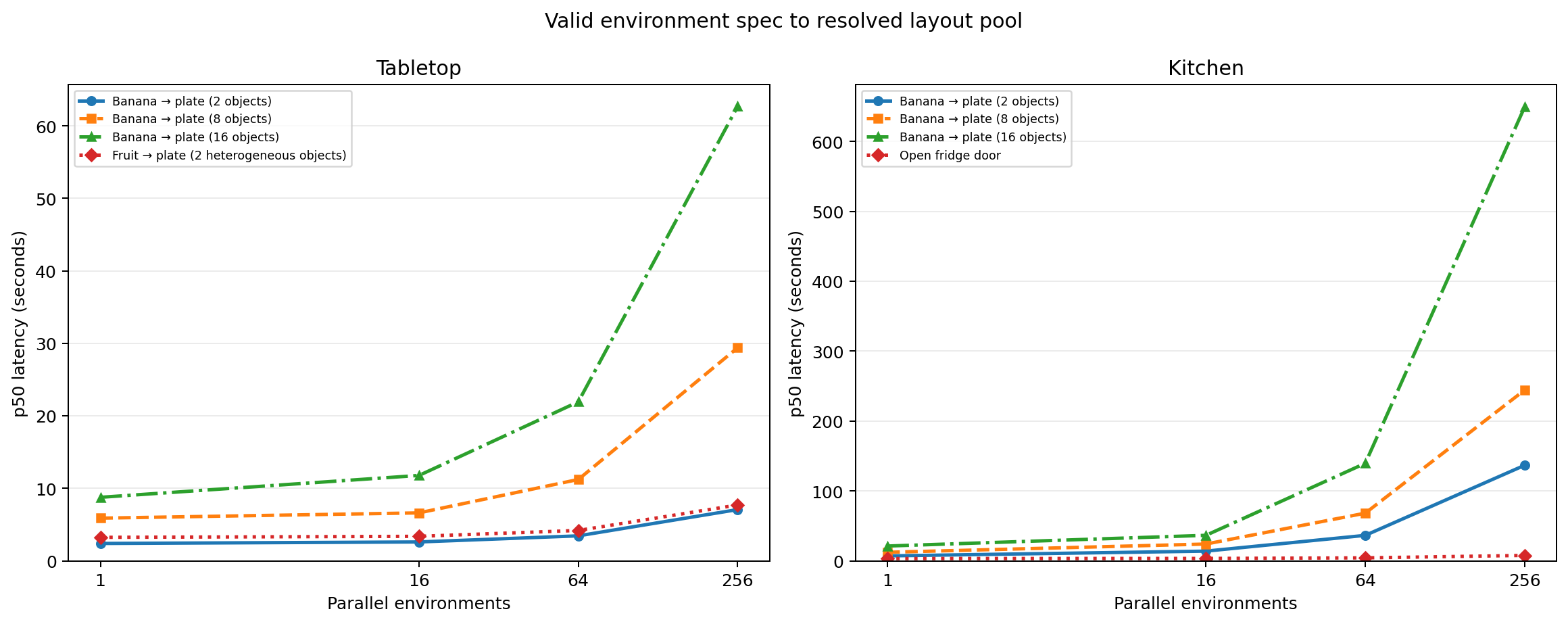

Median valid-spec-to-resolved-layout-pool latency as parallel environment count increases.

Detailed results

Valid-spec-to-resolved-layout results

Environment	Scene	Objects	Heterogeneous	Envs	Layouts	p50 (s)	p95 (s)	p99 (s)
tabletop_banana_plate_distractors_0	Tabletop	2	No	1	5	2.390	3.192	3.527
tabletop_banana_plate_distractors_0	Tabletop	2	No	16	80	2.598	2.957	3.315
tabletop_banana_plate_distractors_0	Tabletop	2	No	64	320	3.441	4.025	4.377
tabletop_banana_plate_distractors_0	Tabletop	2	No	256	1280	7.065	8.606	8.918
tabletop_banana_plate_distractors_6	Tabletop	8	No	1	5	5.882	6.175	6.270
tabletop_banana_plate_distractors_6	Tabletop	8	No	16	80	6.609	7.113	7.558
tabletop_banana_plate_distractors_6	Tabletop	8	No	64	320	11.217	11.759	13.844
tabletop_banana_plate_distractors_6	Tabletop	8	No	256	1280	29.394	31.400	31.907
tabletop_banana_plate_distractors_14	Tabletop	16	No	1	5	8.757	10.257	12.556
tabletop_banana_plate_distractors_14	Tabletop	16	No	16	80	11.775	13.197	15.087
tabletop_banana_plate_distractors_14	Tabletop	16	No	64	320	21.933	23.591	24.842
tabletop_banana_plate_distractors_14	Tabletop	16	No	256	1280	62.691	64.580	65.778
tabletop_heterogeneous_fruit_plate	Tabletop	2	Yes	1	5	3.234	3.834	4.157
tabletop_heterogeneous_fruit_plate	Tabletop	2	Yes	16	80	3.376	3.627	3.779
tabletop_heterogeneous_fruit_plate	Tabletop	2	Yes	64	320	4.186	4.623	5.235
tabletop_heterogeneous_fruit_plate	Tabletop	2	Yes	256	1280	7.696	8.076	9.833
kitchen_banana_plate_distractors_0	Kitchen	2	No	1	5	6.990	7.639	7.957
kitchen_banana_plate_distractors_0	Kitchen	2	No	16	80	13.820	14.357	14.510
kitchen_banana_plate_distractors_0	Kitchen	2	No	64	320	36.388	37.213	37.648
kitchen_banana_plate_distractors_0	Kitchen	2	No	256	1280	136.645	139.830	142.016
kitchen_banana_plate_distractors_6	Kitchen	8	No	1	5	12.148	13.674	17.569
kitchen_banana_plate_distractors_6	Kitchen	8	No	16	80	23.967	24.519	24.774
kitchen_banana_plate_distractors_6	Kitchen	8	No	64	320	68.159	69.435	70.180
kitchen_banana_plate_distractors_6	Kitchen	8	No	256	1280	244.293	248.615	250.726
kitchen_banana_plate_distractors_14	Kitchen	16	No	1	5	21.098	22.358	24.218
kitchen_banana_plate_distractors_14	Kitchen	16	No	16	80	36.449	37.629	39.016
kitchen_banana_plate_distractors_14	Kitchen	16	No	64	320	139.507	142.345	146.770
kitchen_banana_plate_distractors_14	Kitchen	16	No	256	1280	649.275	661.445	679.157
kitchen_open_fridge_door	Kitchen	0	No	1	5	3.234	3.834	4.157
kitchen_open_fridge_door	Kitchen	0	No	16	80	3.376	3.627	3.779
kitchen_open_fridge_door	Kitchen	0	No	64	320	4.186	4.623	5.235
kitchen_open_fridge_door	Kitchen	0	No	256	1280	7.696	8.075	9.833

Tested revisions

• Agentic environment generation benchmark, September 4, 2026: Arena f641fe9df.

• Single-GPU benchmark at 1, 64, and 256 environments, August 27, 2026: Arena b0cd0b38e, Isaac Lab af1bab4dc, and the camera-free benchmark configuration.

• Single-GPU follow-up at 512 and 1,024 environments, September 9, 2026: the same Arena and Isaac Lab revisions and camera-free workload.

• OSMO benchmark, September 6, 2026: Arena 4ee056866, Isaac Lab bb0c8e1b9, and the OSMO benchmark configuration.
