Object and Robot Placement

Motivation

Placement determines the initial poses of objects and, when configured, the robot embodiment in an Arena environment. For a fixed environment, you can set every pose manually. This becomes brittle when the selected assets or their dimensions change.

Suppose you want a microwave on a table with a cracker box next to it. Manual placement requires looking up the table height, measuring both objects, and chaining those dimensions into world coordinates:

# Table surface: z = 0.42 m.
# Microwave: 0.50 m wide and 0.30 m tall.
# Cracker box: 0.064 m wide and 0.212 m tall.
clearance_m = 0.01

microwave_z = 0.42 + 0.30 / 2 + clearance_m
microwave.set_initial_pose(Pose(position_xyz=(0.0, 0.0, microwave_z)))

cracker_box_x = 0.50 / 2 + clearance_m + 0.064 / 2
cracker_box_z = 0.42 + 0.212 / 2 + clearance_m
cracker_box.set_initial_pose(
    Pose(position_xyz=(cracker_box_x, 0.0, cracker_box_z))
)

If the table height or either object’s dimensions change, every dependent coordinate must be recalculated. Relation-based placement instead describes the intended arrangement:

from isaaclab_arena.relations.relations import IsAnchor, NextTo, On, Side

table.add_relation(IsAnchor())
microwave.add_relation(On(table))
cracker_box.add_relation(On(table))
cracker_box.add_relation(
    NextTo(microwave, side=Side.POSITIVE_X, distance_m=0.01)
)

ArenaEnvBuilder collects these relations and prepares candidate layouts during environment compilation. It applies selected layouts when environments are created and reset.

Spatial relations describe the intended layout. Arena optimizes poses against the relations and collision constraints together.

When to Use Placement Relations

Use fixed poses when an Arena environment has one known layout. Use placement relations for assets whose poses should be computed automatically, especially when you need:

• layouts that adapt to different assets or asset dimensions;

• diverse but reproducible layouts across environments and resets;

• collision-aware placement among placed assets and fixed geometry;

• a shared layout description across parallel environments; or

• geometric relation checks and optional physics stability testing.

See pick_and_place_maple_table_environment.py for a complete Python environment definition.

System Overview

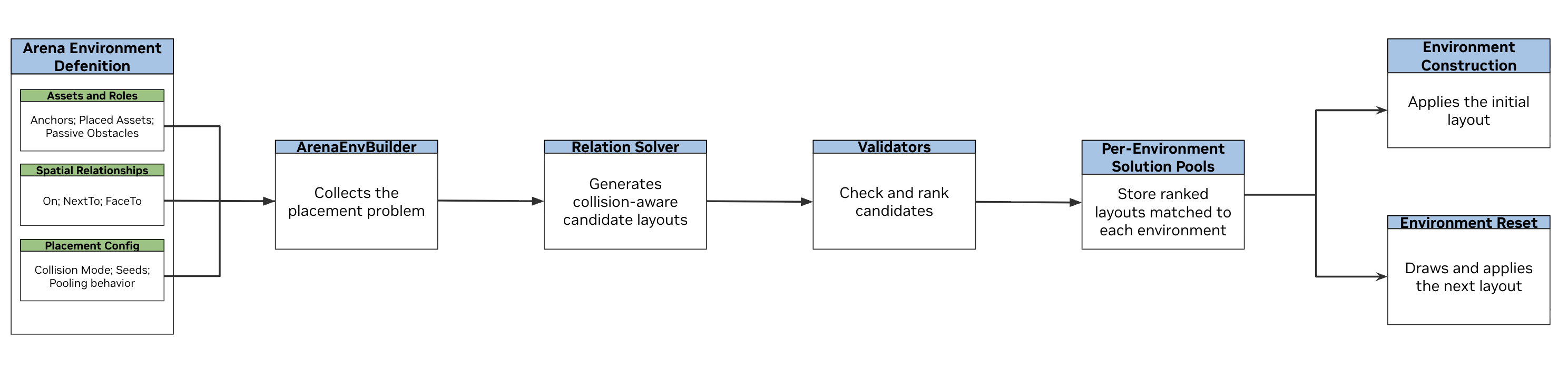

Arena turns one environment definition into layouts for environment creation and resets. The builder collects assets, spatial relations, and placement settings; the solver generates candidate layouts; validators evaluate them; and the placer stores ranked layouts for each environment. Objects and supported robot embodiments use the same pipeline.

Anchors and passive obstacles remain fixed: anchors serve as relation references, while passive obstacles contribute collision geometry. The solver computes poses for placed objects, objects selected from object sets, and supported robot embodiments. Across parallel environments, object identity can be homogeneous or heterogeneous.

Use this table as a reading map:

Topic	What it explains	Read
Environment compilation	How ArenaEnvBuilder turns an Arena environment definition into an Isaac Lab environment configuration	Environment Compilation
Spatial relations and anchors	How to mark fixed references and describe intended positions and orientations	Relations and Strategies
Collision handling and passive obstacles	How overlap is checked among placed assets and fixed geometry using bounding boxes or meshes	Collision Handling
Placement solver and robot embodiments	How candidate poses are generated, including random yaw initialization and robot embodiment placement	Placement Solver
Placement validation	How build-time geometric and reachability checks evaluate candidates, and how in-simulation physics checks evaluate stored layouts	Placement Validation
Pooled placement and reset	How ranked layouts are stored, assigned to environments, reproduced, and refreshed on reset	Pooled Placement
Homogeneous and heterogeneous objects	How the same or different registered objects are represented and placed across parallel environments	Homogeneous and Heterogeneous Object Placement

Try It Out

Run a quick placement example from the repository root. The pick_and_place_maple_table environment already contains a Rubik’s cube and a bowl. The command below adds three registered objects, each with an On(table_reference) relation. The solver computes a collision-aware pose for each one.

Note

Commands using --viz kit require an available graphical display. In a remote or container session, configure display forwarding and set DISPLAY to the active X display, for example export DISPLAY=:1.

python isaaclab_arena/evaluation/policy_runner.py \
  --viz kit \
  --policy_type zero_action \
  --num_steps 100 \
  pick_and_place_maple_table \
  --additional_table_objects cracker_box mug tomato_soup_can

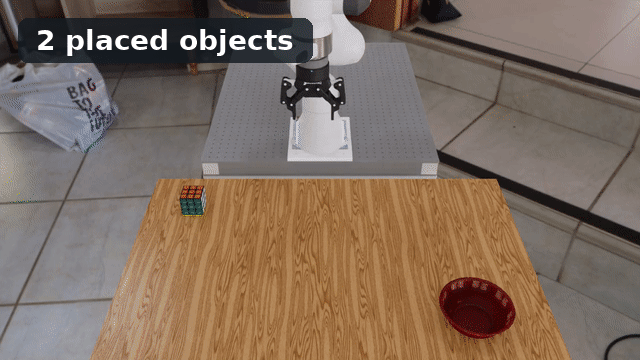

Each run adds registered objects with different dimensions. The solver recomputes a collision-aware layout without manual pose changes.

Replace the names after --additional_table_objects with other registered objects to see placement adapt to different dimensions and footprints.
