Closed-Loop Policy Inference and Evaluation#

This workflow demonstrates running the trained RSL-RL policy in closed-loop and evaluating it in the Lift Object environment.

Docker Container: Base (see Docker Containers for more details)

./docker/run_docker.sh

Once inside the container, set the models directory if you plan to download pre-trained checkpoints:

export MODELS_DIR=models/isaaclab_arena/reinforcement_learning
mkdir -p $MODELS_DIR

Note that this tutorial assumes that you’ve completed the preceding step (Policy Training) and have a trained checkpoint available, or you can download a pre-trained checkpoint as described below.

Download Pre-trained Model (skip preceding steps)

These commands can be used to download a pre-trained RSL-RL policy checkpoint, such that the preceding training step can be skipped.

hf download \
   nvidia/IsaacLab-Arena-Lift-Object-RL \
   model_11999.pt \
   --local-dir $MODELS_DIR/lift_object_checkpoint

After downloading, you can use the checkpoint at:

$MODELS_DIR/lift_object_checkpoint/model_11999.pt

Replace checkpoint paths in the examples below with this path to evaluate the pre-trained model.

Evaluation Methods#

Isaac Lab Arena provides multiple ways to evaluate trained RL policies:

  1. Quick Visualization (play.py): Fast visual inspection of policy behavior

  2. Single Environment Evaluation (policy_runner.py): Detailed evaluation with metrics

  3. Parallel Environment Evaluation (policy_runner.py): Large-scale statistical evaluation

  4. Batch Evaluation (eval_runner.py): Automated evaluation of multiple checkpoints

Method 1: Quick Visualization#

The play.py script provides the fastest way to visually inspect your trained policy. This is useful for debugging and quick quality checks.

python isaaclab_arena/scripts/reinforcement_learning/play.py \
  --env_spacing 30.0 \
  --num_envs 16 \
  --checkpoint logs/rsl_rl/generic_experiment/2026-01-28_17-26-10/model_11999.pt \
  lift_object

Key Features:

  • Fast startup with GUI enabled by default

  • Visualizes policy rollouts in real-time

  • No metrics computation (pure visualization)

  • Useful for debugging policy behavior

Command Arguments:

Argument

Description

--env_spacing 30.0

Larger spacing for visualization (avoids visual clutter)

--num_envs 16

Number of parallel environments to visualize

--checkpoint <path>

Path to the trained model checkpoint (.pt file)

lift_object

Environment name (must be last)

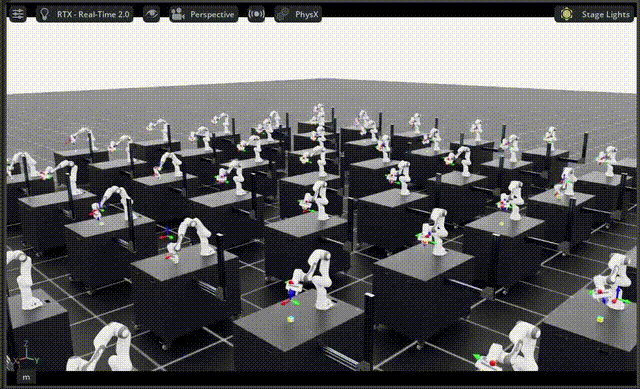

You should see multiple Franka robots simultaneously attempting to lift objects to various target positions.

Method 2: Single Environment Evaluation#

The policy_runner.py provides comprehensive evaluation with task-specific metrics.

python isaaclab_arena/evaluation/policy_runner.py \
  --policy_type rsl_rl \
  --num_steps 1000 \
  --checkpoint_path logs/rsl_rl/generic_experiment/2026-01-28_17-26-10/model_11999.pt \
  lift_object \
  --rl_training_mode False

Note

If you downloaded the pre-trained model from Hugging Face, replace the checkpoint path:

--checkpoint_path $MODELS_DIR/lift_object_checkpoint/model_11999.pt

Important: Argument Order

Policy-specific arguments (--policy_type, --checkpoint_path, etc.) must come before the environment name. Environment-specific arguments (--rl_training_mode, --object, etc.) must come after the environment name.

Command Breakdown:

Argument

Description

--policy_type rsl_rl

Policy type to load (RSL-RL trained policy)

--num_steps 1000

Total simulation steps to run

--checkpoint_path <path>

Path to the model checkpoint

lift_object

Environment name

--rl_training_mode False

Enable success termination for evaluation

Expected Output:

At the end of evaluation, you should see metrics similar to:

Metrics: {'success_rate': 0.85, 'num_episodes': 12}

This indicates that 85% of episodes successfully lifted the object to the target position, across 12 completed episodes in 1000 steps.

Method 3: Parallel Environment Evaluation#

For more statistically significant results, evaluate across many parallel environments:

python isaaclab_arena/evaluation/policy_runner.py \
  --policy_type rsl_rl \
  --num_steps 5000 \
  --num_envs 64 \
  --checkpoint_path logs/rsl_rl/generic_experiment/2026-01-28_17-26-10/model_11999.pt \
  --headless \
  lift_object \
  --rl_training_mode False

Additional Arguments:

Argument

Description

--num_envs 64

Run 64 parallel environments simultaneously

--headless

Run without GUI for faster evaluation

--num_steps 5000

More steps for more episodes

Expected Output:

Metrics: {'success_rate': 0.83, 'num_episodes': 156}

Running more environments and steps provides better statistical estimates of policy performance.

Method 4: Batch Evaluation with JSON Configuration#

For systematic evaluation of multiple checkpoints or hyperparameter sweeps, use eval_runner.py with a JSON configuration file.

1. Create Evaluation Configuration

Create a file eval_config.json:

{
  "policy_runner_args": {
    "policy_type": "rsl_rl",
    "num_steps": 5000,
    "num_envs": 64,
    "headless": true
  },
  "evaluations": [
    {
      "checkpoint_path": "logs/rsl_rl/generic_experiment/2026-01-28_17-26-10/model_5999.pt",
      "environment": "lift_object",
      "environment_args": {
        "rl_training_mode": false
      }
    },
    {
      "checkpoint_path": "logs/rsl_rl/generic_experiment/2026-01-28_17-26-10/model_11999.pt",
      "environment": "lift_object",
      "environment_args": {
        "rl_training_mode": false
      }
    }
  ]
}

2. Run Batch Evaluation

python isaaclab_arena/evaluation/eval_runner.py --config eval_config.json

This will automatically evaluate all checkpoints listed in the configuration and output a summary of metrics for each.

Expected Output:

Evaluating checkpoint 1/2: model_5999.pt
Metrics: {'success_rate': 0.72, 'num_episodes': 152}

Evaluating checkpoint 2/2: model_11999.pt
Metrics: {'success_rate': 0.85, 'num_episodes': 156}

Summary:
========================================
model_5999.pt  | Success: 72% | Episodes: 152
model_11999.pt | Success: 85% | Episodes: 156

Understanding the Metrics#

The Lift Object task reports the following metrics:

Metric

Description

success_rate

Fraction of episodes where object reached target position within tolerance

num_episodes

Total number of episodes completed during evaluation

A well-trained policy should achieve:

  • Success rate: 70-90% (depends on target range difficulty)

  • Consistent performance: Success rate stable across multiple evaluation runs

Troubleshooting#

Issue: Low success rate (<50%)

  • Increase training iterations (try 20,000+)

  • Check reward configuration in task definition

  • Verify command sampling ranges are reasonable

  • Try different random seeds

Issue: Policy gets stuck or drops object

  • Ensure object mass and friction are reasonable

  • Check gripper force limits

  • Visualize with play.py to diagnose behavior

  • Review episode recordings if --video was enabled during training

Issue: “Checkpoint not found” error

  • Verify checkpoint path is correct

  • Use absolute paths if relative paths fail

  • Check that training completed and saved checkpoints

Note

When running evaluation, always set --rl_training_mode False to enable success termination. During training, this flag is True by default to prevent early episode termination.
