Environment Compilation

Environment compilation is the step that turns the three independent components — scene, embodiment, and task — into a runnable Isaac Lab environment. ArenaEnvBuilder does this by collecting the partial configuration each component contributes and merging them into a single ManagerBasedRLEnvCfg.

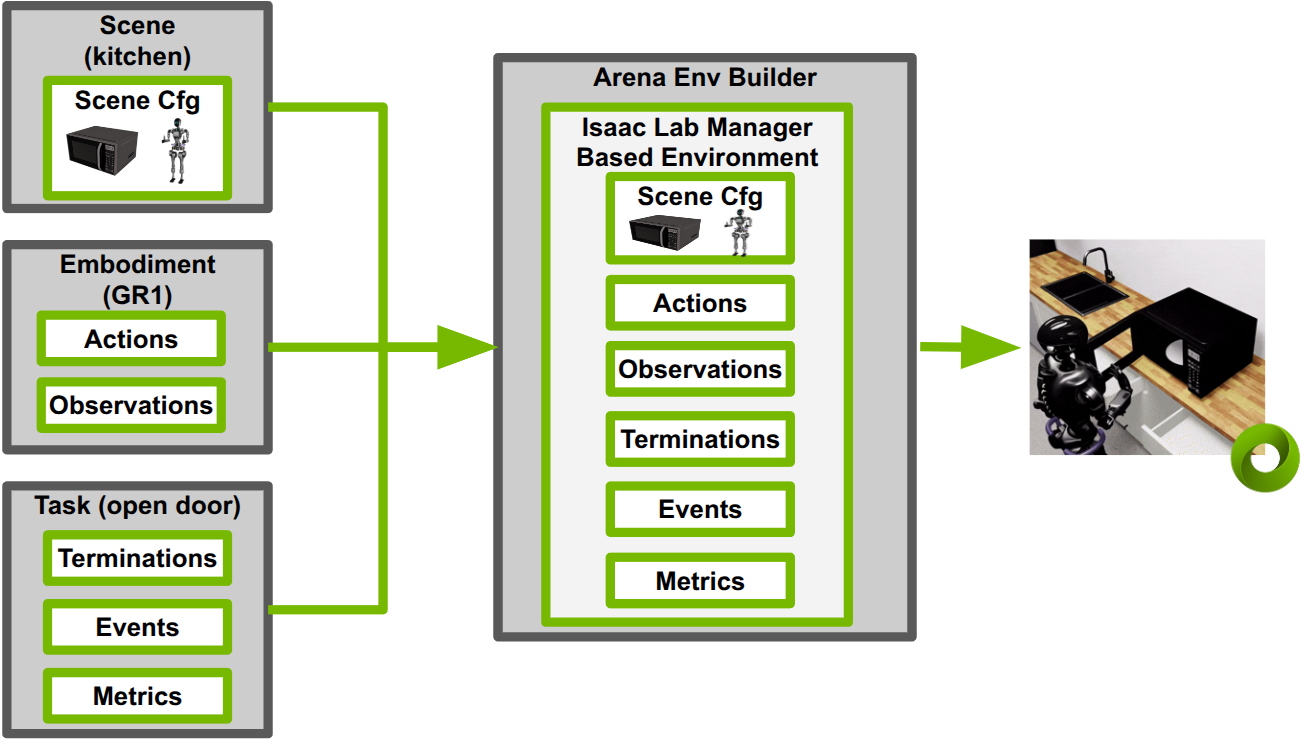

ArenaEnvBuilder merges the Scene, Embodiment, and Task into a runnable ManagerBasedRLEnv.

environment = IsaacLabArenaEnvironment(
    name="manipulation_task",
    embodiment=embodiment,
    scene=scene,
    task=task,
)

env_builder = ArenaEnvBuilder(environment, args_cli)
env = env_builder.make_registered()

How it works

Each component (Scene, Embodiment, Task) exposes a set of get_*_cfg() methods that return its contribution to each Isaac Lab manager. The typical contributions of each component to each manager are tabulated below:

Isaac Lab Manager	Isaac Lab - Arena Component
	Scene	Embodiment	Task
Scene	assets, lights	robot, sensors	task-specific assets
Observations		proprioception, cameras	goal observations
Actions		control interface
Events (resets)	object placement	robot reset	task reset
Terminations			success, failure
Rewards			dense rewards (RL)
Recorder			metrics-required data

ArenaEnvBuilder.compose_manager_cfg() first assembles the partial manager contributions from each component into a set of complete managers. Then it merges these complete managers into a single ManagerBasedRLEnvCfg. The Arena Environment Builder also optionally solves spatial relations between objects (--solve_relations). See Object Placement for more details.

The compiled config is then registered with the gym registry under the environment’s name, and gym.make() returns the gym environment.

Mimic mode

Passing --mimic at the command line compiles a ManagerBasedRLMimicEnv instead of a standard ManagerBasedRLEnv. The mimic environment is used for demonstration generation and includes subtask configurations from the task. Metrics and recorders are excluded in mimic mode.

python isaaclab_arena/scripts/imitation_learning/generate_dataset.py --mimic ...
