Homogeneous and Heterogeneous Object Placement#

These terms describe object identity across parallel environments, not whether the layouts are identical:

  • Homogeneous placement uses the same registered object for a role in every environment. Its solved pose can still differ between environments and resets.

  • Heterogeneous placement uses a RigidObjectSet for a role. Each environment receives one member of the set, so object geometry can differ across environments.

Both modes use the same relations, solver, validators, and layout-pool workflow. They differ in how Arena chooses objects and supplies their geometry to the solver.

Todo

Add a general RigidObjectSet concept page under the asset-object documentation and link it from this placement-specific comparison.

Implementation Differences#

Stage

Homogeneous objects

Heterogeneous objects

Environment definition

Add a registered Object directly.

Add a RigidObjectSet containing the registered objects that can fill the role.

Per-environment assignment

The environment clones one Object definition, so the same USD fills the role in every environment.

Arena selects one set member for each environment at build time, after the environment count is known and before assets are spawned. Ordered sets repeat their member order; sets with random_choice=True sample independently.

Dimensions used by spatial relations

Arena broadcasts the object’s bounding box to every environment.

Arena uses the selected member’s bounding box in each environment.

Construction

Every environment spawns the same USD for that role.

Every environment spawns the USD selected for that environment.

Reset

The object identity stays fixed while the layout may change.

The selected member stays fixed while the layout may change.

These bounding boxes provide object dimensions for spatial relation solving. Collision checks separately use the configured BBOX or MESH representation.

Setting placement_seed makes random object-set assignments and layout generation reproducible. Arena fixes object-set assignments while building the environment and keeps them unchanged for its lifetime so that spawned USDs and the geometry used for placement remain aligned.

Homogeneous Example#

The maintained droid_table_multi_object_placement environment places the same five registered objects on a Maple table in every environment in homogeneous mode. The solver can produce a different layout for each environment and reset.

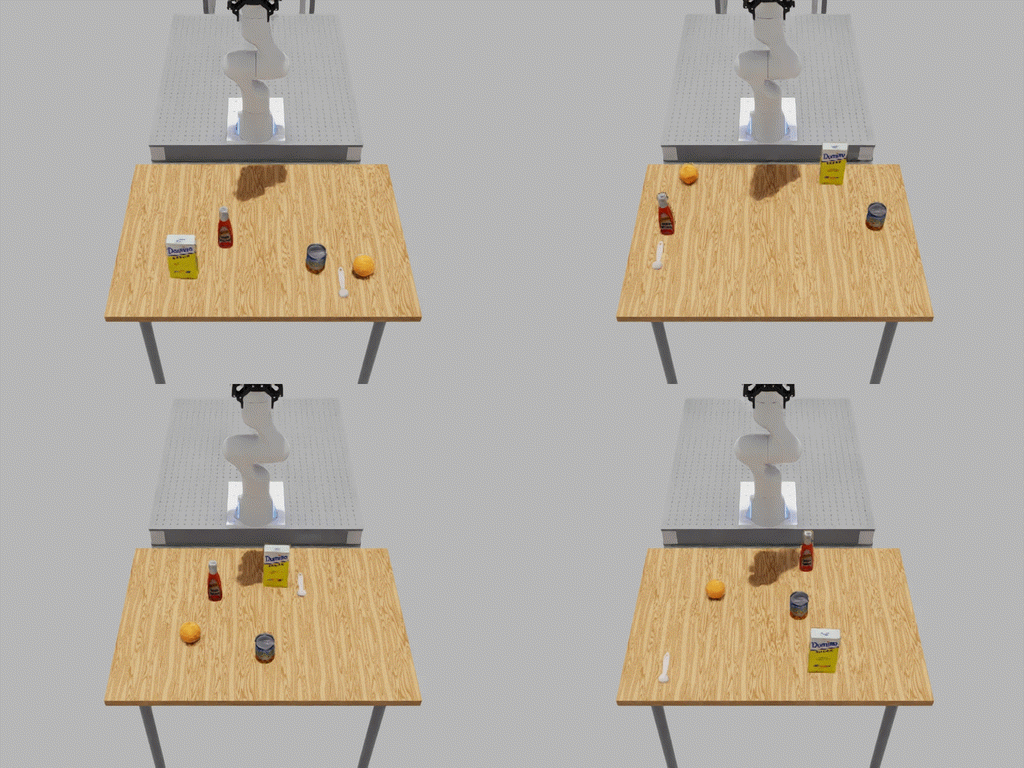

The same objects placed in different layouts across four environments

Run the same registered environment configuration shown in the animation:

python isaaclab_arena/evaluation/policy_runner.py \
  --viz kit \
  --policy_type zero_action \
  --num_envs 4 \
  --env_spacing 3.0 \
  --placement_seed 42 \
  --resolve_on_reset \
  --num_steps 500 \
  droid_table_multi_object_placement \
  --embodiment droid_abs_joint_pos \
  --episode_length_s 4.0 \
  --mode homogeneous

Heterogeneous Example#

The same registered environment uses five object sets in heterogeneous mode. The sets select a fruit, bottle, can, tool, and box for each environment. The solver uses every selected member’s dimensions.

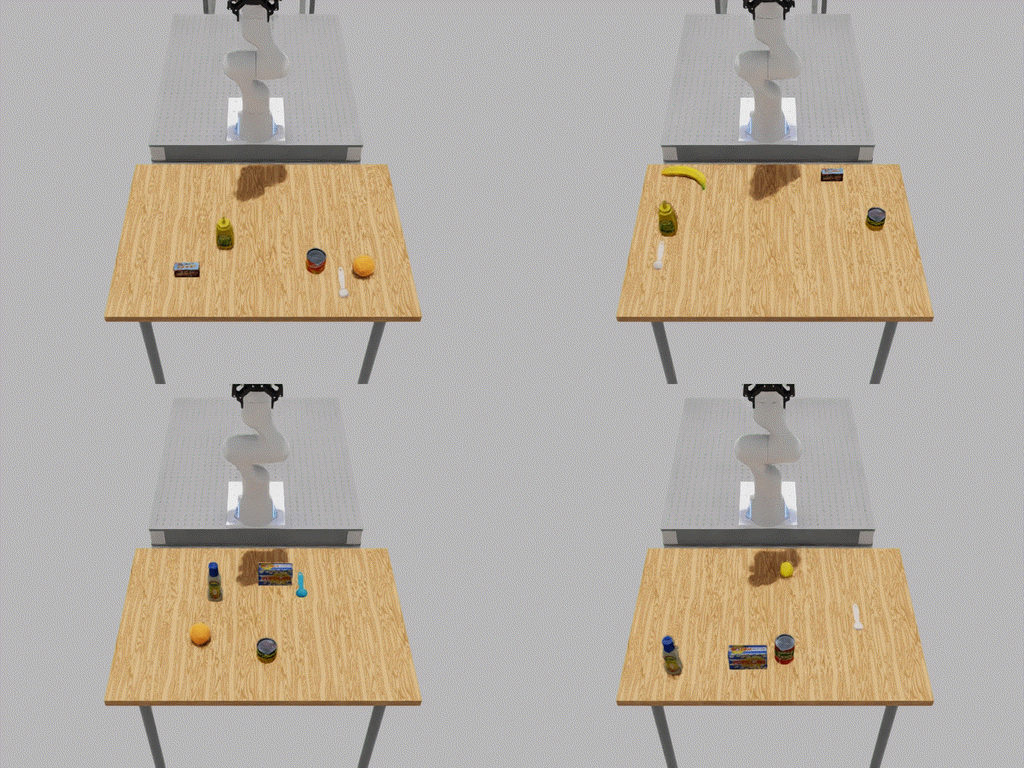

Different object-set members placed across four parallel environments

The environment creates each heterogeneous role from registered variants and attaches the same On relation used for homogeneous objects. Its builder uses:

for set_name, variant_names in HETEROGENEOUS_VARIANT_SETS.items():
    members = self._build_registered_objects(variant_names)
    object_set = RigidObjectSet(name=set_name, objects=members)
    object_set.add_relation(On(table_reference))
    placeable_assets.append(object_set)

Run the heterogeneous configuration shown in the animation:

python isaaclab_arena/evaluation/policy_runner.py \
  --viz kit \
  --policy_type zero_action \
  --num_envs 4 \
  --env_spacing 3.0 \
  --placement_seed 42 \
  --resolve_on_reset \
  --num_steps 500 \
  droid_table_multi_object_placement \
  --embodiment droid_abs_joint_pos \
  --episode_length_s 4.0 \
  --mode heterogeneous

The builder must know num_envs before assigning object-set members. The runner passes this count through --num_envs; use a value greater than one to observe different members across parallel environments.

Important

Do not set an initial pose on an object whose pose is determined by placement relations. The builder supplies its creation and reset poses. Anchors remain fixed and therefore still need a known pose.
