Placement Validation

The solver (Placement Solver) minimizes a continuous loss over relations and collisions. A low loss does not guarantee that a relation holds exactly, that a robot can reach a target, or that a property the loss never encoded is satisfied. Validators are the pass/fail layer on top of that output: each re-checks one property of a solved candidate and reports True/False, independent of the loss value.

The solver asks how to reduce violations; a validator asks whether a specific candidate actually satisfies the property it checks. Validation is also where constraints the solver never optimizes enter the pipeline, for example IK reachability.

How Validation Fits Placement

ObjectPlacer builds its validator list once from every registered check that passes is_available() and survives enabled_checks (see Enabling and Disabling Checks). Each solved batch then runs in two passes:

1. Inexpensive checks (no_overlap, on_relation, clutter_on_relation, next_to, not_next_to, face_to) over every candidate.

2. Expensive checks (ik_reachable) only on candidates that already passed every required inexpensive check.

A PlacementCandidate is one working layout of all placement objects in one environment. It stores the objects’ positions, orientations and bounds, plus the environment ID and sample ID. Solving updates that same candidate’s positions and loss; validation replaces its check results. These stages update the working batch in place and return None.

PlacementCandidateBatch groups these layouts. For example, four environments with ten attempts each produce a batch of forty candidates. Filtering and ranking select and reorder references to complete candidates, keeping their geometry and results together.

PlacementCandidateGenerator samples orientations, fits the bounds to those rotations and places clutter above its support and nearby objects before solving. After solving, ObjectPlacer applies FaceTo headings and refits the bounds. PlacementValidationRunner then replaces each candidate’s check results. Here, expensive means computational cost, such as solving IK. Neither validation pass steps physics.

Verdicts land in each candidate’s PlacementValidationResults. A required check must pass for the candidate to count as valid; an optional (enabled but not required) check still runs and is reported, but does not invalidate the layout. PooledObjectPlacer (Pooled Placement) uses these results to rank candidates and to reject-and-refill until each environment has enough valid layouts. By default, if the final refill batch still has no valid candidate, Arena can store a best-loss layout that failed required checks (allow_best_loss_fallbacks=True); see Pooled Placement.

Pre-physics and offline post-physics validators share the PlacementValidator base for check names and stages. They have separate inputs: solved candidate batches before physics, measured scene state after physics. See Record and Replay Clutter Layouts for offline acceptance checks.

Types of Validators

Check (PlacementCheck)	Stage	Cost	Enabled by default	What it checks
no_overlap	Build-time	Inexpensive	Yes	No two placed bounding boxes (or collision meshes in MESH mode) intersect. See Collision Handling.
on_relation	Build-time	Inexpensive	Yes	Every On relation holds (XY footprint and Z band).
clutter_on_relation	Build-time	Inexpensive	Yes	Every ClutterOn release fits its region and clears its support.
next_to	Build-time	Inexpensive	Yes	Every NextTo relation holds within tolerance.
not_next_to	Build-time	Inexpensive	Yes	Every NotNextTo keep-out zone is cleared within tolerance.
face_to	Build-time	Inexpensive	Yes	Every FaceTo subject has a well-defined facing yaw.
ik_reachable	Build-time	Expensive	When available	cuRobo IK can reach a top-down grasp at every RequiresReachability object.

Geometric and Relation Checks

no_overlap, on_relation, clutter_on_relation, next_to, not_next_to, and face_to are always registered. The first five mirror the corresponding relation’s loss term, so low-loss solver output and validator verdicts stay consistent. face_to is different: FaceTo is applied as a post-solve heading rather than a continuous loss, and the check only verifies that a facing yaw was computed. A check for a relation kind unused in the environment passes trivially.

Set debug_visualize=True (or placer_params.debug_visualize: true in YAML) to inspect candidates in a Rerun viewer:

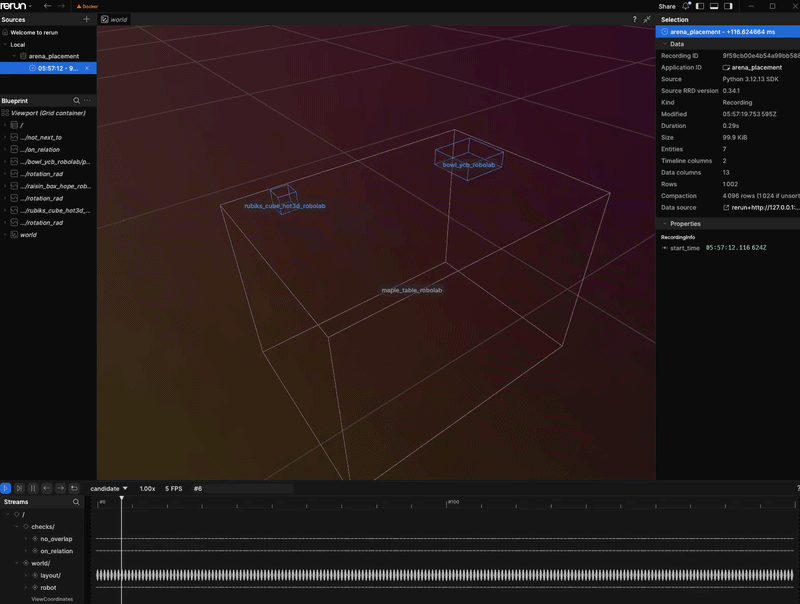

Base debug view: anchors in gray, movable objects in blue. The checks/ stream plots per-candidate pass/fail for the inexpensive geometric checks.

IK Reachability (ik_reachable)

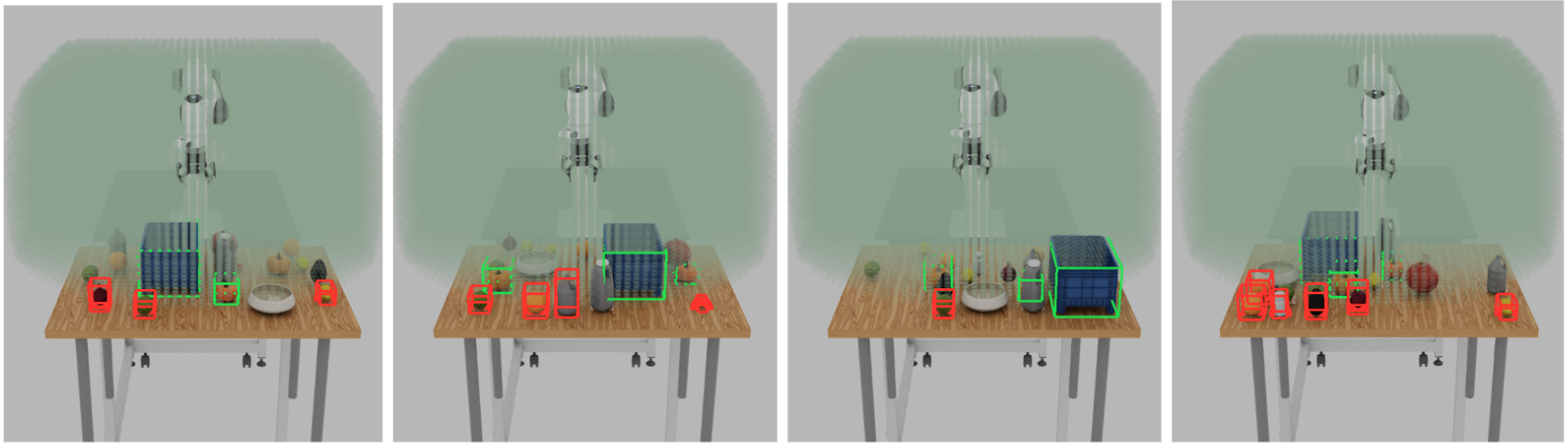

ik_reachable gates only objects marked RequiresReachability (green). Distractors outside the reachable volume may appear red for illustration, but they never reject the layout.

ReachabilityValidator lives in the optional isaaclab_arena_curobo extension. It registers when that package imports successfully and the embodiment has a cuRobo config (e.g. Droid). ArenaEnvBuilder wires the env’s embodiment into reachability_config automatically.

It gates only objects marked RequiresReachability — a relation that tasks such as PickAndPlaceTask stamp automatically. With no such relation, the check passes trivially. Grasp offset and IK tolerances are configurable; see Environment Definition.

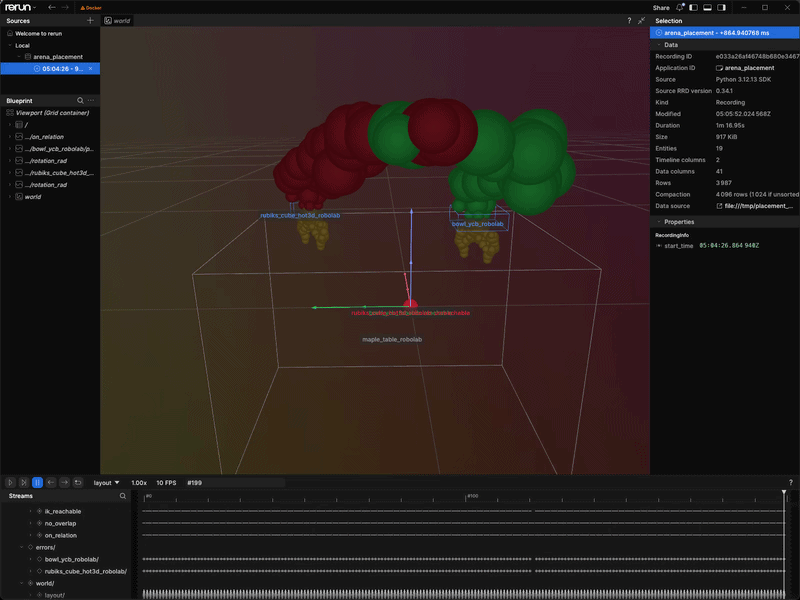

With debug_visualize on, green spheres mark a reachable, collision-free grasp; red marks a failure that rejects the candidate.

Enabling and Disabling Checks

Two concepts control the build-time checks: which checks run (enabled_checks) and, of those, which must pass for a layout to be valid (required_checks). By default every registered check runs and is required — so when cuRobo is available, ik_reachable gates placement automatically. Making a check optional (enabled but not required) keeps it running and reported without rejecting layouts, which is the usual way to keep placement geometry-only.

Both are set on ObjectPlacerParams in Python or the placer_params block in YAML; see Environment Definition.

Post-Physics Checks for Recordings

The placement recorder advances physics for settle.num_steps environment steps before checking the final state.

All required solver checks and enabled, applicable post-physics checks must pass. The post-physics checks share one settling pass:

Check	Measures	Default limit
physics_settled	Final linear and angular speed of every root, including the robot.	0.1 m/s and 0.1 rad/s
pose_shift	Initial-to-final root translation and rotation, excluding intentional ClutterOn drops.	2 mm and 2 degrees
articulation_link_shift	Task-object link motion relative to its root, excluding robot embodiments.	2 mm and 2 degrees
support_containment	Final clutter bounds relative to the support footprint and minimum resting height.	No overhang; 1 cm below the minimum height

Configure a limit with settle.validators.<check>.<setting>=<value>. An inapplicable or disabled check is recorded as skipped. At least one applicable post-physics check must remain enabled.

Clutter Recording Checks

Scenes using ClutterOn automatically include support_containment. The clutter objects must be dynamic rigid bodies with gravity enabled. Their supports must be fixed anchors with upright quarter-turn orientations. Resolve other placement relations to fixed anchors before collecting clutter layouts.

Flat supports use their verified top surface as the minimum resting height. Containers need an explicit local-Z height so objects can settle below the rim:

+settle.validators.support_containment.minimum_resting_heights_m.bowl=-0.025

The key is the support’s runtime scene name. The value is measured in metres in the scaled support-local frame before world translation and must lie within the support’s local Z bounds. For kinematic_bowl_ycb_robolab, -0.025 is approximately the inner floor.

Containment compares bounding-box footprints and heights. It does not establish exact containment inside curved walls or detect every object-wall penetration. Release candidates must also pass no_overlap and clutter_on_relation. ClutterOn objects cannot require reachability because settling changes the poses checked by the solver.

Understand the Rejection Summary

The recorder excludes rejected layouts and prints each rejection reason. If max_batches is exhausted before min_layouts is reached, any accepted layouts are still written and the command logs the shortfall. No file is written when no layouts pass.

Each Rejected line gives a reason and the number of layouts rejected for it. When a pose-shift limit is exceeded, the message includes the object, measured translation and rotation, and configured limits. Use the named check to decide what to adjust:

Rejection	Meaning	What to check or change
solver validation failed	A layout failed a required solver check.	Read earlier solver diagnostics and check relation constraints and collision geometry. Increasing settling time cannot fix a solver failure.
physics_settled	Final root velocity is too high.	Inspect contacts and support. Increase settle.num_steps if motion is still decaying. More time will not fix an unstable placement.
pose_shift	A non-clutter root moved or rotated beyond its limits.	Inspect the named object. For On relations, reduce clearance_m to reduce the release drop, or increase edge_margin_m to avoid support edges. Edit the relation’s params in the environment’s scene YAML.
articulation_link_shift	A task-object link shifted relative to its root.	Check joint initialization and contacts. Root-pose replay cannot restore the changed joint configuration.
support_containment	Settled clutter fell off, fell through or left the support footprint.	Check support geometry, the configured minimum resting height and the containment margin.
missing required solver checks	A required pre-physics result is unavailable.	Enable the required validator or fix its dependencies and source configuration.

See Relations and Strategies for relation settings. Change validation limits under settle.validators only when the new tolerance fits your evaluation. Increasing max_batches allows more attempts without changing which checks layouts must pass.

Custom Validators

Pre-Physics Validators

Pre-physics validators check the solver’s proposed layout before physics is advanced. Subclass PrePhysicsPlacementValidator and register a unique check name which should be included in ObjectPlacerParams.enabled_checks. Return one boolean per candidate, in batch order. For example, reject layouts with any object origin above 1.5 metres:

from isaaclab_arena.relations.validation.pre_physics import PrePhysicsPlacementValidator
from isaaclab_arena.relations.validation.registry import register_validator

@register_validator
class MaxOriginHeightValidator(PrePhysicsPlacementValidator):
    check = "max_origin_height"

    def validate_batch(self, batch, collision_objects):
        verdicts = []
        for candidate in batch.candidates:
            below_limit = all(
                position[2] <= 1.5 for position in candidate.positions.values()
            )
            verdicts.append(below_limit)
        return verdicts

Import the module defining this class before constructing ObjectPlacer. Default settings run and require the registered check. If enabled_checks is explicit, include "max_origin_height" to run it.

Post-Physics Validators

Subclass PostPhysicsPlacementValidator to check captured measurements after settling. Return one report per entry in batch.env_ids, in the same order. self.report includes the validator’s settings, verdict and rejection reason.

Save this example as placement_validators.py in the repository root. It checks the final height of every recorded root, including the robot, in metres relative to the local environment origin:

import math
from dataclasses import dataclass
from typing import ClassVar

from isaaclab_arena.offline_placement.post_physics_validation import (
    PostPhysicsPlacementValidator,
)
from isaaclab_arena.offline_placement.settled_batch import SettledBatch
from isaaclab_arena.relations.validation.types import PlacementValidatorReport

@dataclass
class MaxRootHeightValidator(PostPhysicsPlacementValidator):
    check: ClassVar[str] = "max_root_height"
    max_height_m: float = 1.5
    """Maximum final root height in the local environment frame, in metres."""

    def validate(self, batch: SettledBatch) -> list[PlacementValidatorReport]:
        reports = []
        for env_id in batch.env_ids:
            reason = ""
            for key, poses in batch.final_root_poses.items():
                height_m = poses[env_id, 2].item()
                if not math.isfinite(height_m) or height_m > self.max_height_m:
                    reason = (
                        f"{key}: final root height {height_m:g} m; "
                        f"limit {self.max_height_m:g} m"
                    )
                    break
            reports.append(self.report(passed=not bool(reason), reason=reason))
        return reports

Run the recorder from the repository root, adding that directory to PYTHONPATH so Hydra can import the module:

PYTHONPATH="$PWD${PYTHONPATH:+:$PYTHONPATH}" \
python isaaclab_arena/scripts/record_placement_layouts.py \
    env_spec=isaaclab_arena_environments/robolab/tasks/clamp_in_right_bin.yaml \
    output=outputs/placements/clamp_custom.jsonl \
    num_envs=4 env_spacing=2 min_layouts=16 max_batches=5 seed=42 \
    settle.num_steps=120 \
    settle.validators.pose_shift.max_translation_m=0.015 \
    +settle.validators.max_root_height._target_=placement_validators.MaxRootHeightValidator \
    +settle.validators.max_root_height.max_height_m=1.5 \
    render=false --device cpu --viz none

The configuration key (max_root_height) must match the class’s check name. Hydra loads post-physics validators through _target_; no @register_validator decorator is needed. This command adds the custom check alongside the default checks. Every enabled, applicable check must pass for a layout to be recorded.

Next Steps

Continue to Pooled Placement for how Arena ranks, stores, and reuses layouts that pass these checks.
