Newton Manager Abstraction

Newton Manager Abstraction#

Newton exposes multiple solver families, and Isaac Lab keeps that flexibility by making each solver an implementation detail of a small NewtonManager subclass. The simulation context still sees a normal physics manager; the solver configuration decides which manager class is used.

For most new Newton solvers, the integration surface is intentionally small:

  • define a solver config that inherits from NewtonSolverCfg;

  • point the config’s class_type at a manager subclass;

  • implement _build_solver() in that manager;

  • set the three base-manager slots: _solver, _use_single_state, and _needs_collision_pipeline.

The existing MuJoCo Warp, XPBD, Featherstone, and Kamino managers are examples of this pattern.

Adding a Solver Manager#

The solver config carries both user-tunable solver parameters and the manager dispatch target:

from isaaclab_newton.physics import NewtonManager, NewtonSolverCfg
from isaaclab.utils.configclass import configclass


@configclass
class MySolverCfg(NewtonSolverCfg):
    class_type: type[NewtonManager] | str = "{DIR}.my_solver_manager:NewtonMySolverManager"
    solver_type: str = "my_solver"
    iterations: int = 16

NewtonCfg copies solver_cfg.class_type into its own class_type in __post_init__. User code keeps the normal shape:

from isaaclab.sim import SimulationCfg
from isaaclab_newton.physics import NewtonCfg

sim_cfg = SimulationCfg(
    physics=NewtonCfg(
        solver_cfg=MySolverCfg(iterations=32),
        num_substeps=2,
    )
)

The manager then owns solver construction:

from newton import Model
from newton.solvers import SolverMySolver

from isaaclab_newton.physics import NewtonManager


class NewtonMySolverManager(NewtonManager):
    @classmethod
    def _build_solver(cls, model: Model, solver_cfg: MySolverCfg) -> None:
        NewtonManager._solver = SolverMySolver(model, iterations=solver_cfg.iterations)
        NewtonManager._use_single_state = False
        NewtonManager._needs_collision_pipeline = True

_use_single_state tells the base manager whether the solver advances in place or swaps input/output states. _needs_collision_pipeline tells the base manager whether to allocate and pass Newton collision-pipeline contacts to the solver. A solver with its own internal contact detector can set it to False.

Optional Overrides#

Most managers only implement _build_solver(). Override more only when the solver actually needs it:

  • _initialize_contacts(): allocate custom contact buffers or support an internal contact detector.

  • _step_solver(state_0, state_1, control, contacts, substep_dt): change one substep of solver execution while keeping the base simulation loop.

  • _simulate_physics_only(): add per-step work around the base substep loop, such as rebuilding a BVH.

  • _reset_solver_internals(world_mask): clear solver-owned state for reset environments.

  • start_simulation() or instantiate_builder_from_stage(): customize model building or post-finalize setup.

  • _register_builder_attributes(builder): register solver-specific Newton custom attributes (particle, shape, body) on the builder before particles or finalize run. The active manager class invokes this hook from create_builder(), start_simulation(), and instantiate_builder_from_stage(). NewtonMPMManager is the in-tree example — it registers mpm:young_modulus and the rest of the implicit MPM particle attributes.

  • _prepare_builder_for_finalize(builder): normalize imported or replicated builder data right before ModelBuilder.finalize(). NewtonMPMManager uses this to clear mass and inertia on kinematic bodies so implicit MPM treats them as massless colliders.

  • _supports_cuda_graph_capture(): return False to opt the solver out of CUDA graph capture and fall back to eager execution. Defaults to True; NewtonMPMManager accepts fixed and capacity-bounded rebuildable sparse grids.

  • _requires_initial_reset_before_graph_capture(): delay headless CUDA graph capture until the first post-reset step when solver resources depend on reset-authored state.

  • _solver_specific_clear(): release any class-level state owned by the solver manager.

For implicit MPM, use a fixed grid or follow Newton’s rebuildable-sparse capture requirements, including a positive max_active_cell_count. Dense and unbounded sparse grids fall back to eager execution with a warning when NewtonCfg.use_cuda_graph is enabled.

Keep the manager name prefixed with Newton and the solver config grouped with the other Newton solver configs so autocomplete and backend discovery stay predictable.

Custom Coupled Solvers#

Coupled solvers use the same abstraction. Instead of wrapping one Newton solver, a coupled manager constructs two or more sub-solvers and overrides _step_solver() to define the substep order. That means a custom coupling usually needs only a config that stores existing solver configs plus a manager that defines how data flows between them; the component solvers can stay unchanged.

The MJWarp + VBD deformable manager is a concrete example:

  • CoupledMJWarpVBDSolverCfg stores a rigid_solver_cfg for MJWarpSolverCfg, a soft_solver_cfg for VBDSolverCfg, and a coupling_mode.

  • NewtonCoupledMJWarpVBDManager._build_solver() constructs SolverMuJoCo and SolverVBD from those sub-configs.

  • _step_solver() dispatches to either one-way or two-way coupling.

  • _reset_solver_internals() and _solver_specific_clear() forward the solver-specific lifecycle to both sub-solvers.

  • The base NewtonManager still owns state allocation, substep iteration, Fabric synchronization, and the outer lifecycle.

The two-way MJWarp + VBD substep stays compact because it is expressed as a short coupling algorithm:

Algorithm: Two-Way MJWarp + VBD Substep

Inputs: rigid body state, deformable particle state, and the shared Newton collision pipeline.

Output: updated rigid body and deformable particle state for one Newton substep.

  1. Clear output force accumulators. Clear the next-state force buffers before evaluating contact.

  2. Detect coupled contacts. Run Newton collision detection once over the current rigid and deformable state.

  3. Apply soft-to-rigid reactions. Inject body-particle contact reactions into body_f before the rigid solve.

  4. Advance the rigid solver. Step MJWarp with the coupled contact forces applied.

  5. Advance the deformable solver. Step VBD against the same contacts and the updated rigid poses.

This keeps the custom part focused on the coupling policy. The manager does not need to reimplement scene loading, asset buffers, or the outer simulation loop.

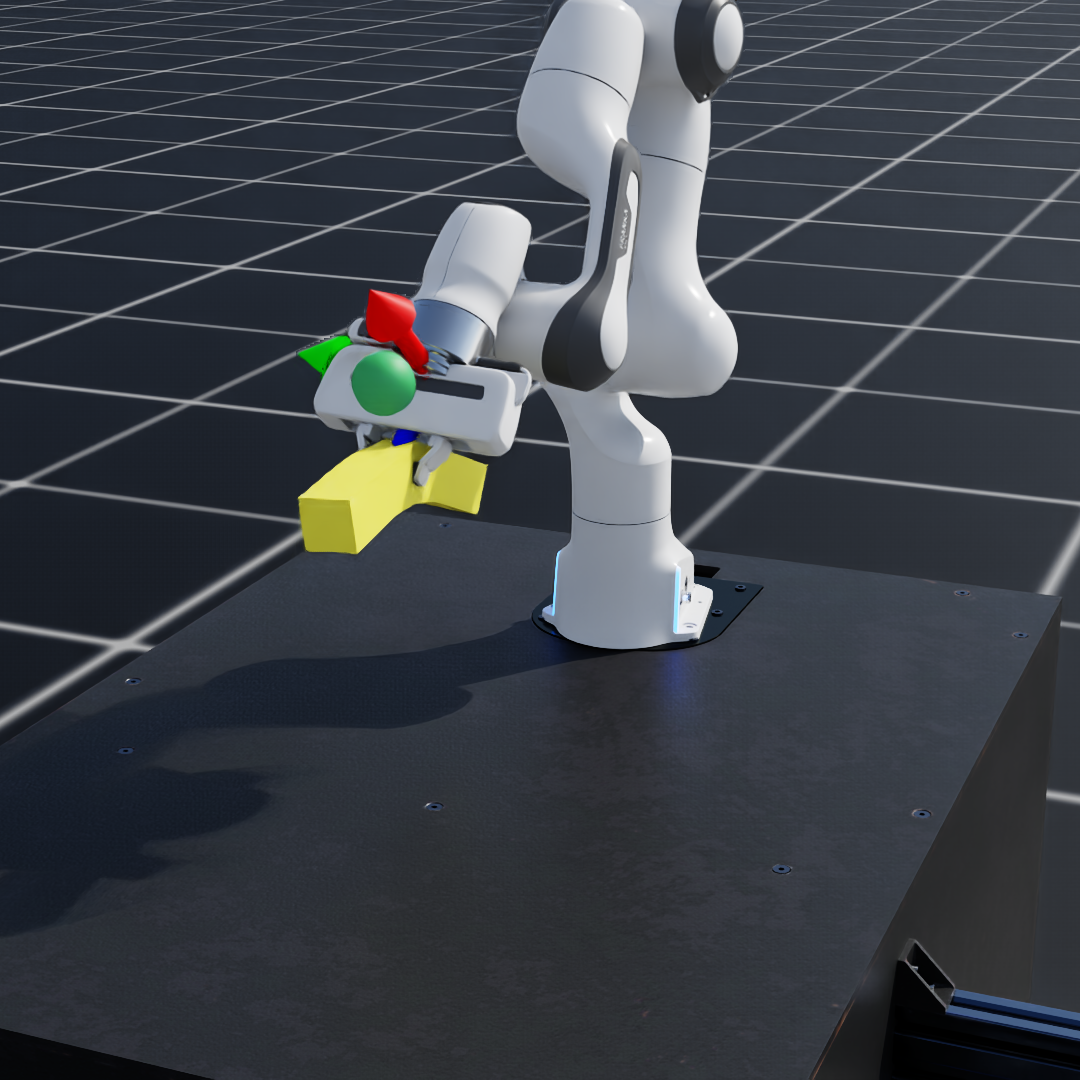

Franka manipulating a deformable object with MJWarp and VBD coupling

Franka manipulation using MJWarp for rigid bodies and VBD for the deformable object.#

Note

This volume soft-body task requires automatic tetrahedralization. Install its optional dependencies before running it:

uv sync --inexact --extra tetrahedralization

With the legacy installer:

./isaaclab.sh -i tetrahedralization

The opt-in example is registered only when its registration module is imported:

import isaaclab_contrib.custom_coupling.tasks

The import registers IsaacContrib-Lift-Soft-Franka-Custom-Coupling, which selects the newton_mjwarp_vbd preset and uses coupling_mode="two_way". The core Isaac-Lift-Soft-Franka and Isaac-Lift-Cloth-Franka tasks default to the newton_mjwarp_vbd_proxy preset backed by CouplerProxyCfg instead.

Tuning the Franka Soft-Body Lift#

Tune the coupled contact behavior before training a policy:

  • Start with coupling_mode="two_way". Compared with one-way coupling, two-way coupling can prevent clipping more easily because body-particle contact penalties can push the robot back instead of only moving the deformable.

  • Use a small scripted grasp/lift check before training to confirm that grasping is possible and to inspect what clips when the grasp fails.

  • Lower the arm actuator stiffness enough that the arm can respond to contact penalties. Prefer the arm being pushed back over the gripper clipping into the deformable.

  • Tune soft_contact_ke first. Increase it only as much as needed to prevent clipping, then adjust soft_contact_mu so the gripper can carry the object without requiring an obviously unphysical friction value. Use soft_contact_kd for stabilization if contacts chatter. Set this configuration on the outer soft_contact_cfg field.

  • Tune the soft_contact_* values together with the rigid shape contact material, because the shape’s ke/kd/mu also affect the effective contact. Set shape defaults via NewtonShapeCfg on NewtonCfg.default_shape_cfg, or override per asset through the asset’s Newton contact material.

  • If soft_contact_ke is not sufficient, or soft_contact_mu must be unphysically high, tune the Franka arm and hand actuator stiffness and maximum effort. For the gripper command, fully close the fingers and let the actuator maximum effort limit the actual squeeze.

  • If the deformable no longer visibly deforms, soft_contact_ke is likely too high.

  • If contacts are unstable or missed, increase the deformable mesh resolution or increase particle_radius in the deformable material so contact is detected earlier from a larger distance.

  • If the rigid shapes still clip through the deformable, increase iterations; more VBD iterations can improve contact convergence.

When to Add a Coupled Manager#

Add a coupled manager when one solver cannot own the whole model step by itself:

  • rigid bodies should use one solver while particles or cloth use another;

  • contact detection is shared, but each solver consumes the contacts differently;

  • you need a custom force, impulse, or state exchange between solvers;

  • the substep order is part of the algorithm.

Use a normal single-solver manager when all physics can be advanced by one Newton solver. Use a coupled manager only for the small amount of glue that is truly solver-specific.
