Quickstart

Quickstart#

This page takes you from a fresh checkout to training, replaying, and inspecting your first task. For prerequisites, see System requirements. Run all commands from the Isaac Lab repository root with uv run. uv creates and manages the project environment for you.

Install and run your first task#

Install uv, clone Isaac Lab, and enter the repository:

curl -LsSf https://astral.sh/uv/install.sh | sh
git clone https://github.com/isaac-sim/IsaacLab.git
cd IsaacLab

Train Cartpole with the Newton MJWarp physics backend and open the Newton visualizer:

uv run isaaclab train --task Isaac-Cartpole --num_envs 16 --viz newton

Training outputs, including checkpoints, are saved under logs/. Add --help to any command to see its available arguments:

uv run isaaclab train --help

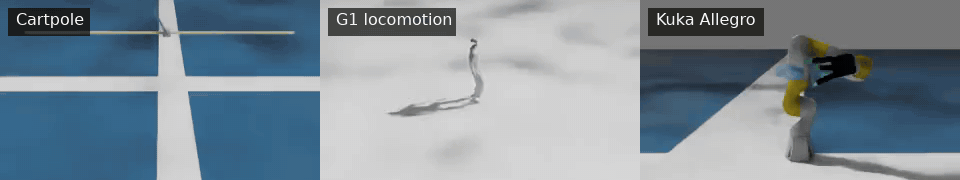

Cartpole, G1 locomotion, and Kuka Allegro manipulation tasks running side by side — The same train and play workflow applies across classic control, locomotion, and manipulation tasks.#

Hint

uv run installs the core dependencies automatically. To use an optional integration, add --extra <name> before isaaclab. You can enable multiple extras with a comma-separated list. For example:

uv run --extra ovphysx isaaclab train --task Isaac-Cartpole physics=ovphysx

Extras make optional capabilities available; task selectors choose which capabilities the task uses For example, --extra ovphysx makes the OV PhysX integration available, while physics=ovphysx selects it for the task. You can combine extras as needed. The --extra all shortcut installs the curated ov, rl-games, sb3, skrl, rsl-rl, rerun, and viser extras. Isaac Sim, standalone importers, and specialized extras such as rlinf, mimic, teleop, tetrahedralization, video, and leapp are not included; add them explicitly. See Optional extras for the complete list.

Choose an RL library#

Pass --rl_library to train or play to choose the RL framework. If you omit it, Isaac Lab uses the default registered for the task. Most core tasks default to rsl_rl, which is included in the standard uv run environment and is a good starting point for GPU-based training.

`rsl_rl`	Fast GPU training and policy distillation	`uv run isaaclab train --rl_library rsl_rl ...`
`rl_games`	PPO, SAC, and A2C workflows	`uv run --extra rl-games isaaclab train --rl_library rl_games ...`
`skrl`	Broad algorithm support with PyTorch and JAX	`uv run --extra skrl isaaclab train --rl_library skrl ...`
`sb3`	Stable-Baselines3 and CPU-oriented experiments	`uv run --extra sb3 isaaclab train --rl_library sb3 ...`
`rlinf`	VLA model fine-tuning	`uv run --extra rlinf isaaclab train --rl_library rlinf ...`

RL libraries differ in their supported algorithms, tasks, and workflows. See Reinforcement Learning Library Comparison for a detailed comparison.

The five commands to know#

All task commands accept --task <task_name>. Start by listing the registered tasks:

uv run python scripts/environments/list_envs.py

Command	Use it to	Example
`train`	Train a policy with an RL library.	`uv run isaaclab train --task Isaac-Cartpole`
`play`	Run a trained policy from a checkpoint.	`uv run isaaclab play --task Isaac-Cartpole --checkpoint latest`
`zero_agent`	Run a task with zero actions to verify that it launches correctly.	`uv run isaaclab zero_agent --task Isaac-Cartpole --viz newton`
`random_agent`	Run a task with random actions for a quick interaction smoke test.	`uv run isaaclab random_agent --task Isaac-Cartpole --viz newton`
`benchmark`	Measure environment, training, play, or startup performance.	`uv run isaaclab benchmark runtime --task Isaac-Cartpole`

All supported RL libraries use --checkpoint to choose a checkpoint for playback. See Reinforcement Learning Workflows for the complete training and playback reference.

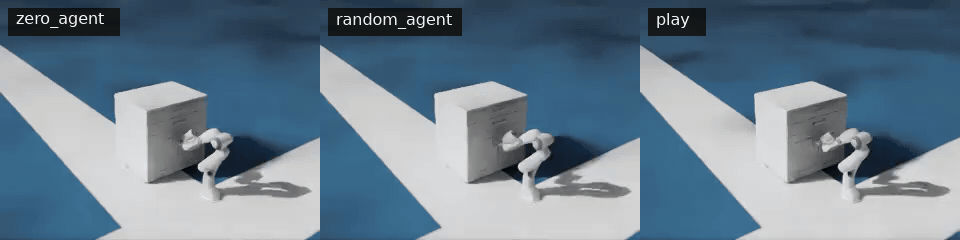

A Franka drawer-opening task controlled by the zero agent, random agent, and a trained policy side by side — On the same Franka drawer-opening task, `zero_agent` applies no control, `random_agent` samples actions, and `play` runs a trained policy from a checkpoint.#

Choose a backend#

Isaac Lab supports multiple physics and rendering backends. Use physics=<backend> to choose the physics implementation. For camera tasks, use renderer=<backend> to choose the renderer. Available backends depend on the task configuration. Use the task’s help output to see its supported selectors:

uv run isaaclab train --task Isaac-Cartpole --help

Selector	Backend	Required extra
`physics=newton_mjwarp`	Newton with the MuJoCo-Warp solver.	None
`physics=newton_kamino`	Newton with the Kamino solver. This backend is beta and supports a limited set of tasks.	None
`physics=ovphysx`	OV PhysX.	`ov` or `ovphysx`
`physics=isaacsim_physx`	Isaac Sim PhysX.	`isaacsim`
`renderer=newton_renderer`	Newton Warp renderer.	None
`renderer=ovrtx`	OV RTX renderer.	`ov` or `ovrtx`
`renderer=isaacsim_rtx`	Isaac Sim RTX renderer.	`isaacsim`
`renderer=rtx`	Automatic RTX renderer selection.	`isaacsim` or `ovrtx`

Use presets=<name> to apply a task-specific configuration preset. For example:

uv run isaaclab train --task Isaac-Cartpole-Camera physics=newton_mjwarp renderer=newton_renderer presets=rgb

See Backends and Presets for backend and preset selection, and Hydra Configuration System for arbitrary configuration overrides.

Visualize a task#

Use --viz (or --visualizer) to choose one or more visualizers during training or playback. To use multiple visualizers, pass a comma-separated list without spaces, such as --viz newton,rerun.

Option	Use it to	Required extra
`--viz newton`	Open the Newton visualizer.	None
`--viz rerun`	Stream the task to the Rerun visualizer.	`rerun`
`--viz viser`	Open the web-based Viser visualizer, useful for remote connections.	`viser`
`--viz kit`	Open the Kit visualizer when it is available in your environment.	`isaacsim`
Omit `--viz` or use `--viz none`	Run without a visualizer.	None

For example, open the same task in both Newton and Rerun:

uv run --extra rerun isaaclab random_agent --task Isaac-Cartpole \
   physics=newton_mjwarp --viz newton,rerun

See Visualization for visualizer setup and configuration.

Play a trained policy#

First, train Cartpole to create a checkpoint:

uv run isaaclab train --task Isaac-Cartpole

Then play the latest checkpoint in the Newton visualizer:

uv run isaaclab play --task Isaac-Cartpole --checkpoint latest --viz newton

Choose a checkpoint with one of the following options:

Option	Loads
`--checkpoint <path>`	A checkpoint file at the specified local path. Some libraries also accept a run directory.
`--checkpoint best`	The library-specific best or final checkpoint. Falls back to `latest` if no separate best or final checkpoint was saved.
`--checkpoint latest`	The highest-step checkpoint from the newest compatible run.
`--checkpoint pretrained`	A pretrained checkpoint hosted by Isaac Lab. Available only for supported tasks.

Benchmark a task#

isaaclab benchmark takes a workflow name as its first argument. Start with runtime to measure environment-step capacity without a policy:

uv run isaaclab benchmark runtime --task Isaac-Cartpole

Workflow	Measures
`runtime`	Environment-step capacity with random actions (no policy).
`startup`	Launch, import, configuration, scene creation, and first-step latency.
`training`	End-to-end learning throughput. Requires `--rl_library`.
`play`	Trained-policy rollout throughput. Requires `--rl_library` and `--checkpoint`.
`-multigpu`	Run `startup`, `runtime`, or `training` across multiple GPUs by adding the suffix `-multigpu`. For example, `runtime-multigpu`.

See Benchmarking Isaac Lab for warm-up, formatters, multi-GPU details, and how to read results.

Next steps#

Browse registered environments and build a command: Environments
Learn how backends and presets fit together: Backends and Presets
Learn how to override task configuration: Hydra Configuration System
Follow a guided environment-building tutorial: Tutorials
Read the installation options and troubleshooting guide: Installation
