Visualization

Isaac Lab offers several lightweight visualizers for real-time simulation inspection and debugging. Unlike renderers that process sensor data, visualizers are meant for fast, interactive feedback.

You can use any visualizer regardless of your chosen physics engine or rendering backend.

Overview

Isaac Lab supports four visualizer backends, each optimized for different use cases:

Visualizer Comparison

Visualizer	Best For	Key Features
Omniverse	High-fidelity, Isaac Sim integration	USD, visualization markers, live plots
Newton	Fast iteration	Low overhead, visualization markers
Rerun	Remote viewing, replay	Webviewer, time scrubbing, recording export, visualization markers
Viser	Web-based remote visualization, sharing, recording	Warp-based rendering, browser-based, share URL, visualization markers

The following visualizers are shown training the Isaac-Velocity-Flat-Anymal-D-v0 environment.

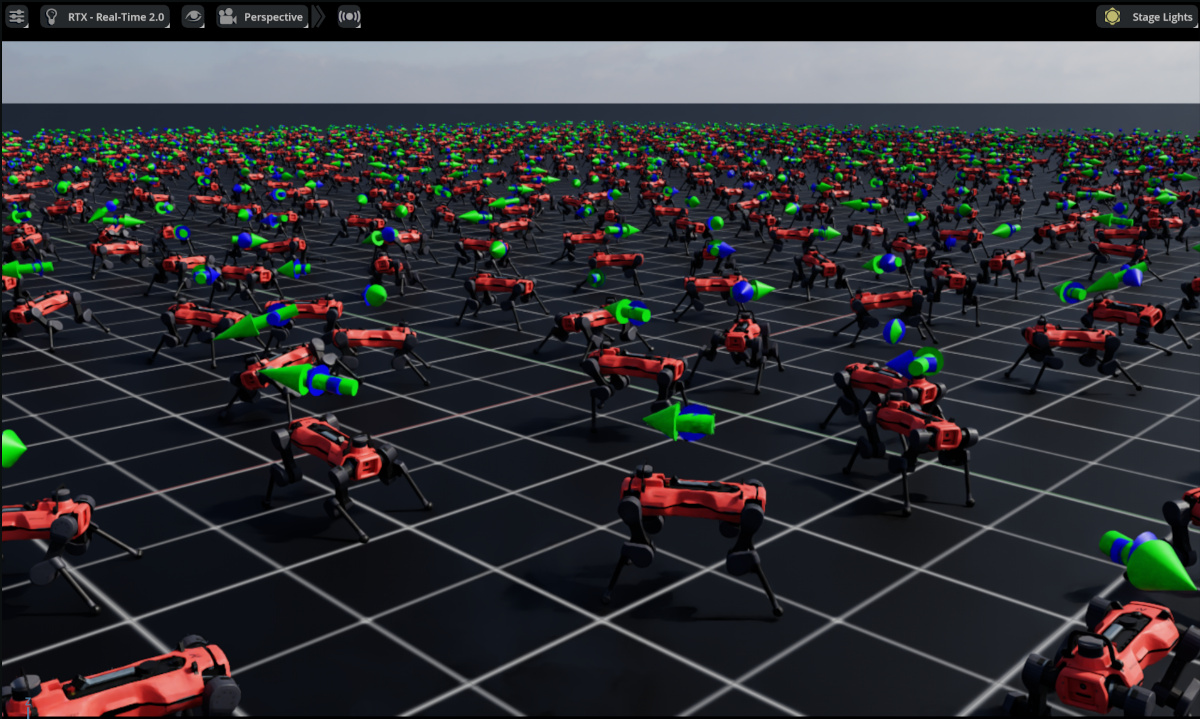

Omniverse Visualizer

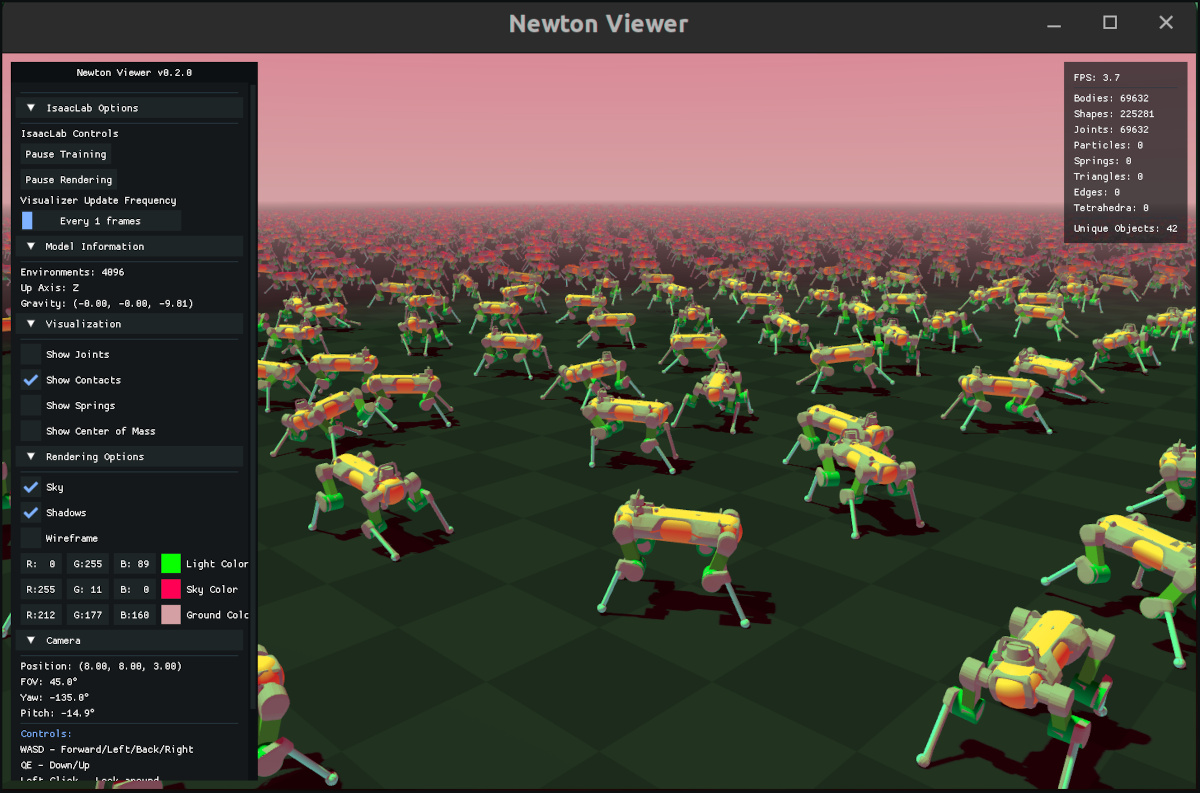

Newton Visualizer

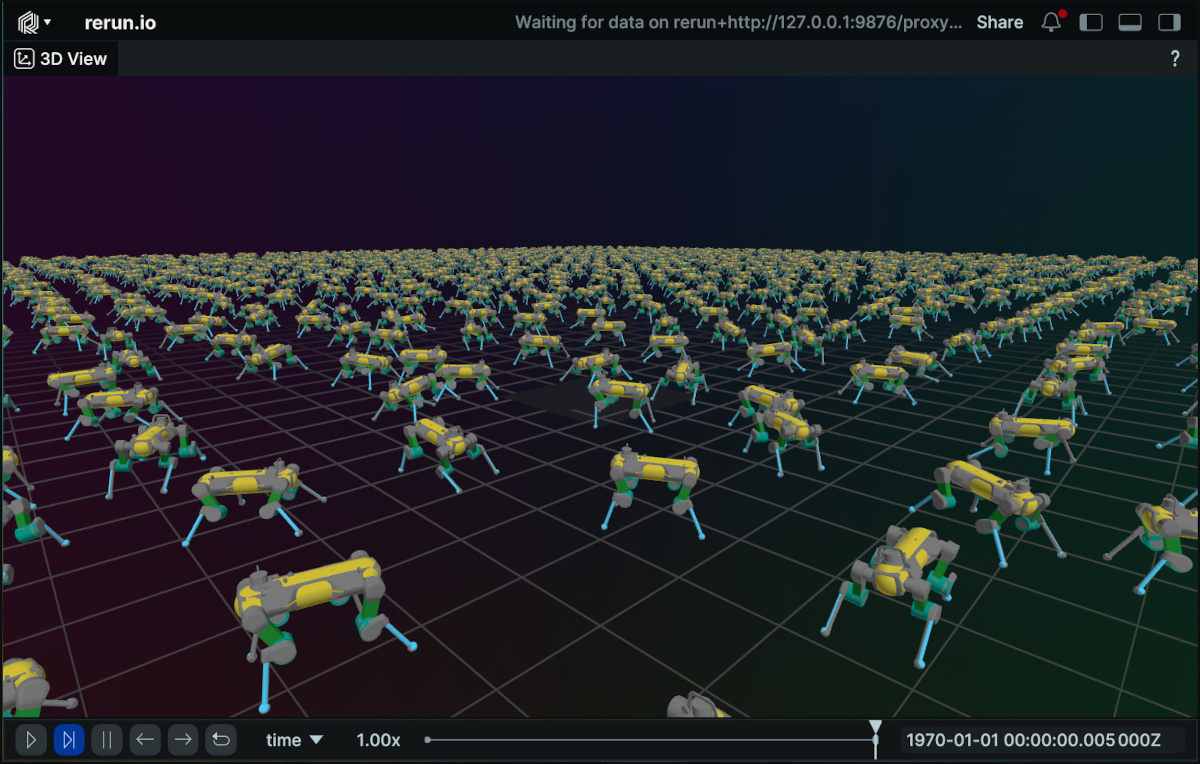

Rerun Visualizer

Quick Start

Launch visualizers from the command line with --visualizer (or --viz alias):

# Launch all visualizers (comma-delimited list, no spaces)
python scripts/reinforcement_learning/rsl_rl/train.py --task Isaac-Cartpole-v0 --viz kit,newton,rerun

# Launch only the Newton visualizer
python scripts/reinforcement_learning/rsl_rl/train.py --task Isaac-Cartpole-v0 --viz newton

# Launch the Viser web-based visualizer
python scripts/reinforcement_learning/rsl_rl/train.py --task Isaac-Cartpole-v0 --viz viser

To run in headless mode, omit the --viz argument:

python scripts/reinforcement_learning/rsl_rl/train.py --task Isaac-Cartpole-v0

Note

The --headless argument is deprecated. For compatibility, --headless still takes precedence and disables all visualizers.

Configuration

Launching visualizers with the command line will use default visualizer configurations. Visualizer backends live in the isaaclab_visualizers package (e.g. source/isaaclab_visualizers/isaaclab_visualizers/kit, newton, rerun, viser).

You can also configure custom visualizers in the code by defining VisualizerCfg instances for the SimulationCfg, for example:

from isaaclab.sim import SimulationCfg
from isaaclab_visualizers.kit import KitVisualizerCfg
from isaaclab_visualizers.newton import NewtonVisualizerCfg
from isaaclab_visualizers.rerun import RerunVisualizerCfg
from isaaclab_visualizers.viser import ViserVisualizerCfg

sim_cfg = SimulationCfg(
    visualizer_cfgs=[
        KitVisualizerCfg(
            # Omit create_viewport (default False) to use the active viewport; set
            # create_viewport=True and optionally viewport_name to add a dedicated window.
            eye=(0.0, 0.0, 20.0), # high top down view
            lookat=(0.0, 0.0, 0.0),
        ),
        NewtonVisualizerCfg(
            eye=(5.0, 5.0, 5.0), # closer quarter view
            lookat=(0.0, 0.0, 0.0),
            show_joints=True,
        ),
        RerunVisualizerCfg(
            keep_historical_data=True,
            keep_scalar_history=True,
            record_to_rrd="my_training.rrd",
        ),
        ViserVisualizerCfg(
            port=8080,
            bind_address="0.0.0.0",
            display_address="localhost",
            share=False,
        ),
    ]
)

Resolution Rules (CLI + Config)

The effective visualizer mode is resolved from both CLI and SimulationCfg.visualizer_cfgs:

• --viz (alias: --visualizer) uses comma-separated values (for example --viz kit,newton).

• If --viz is omitted, Isaac Lab falls back to SimulationCfg.visualizer_cfgs (see Configuration).

• --viz none explicitly disables all visualizers.

• If --headless is passed, it overrides --viz and disables visualizers.

For the migration-focused summary and deprecation context, see Migrating to Isaac Lab 3.0.

Partial Visualization

Visualizers can be configured to visualize just a subset of environments. This is called partial visualization.

There are 3 fields exposed in the VisualizerCfg for selecting environments for partial visualization:

• max_visible_envs caps how many envs are shown.

• visible_env_indices explicitly selects the envs to visualize.

• randomly_sample_visible_envs (default True): when visible_env_indices is unset and max_visible_envs is set, enables randomly sampling the selected envs. If disabled, the first max_visible_envs envs are selected.

Also, there is a CLI arg --max_visible_envs that overrides VisualizerCfg.max_visible_envs for the run.

Common modes

CLI args	visualizer configs	Effective behavior
no --viz	[]	Run headless.
--viz kit,newton	[]	Launch default Kit and default Newton visualizers.
--viz kit,newton	[NewtonVisualizerCfg(...), RerunVisualizerCfg(...)]	Launch default Kit and custom Newton; Rerun is not launched.
no --viz	[NewtonVisualizerCfg(...), RerunVisualizerCfg(...)]	Launch custom Newton and custom Rerun visualizers from config.
--viz none	[NewtonVisualizerCfg(...), RerunVisualizerCfg(...)]	Run headless with all visualizers disabled.
--headless	any	Run headless with deprecation warning.
--headless --viz <names>	any	Run headless; --headless takes precedence.

Video Recording

Video recording is enabled with the --video flag. When combined with --visualizer, the visualizer selection also determines which backend captures the video frames:

• --visualizer kit enables --video capture through the Isaac RTX renderer (Omniverse Replicator).

• --visualizer newton enables --video capture through the Newton OpenGL renderer.

• --visualizer rerun does not produce --video clips; it records Rerun .rrd data for replay through the Rerun visualizer.

• --visualizer viser does not currently provide a --video recording backend.

When both Kit and Newton visualizers are active, Isaac Lab records a single --video stream and Kit takes precedence. To record from the renderer/physics stack instead of the active visualizer, set VideoRecorderCfg.backend_source = "renderer" in the task configuration.

--video compatibility: visualizer × renderer preset

Renderer preset	--visualizer kit --video	--visualizer newton --video
isaacsim_rtx_renderer	✅ Kit RTX captures video (default, no change)	✅ Newton GL captures video (overrides RTX backend)
newton_renderer	✅ Kit RTX captures video (overrides Newton backend)	✅ Newton GL captures video (default, no change)
ovrtx_renderer	❌ Raises an error — see note below	✅ Newton GL captures video; ovrtx provides camera sensor data

Note

--visualizer kit combined with ovrtx_renderer raises a ValueError at startup. Both Kit (Isaac Sim) and ovrtx ship conflicting RTX hydra libraries compiled against different USD namespaces (pxrInternal_v0_25_11 vs ovInternal_v0_25_11), which causes a dynamic-linker crash when loaded into the same process. Use --visualizer newton instead — it is compatible with all renderer presets.

Record video with the ovrtx renderer preset

./isaaclab.sh -p scripts/benchmarks/benchmark_rsl_rl.py \
  --task=Isaac-Repose-Cube-Shadow-Vision-Direct-v0 \
  --enable_cameras \
  --visualizer newton \
  --video \
  --video_length=300 \
  --video_interval=2000 \
  --max_iterations=5 \
  --num_envs=1024 \
  --benchmark_backend=summary \
  "presets=newton_mjwarp,ovrtx_renderer,rgb"

Record video with the Isaac RTX renderer preset using the Newton video backend

./isaaclab.sh -p scripts/benchmarks/benchmark_rsl_rl.py \
  --task=Isaac-Repose-Cube-Shadow-Vision-Direct-v0 \
  --enable_cameras \
  --visualizer newton \
  --video \
  --video_length=300 \
  --video_interval=2000 \
  --max_iterations=5 \
  --num_envs=1024 \
  --benchmark_backend=summary \
  "presets=physx,isaacsim_rtx_renderer,rgb"

Record video with the Isaac RTX renderer preset using the Kit video backend

./isaaclab.sh -p scripts/benchmarks/benchmark_rsl_rl.py \
  --task=Isaac-Repose-Cube-Shadow-Vision-Direct-v0 \
  --enable_cameras \
  --visualizer kit \
  --video \
  --video_length=300 \
  --video_interval=2000 \
  --max_iterations=5 \
  --num_envs=1024 \
  --benchmark_backend=summary \
  "presets=physx,isaacsim_rtx_renderer,rgb"

Visualizer Backends

Omniverse Visualizer

Main Features:

• Native USD stage integration

• Live plots for monitoring training metrics

• Full Isaac Sim rendering capabilities and tooling

• Visualization markers for debugging (arrows, frames, object targets, etc.)

Core Configuration:

from isaaclab_visualizers.kit import KitVisualizerCfg

visualizer_cfg = KitVisualizerCfg(
    # Viewport: default is create_viewport=False (use active viewport).
    # Set create_viewport=True to create a docked window; viewport_name=None uses the default name.
    create_viewport=False,
    dock_position="SAME",
    window_width=1280,
    window_height=720,

    eye=(8.0, 8.0, 3.0),
    lookat=(0.0, 0.0, 0.0),

    enable_markers=True,
    enable_live_plots=True,
)

Newton Visualizer

Main Features:

• Lightweight OpenGL rendering with low overhead

• Simulation and rendering pause controls

• Adjustable update frequency for performance tuning

• Some customizable rendering options (shadows, sky, wireframe)

• Visualization markers (joints, contacts, springs, COM, debug markers)

Interactive Controls:

Key/Input	Action
W, A, S, D or Arrow Keys	Forward / Left / Back / Right
Q, E	Down / Up
Left Click + Drag	Look around
Mouse Scroll	Zoom in/out
H	Toggle UI sidebar
ESC	Exit viewer

Core Configuration:

from isaaclab_visualizers.newton import NewtonVisualizerCfg

visualizer_cfg = NewtonVisualizerCfg(
    # Window settings
    window_width=1920,                        # Window width in pixels
    window_height=1080,                       # Window height in pixels

    # Camera settings
    eye=(8.0, 8.0, 3.0),                     # Initial camera position (x, y, z)
    lookat=(0.0, 0.0, 0.0),                  # Camera look-at target

    # Performance tuning
    update_frequency=1,                       # Update every N frames (1=every frame)

    # Physics debug visualization
    show_joints=False,                        # Show joint visualizations
    show_contacts=False,                      # Show contact points and normals
    show_springs=False,                       # Show spring constraints
    show_com=False,                           # Show center of mass markers

    # Rendering options
    enable_shadows=True,                      # Enable shadow rendering
    enable_sky=True,                          # Enable sky rendering
    enable_wireframe=False,                   # Enable wireframe mode

    # Color customization
    background_color=(0.53, 0.81, 0.92),     # Sky/background color (RGB [0,1])
    ground_color=(0.18, 0.20, 0.25),         # Ground plane color (RGB [0,1])
    light_color=(1.0, 1.0, 1.0),             # Directional light color (RGB [0,1])
)

Rerun Visualizer

Main Features:

• Web viewer interface accessible from local or remote browser

• Metadata logging and filtering

• Recording to .rrd files for offline replay (.rrd files can be opened with ctrl+O from the web viewer)

• Timeline scrubbing and playback controls of recordings

• Visualization debug markers

Important

A highlighted Rerun browser URL is printed in the logs before the main simulation or training loop begins. Ctrl-click the printed URL in supported terminals/IDEs to open it. Set open_browser=True to automatically open the browser tab instead.

Example:

╭─────────────────────────── rerun (listening *:9090) ───────────────────────────╮
│             ╷                                                                  │
│   URL       │ http://127.0.0.1:9090/?url=rerun%2Bhttp://127.0.0.1:9876/proxy   │
│             ╵                                                                  │
╰────────────────────────────────────────────────────────────────────────────────╯

Core Configuration:

from isaaclab_visualizers.rerun import RerunVisualizerCfg

visualizer_cfg = RerunVisualizerCfg(
    # Server settings
    app_id="isaaclab-simulation",             # Application identifier for viewer
    grpc_port=9876,                           # gRPC endpoint for logging SDK connection
    web_port=9090,                            # Port for local web viewer URL printed in logs
    bind_address="0.0.0.0",                  # Endpoint host formatting/reuse checks
    open_browser=False,                       # Set True to auto-launch the browser

    # Camera settings
    eye=(8.0, 8.0, 3.0),                     # Initial camera position (x, y, z)
    lookat=(0.0, 0.0, 0.0),                  # Camera look-at target

    # History settings
    keep_historical_data=False,               # Keep transforms for time scrubbing
    keep_scalar_history=False,                # Keep scalar/plot history

    # Recording
    record_to_rrd="recording.rrd",            # Path to save .rrd file (None = no recording)
)

Rerun startup uses the Python SDK through newton.viewer.ViewerRerun (no external rerun CLI process management). If grpc_port is already active, Isaac Lab reuses that server. If web_port is occupied while starting a new server, initialization fails with a clear port-conflict error.

Viser Visualizer

The Viser visualizer provides a web-based 3D viewer for Isaac Lab simulations powered by the Newton Warp renderer. It streams the simulation state to a local web server, allowing you to view and interact with the scene from any browser.

Main Features:

• Browser-based visualization accessible at http://localhost:8080 by default

• Optional public share URL for remote viewing

• Recording to .viser format for replay

• Environment filtering to control which environments are rendered

• Visualization debug markers

Important

A highlighted Viser browser URL is printed in the logs before the main simulation or training loop begins. Ctrl-click the printed URL in supported terminals/IDEs to open it. Set open_browser=True to automatically open the browser tab instead. For remote access, keep bind_address="0.0.0.0" and set display_address to the hostname or IP address reachable from your browser.

Example:

╭────── viser (listening *:8080) ───────╮
│             ╷                         │
│   URL       │ http://localhost:8080   │
│             ╵                         │
╰───────────────────────────────────────╯

Core Configuration:

from isaaclab_visualizers.viser import ViserVisualizerCfg

visualizer_cfg = ViserVisualizerCfg(
    # Server settings
    port=8080,                                # Port for local Viser web server
    bind_address="0.0.0.0",                  # Interface to listen on; use 0.0.0.0 for remote access
    display_address="localhost",             # Host/IP shown in the printed browser URL
    open_browser=False,                       # Set True to auto-launch the browser
    label="Isaac Lab Simulation",             # Page title shown in the viewer
    share=False,                              # Request a public share URL for remote viewing
    verbose=True,                             # Print viewer server startup information

    # Camera settings
    eye=(8.0, 8.0, 3.0),                     # Initial camera position (x, y, z)
    lookat=(0.0, 0.0, 0.0),                  # Camera look-at target

    # Environment filtering
    max_visible_envs=16,                      # Maximum number of environments to visualize

    # Recording
    record_to_viser="recording.viser",        # Path to save .viser file (None = no recording)
)

Viser uses an in-process viser.ViserServer through newton.viewer.ViewerViser. bind_address controls the network interface that the server listens on, while display_address controls only the URL printed by Isaac Lab. On a remote machine, set display_address to the machine hostname/IP and ensure the configured port is reachable from your browser. Set share=True to request Viser’s public share/tunnel URL when that service is available.

Note

The Viser visualizer does not currently support live plots.

Performance Note

When visualizing large-scale environments, consider:

• Using Newton instead of Omniverse or Rerun

• Reducing window sizes

• Lower update frequencies

• Pausing visualizers while they are not being used

Limitations

Rerun Visualizer Performance

The Rerun web-based visualizer may experience performance issues or crashes when visualizing large-scale environments. For large-scale simulations, the Newton visualizer is recommended. Alternatively, to reduce load, the num of environments can be overwritten and decreased using --num_envs:

python scripts/reinforcement_learning/rsl_rl/train.py --task Isaac-Cartpole-v0 --viz rerun --num_envs 512

Rerun Visualizer FPS Control

The FPS control in the Rerun visualizer UI may not affect the visualization frame rate in all configurations.

Live Plots

Currently, live plots are only available in the Kit Visualizer.

Viser Visualizer Renderer Requirement

The Viser visualizer requires a Newton model, which is provided automatically by SceneDataProvider regardless of the active physics backend or renderer. It is compatible with all rendering backends (RTX, Newton Warp, OVRTX).

Newton Visualizer CUDA/OpenGL Interoperability Warnings

On some system configurations, the Newton visualizer may display warnings about CUDA/OpenGL interoperability:

Warning: Could not get MSAA config, falling back to non-AA.
Warp CUDA error 999: unknown error (in function wp_cuda_graphics_register_gl_buffer)
Warp UserWarning: Could not register GL buffer since CUDA/OpenGL interoperability
is not available. Falling back to copy operations between the Warp array and the
OpenGL buffer.

The visualizer will still function correctly but may experience reduced performance due to falling back to CPU copy operations instead of direct GPU memory sharing.

Newton Visualizer on Spark with Conda

When running the Newton visualizer on Spark inside a conda environment, conda-installed X11 libraries may conflict with the system libraries required by pyglet, causing the following error:

pyglet.window.xlib.XlibException: Could not create UTF8 text property

To resolve this, remove the conflicting conda packages so that the system-provided libraries are used instead:

conda remove --force xorg-libx11 libxcb

See Also

• Renderers — renderer backends (RTX, Newton Warp, OVRTX)

• Scene Data Provider — how scene data flows from physics to visualizers

• Newton Backend — Newton backend guide

• Migrating to Isaac Lab 3.0 — migration guide with --headless deprecation details
