Agentic Environment Generation and Policy Evaluation#

Agentic environment generation creates Arena environments from natural-language prompts, then reuses the generated environment graph specs for downstream policy evaluation. This workflow shows how agentically composed environments can be used by the policy runner, the Experiment Runner and its variation system, and policy-specific evaluation flows such as GR00T and PI.

Behind the scenes, this workflow uses the ArenaEnvGraphSpec schema for scene layout, tasks, and spatial relations.

Docker Container: Base (see Installation for more details)

./docker/run_docker.sh

Todo

add concept overview page

Prompt to Environment Graph Spec#

Use the agentic generation runner to resolve a prompt into environment graph specs:

python isaaclab_arena_examples/agentic_environment_generation/environment_generation_runner.py \
   --mode resolve \
   --prompt "Droid picks up the mustard bottle from the maple table and places it in the grey bin."

The runner writes <env_name>.yaml under isaaclab_arena_environments/agent_generated/ by default. Pass it to policy and evaluation commands with --env_graph_spec_yaml.

Prompt to Simulation Environment#

Use the agentic generation runner to build a simulation environment from a prompt-specified environment:

python isaaclab_arena_examples/agentic_environment_generation/environment_generation_runner.py \
   --mode full \
   --prompt "Droid picks up the mustard bottle from the maple table and places it in the grey bin."

Interactive GUI Runner#

As an alternative to the CLI runner, use the GUI runner to interactively generate, edit, and visualize the prompt-specified environment in a web browser:

python isaaclab_arena_examples/agentic_environment_generation/gui_runner.py

Note

Agent-generated specs may have missing or incorrect fields. We recommend using the interactive GUI to manually fix and validate each spec before using it for full evaluation.

For example:

  • isaaclab_arena_environments/robolab/scenes/mustard_raisin_box.yaml manually adds a rotate_around_solution relation to set the raisin box in a standup position.

  • isaaclab_arena_environments/robolab/scenes/two_bin.yaml manually edits the next_to relation side param to set the correct left/right positioning in robot coordinates.

See Agentic Environment Generation GUI for the full UI walkthrough.

Available Generated Specs#

The isaaclab_arena_environments/robolab subfolder contains Arena environment graph specs for RoboLab scenes and tasks. Scene YAMLs live in robolab/scenes/; task YAMLs in robolab/tasks/ include their scene via a top-level external_yaml: path. See RoboLab Task Catalog for the list of RoboLab tasks currently supported in Arena.

Run a Generated Environment#

Generated environments are consumed through --env_graph_spec_yaml:

python isaaclab_arena/evaluation/policy_runner.py \
   --viz kit \
   --policy_type zero_action \
   --enable_cameras \
   --num_steps 100 \
   --env_graph_spec_yaml isaaclab_arena_environments/robolab/tasks/mustard_above_raisin.yaml

The same YAML can also be built directly by the generation runner:

python isaaclab_arena_examples/agentic_environment_generation/environment_generation_runner.py \
   --mode build \
   --env_graph_spec_yaml isaaclab_arena_environments/robolab/tasks/mustard_above_raisin.yaml \
   --headless

Policy Runner with Variations#

An Arena environment represented by an environment graph spec YAML can be run with variations through the policy runner:

python isaaclab_arena/evaluation/policy_runner.py \
   --viz kit \
   --policy_type zero_action \
   --enable_cameras \
   isaaclab_arena_environments/robolab/tasks/mustard_above_raisin.yaml \
   light.hdr_image.enabled=true \
   droid_abs_joint_pos.camera_extrinsics_wrist_camera.enabled=true

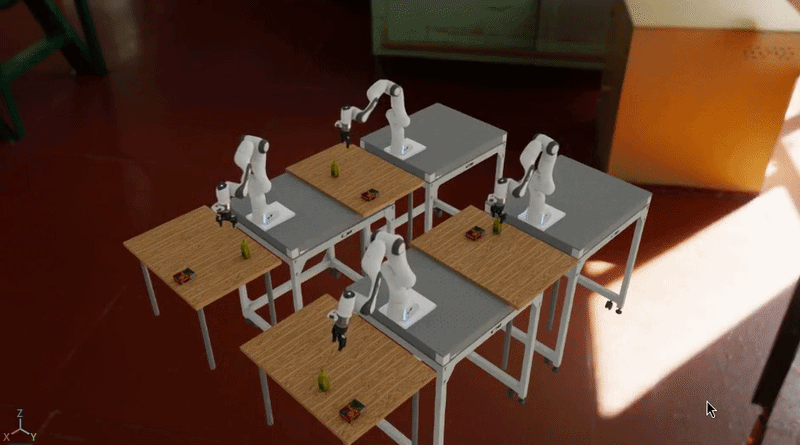

Agentic environment generation with PI policy and HDR variation sensitivity analysis

Agentically generated environments can be evaluated with policy runners and variation sweeps, such as changing the background HDR image to probe policy sensitivity.#

Experiment Runner with Variations#

Evaluation jobs can also point their environment source at an environment graph spec YAML with variations, instead of a registered example-environment name:

{
    "name": "agentic_env_eval",
    "arena_env_args": {
        "environment": "isaaclab_arena_environments/robolab/tasks/mustard_above_raisin.yaml",
        "enable_cameras": true
    },
    "num_steps": 100,
    "num_rebuilds": 1,
    "policy_type": "zero_action",
    "policy_config_dict": {}
}

Evaluation Policies Workflow Steps#

Follow the steps below to complete the workflow:

Warnings#

Note

Agentic environment generation is experimental and changing quickly. The current prompt formats, generated spec structure, GUI behavior, and policy evaluation integrations may change across releases.

We are actively working on:

  • Support for more complex scene layouts and object placements.

  • Support for more complex task specifications.

  • Support in-sim validation for physics and reachability.

  • …
