So far in the tutorials, we manually spawned assets into the simulation and created object instances to interact with them. However, as the complexity of the scene increases, it becomes tedious to perform these tasks manually. In this tutorial, we will introduce the scene.InteractiveScene class, which provides a convenient interface for spawning prims and managing them in the simulation.

At a high-level, the interactive scene is a collection of scene entities. Each entity can be either a non-interactive prim (e.g. ground plane, light source), an interactive prim (e.g. articulation, rigid object), or a sensor (e.g. camera, lidar). The interactive scene provides a convenient interface for spawning these entities and managing them in the simulation.

Compared the manual approach, it provides the following benefits:

  • Alleviates the user needing to spawn each asset separately as this is handled implicitly.

  • Enables user-friendly cloning of scene prims for multiple environments.

  • Collects all the scene entities into a single object, which makes them easier to manage.

In this tutorial, we take the cartpole example from the Interacting with an articulation tutorial and replace the design_scene function with an scene.InteractiveScene object. While it may seem like overkill to use the interactive scene for this simple example, it will become more useful in the future as more assets and sensors are added to the scene.

The Code#

This tutorial corresponds to the create_scene.py script within source/standalone/tutorials/02_scene.

Code for create_scene.py
  1# Copyright (c) 2022-2024, The Isaac Lab Project Developers.
  2# All rights reserved.
  3#
  4# SPDX-License-Identifier: BSD-3-Clause
  5
  6"""This script demonstrates how to use the interactive scene interface to setup a scene with multiple prims.
  7
  8.. code-block:: bash
  9
 10    # Usage
 11    ./isaaclab.sh -p source/standalone/tutorials/02_scene/create_scene.py --num_envs 32
 12
 13"""
 14
 15"""Launch Isaac Sim Simulator first."""
 16
 17
 18import argparse
 19
 20from omni.isaac.lab.app import AppLauncher
 21
 22# add argparse arguments
 23parser = argparse.ArgumentParser(description="Tutorial on using the interactive scene interface.")
 24parser.add_argument("--num_envs", type=int, default=2, help="Number of environments to spawn.")
 25# append AppLauncher cli args
 26AppLauncher.add_app_launcher_args(parser)
 27# parse the arguments
 28args_cli = parser.parse_args()
 29
 30# launch omniverse app
 31app_launcher = AppLauncher(args_cli)
 32simulation_app = app_launcher.app
 33
 34"""Rest everything follows."""
 35
 36import torch
 37
 38import omni.isaac.lab.sim as sim_utils
 39from omni.isaac.lab.assets import ArticulationCfg, AssetBaseCfg
 40from omni.isaac.lab.scene import InteractiveScene, InteractiveSceneCfg
 41from omni.isaac.lab.sim import SimulationContext
 42from omni.isaac.lab.utils import configclass
 43
 44##
 45# Pre-defined configs
 46##
 47from omni.isaac.lab_assets import CARTPOLE_CFG  # isort:skip
 48
 49
 50@configclass
 51class CartpoleSceneCfg(InteractiveSceneCfg):
 52    """Configuration for a cart-pole scene."""
 53
 54    # ground plane
 55    ground = AssetBaseCfg(prim_path="/World/defaultGroundPlane", spawn=sim_utils.GroundPlaneCfg())
 56
 57    # lights
 58    dome_light = AssetBaseCfg(
 59        prim_path="/World/Light", spawn=sim_utils.DomeLightCfg(intensity=3000.0, color=(0.75, 0.75, 0.75))
 60    )
 61
 62    # articulation
 63    cartpole: ArticulationCfg = CARTPOLE_CFG.replace(prim_path="{ENV_REGEX_NS}/Robot")
 64
 65
 66def run_simulator(sim: sim_utils.SimulationContext, scene: InteractiveScene):
 67    """Runs the simulation loop."""
 68    # Extract scene entities
 69    # note: we only do this here for readability.
 70    robot = scene["cartpole"]
 71    # Define simulation stepping
 72    sim_dt = sim.get_physics_dt()
 73    count = 0
 74    # Simulation loop
 75    while simulation_app.is_running():
 76        # Reset
 77        if count % 500 == 0:
 78            # reset counter
 79            count = 0
 80            # reset the scene entities
 81            # root state
 82            # we offset the root state by the origin since the states are written in simulation world frame
 83            # if this is not done, then the robots will be spawned at the (0, 0, 0) of the simulation world
 84            root_state = robot.data.default_root_state.clone()
 85            root_state[:, :3] += scene.env_origins
 86            robot.write_root_link_pose_to_sim(root_state[:, :7])
 87            robot.write_root_com_velocity_to_sim(root_state[:, 7:])
 88            # set joint positions with some noise
 89            joint_pos, joint_vel = robot.data.default_joint_pos.clone(), robot.data.default_joint_vel.clone()
 90            joint_pos += torch.rand_like(joint_pos) * 0.1
 91            robot.write_joint_state_to_sim(joint_pos, joint_vel)
 92            # clear internal buffers
 93            scene.reset()
 94            print("[INFO]: Resetting robot state...")
 95        # Apply random action
 96        # -- generate random joint efforts
 97        efforts = torch.randn_like(robot.data.joint_pos) * 5.0
 98        # -- apply action to the robot
 99        robot.set_joint_effort_target(efforts)
100        # -- write data to sim
101        scene.write_data_to_sim()
102        # Perform step
103        sim.step()
104        # Increment counter
105        count += 1
106        # Update buffers
107        scene.update(sim_dt)
108
109
110def main():
111    """Main function."""
112    # Load kit helper
113    sim_cfg = sim_utils.SimulationCfg(device=args_cli.device)
114    sim = SimulationContext(sim_cfg)
115    # Set main camera
116    sim.set_camera_view([2.5, 0.0, 4.0], [0.0, 0.0, 2.0])
117    # Design scene
118    scene_cfg = CartpoleSceneCfg(num_envs=args_cli.num_envs, env_spacing=2.0)
119    scene = InteractiveScene(scene_cfg)
120    # Play the simulator
121    sim.reset()
122    # Now we are ready!
123    print("[INFO]: Setup complete...")
124    # Run the simulator
125    run_simulator(sim, scene)
126
127
128if __name__ == "__main__":
129    # run the main function
130    main()
131    # close sim app
132    simulation_app.close()

The Code Explained#

While the code is similar to the previous tutorial, there are a few key differences that we will go over in detail.

Scene configuration#

The scene is composed of a collection of entities, each with their own configuration. These are specified in a configuration class that inherits from scene.InteractiveSceneCfg. The configuration class is then passed to the scene.InteractiveScene constructor to create the scene.

For the cartpole example, we specify the same scene as in the previous tutorial, but list them now in the configuration class CartpoleSceneCfg instead of manually spawning them.

@configclass
class CartpoleSceneCfg(InteractiveSceneCfg):
    """Configuration for a cart-pole scene."""

    # ground plane
    ground = AssetBaseCfg(prim_path="/World/defaultGroundPlane", spawn=sim_utils.GroundPlaneCfg())

    # lights
    dome_light = AssetBaseCfg(
        prim_path="/World/Light", spawn=sim_utils.DomeLightCfg(intensity=3000.0, color=(0.75, 0.75, 0.75))
    )

    # articulation
    cartpole: ArticulationCfg = CARTPOLE_CFG.replace(prim_path="{ENV_REGEX_NS}/Robot")

The variable names in the configuration class are used as keys to access the corresponding entity from the scene.InteractiveScene object. For example, the cartpole can be accessed via scene["cartpole"]. However, we will get to that later. First, let’s look at how individual scene entities are configured.

Similar to how a rigid object and articulation were configured in the previous tutorials, the configurations are specified using a configuration class. However, there is a key difference between the configurations for the ground plane and light source and the configuration for the cartpole. The ground plane and light source are non-interactive prims, while the cartpole is an interactive prim. This distinction is reflected in the configuration classes used to specify them. The configurations for the ground plane and light source are specified using an instance of the assets.AssetBaseCfg class while the cartpole is configured using an instance of the assets.ArticulationCfg. Anything that is not an interactive prim (i.e., neither an asset nor a sensor) is not handled by the scene during simulation steps.

Another key difference to note is in the specification of the prim paths for the different prims:

  • Ground plane: /World/defaultGroundPlane

  • Light source: /World/Light

  • Cartpole: {ENV_REGEX_NS}/Robot

As we learned earlier, Omniverse creates a graph of prims in the USD stage. The prim paths are used to specify the location of the prim in the graph. The ground plane and light source are specified using absolute paths, while the cartpole is specified using a relative path. The relative path is specified using the ENV_REGEX_NS variable, which is a special variable that is replaced with the environment name during scene creation. Any entity that has the ENV_REGEX_NS variable in its prim path will be cloned for each environment. This path is replaced by the scene object with /World/envs/env_{i} where i is the environment index.

Scene instantiation#

Unlike before where we called the design_scene function to create the scene, we now create an instance of the scene.InteractiveScene class and pass in the configuration object to its constructor. While creating the configuration instance of CartpoleSceneCfg we specify how many environment copies we want to create using the num_envs argument. This will be used to clone the scene for each environment.

    # Design scene
    scene_cfg = CartpoleSceneCfg(num_envs=args_cli.num_envs, env_spacing=2.0)
    scene = InteractiveScene(scene_cfg)

Accessing scene elements#

Similar to how entities were accessed from a dictionary in the previous tutorials, the scene elements can be accessed from the InteractiveScene object using the [] operator. The operator takes in a string key and returns the corresponding entity. The key is specified through the configuration class for each entity. For example, the cartpole is specified using the key "cartpole" in the configuration class.

    # Extract scene entities
    # note: we only do this here for readability.
    robot = scene["cartpole"]

Running the simulation loop#

The rest of the script looks similar to previous scripts that interfaced with assets.Articulation, with a few small differences in the methods called:

Under the hood, the methods of scene.InteractiveScene call the corresponding methods of the entities in the scene.

The Code Execution#

Let’s run the script to simulate 32 cartpoles in the scene. We can do this by passing the --num_envs argument to the script.

./isaaclab.sh -p source/standalone/tutorials/02_scene/create_scene.py --num_envs 32

This should open a stage with 32 cartpoles swinging around randomly. You can use the mouse to rotate the camera and the arrow keys to move around the scene.

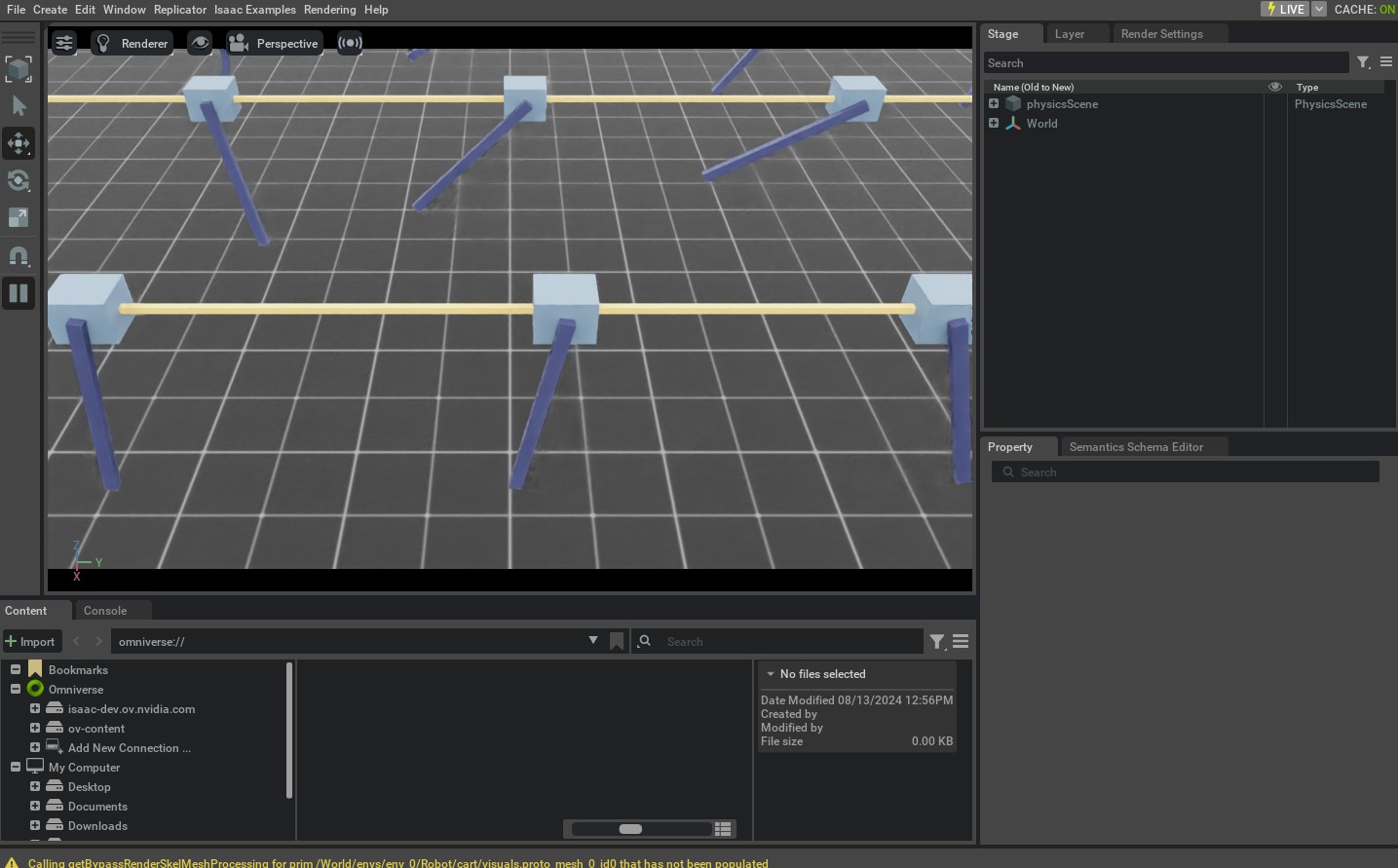

result of create_scene.py

In this tutorial, we saw how to use scene.InteractiveScene to create a scene with multiple assets. We also saw how to use the num_envs argument to clone the scene for multiple environments.

There are many more example usages of the scene.InteractiveSceneCfg in the tasks found under the omni.isaac.lab_tasks extension. Please check out the source code to see how they are used for more complex scenes.
