Ray Caster#
The Ray Caster sensor (and the ray caster camera) are similar to RTX based rendering in that they both involve casting rays. The difference here is that the rays cast by the Ray Caster sensor return strictly collision information along the cast, and the direction of each individual ray can be specified. They do not bounce, nor are they affected by things like materials or opacity. For each ray specified by the sensor, a line is traced along the path of the ray and the location of first collision with the specified mesh is returned. This is the method used by some of our quadruped examples to measure the local height field.
To keep the sensor performant when there are many cloned environments, the line tracing is done directly in Warp. This is the reason why specific meshes need to be identified to cast against: that mesh data is loaded onto the device by warp when the sensor is initialized. As a consequence, the current iteration of this sensor only works for literally static meshes (meshes that are not changed from the defaults specified in their USD file). This constraint will be removed in future releases.

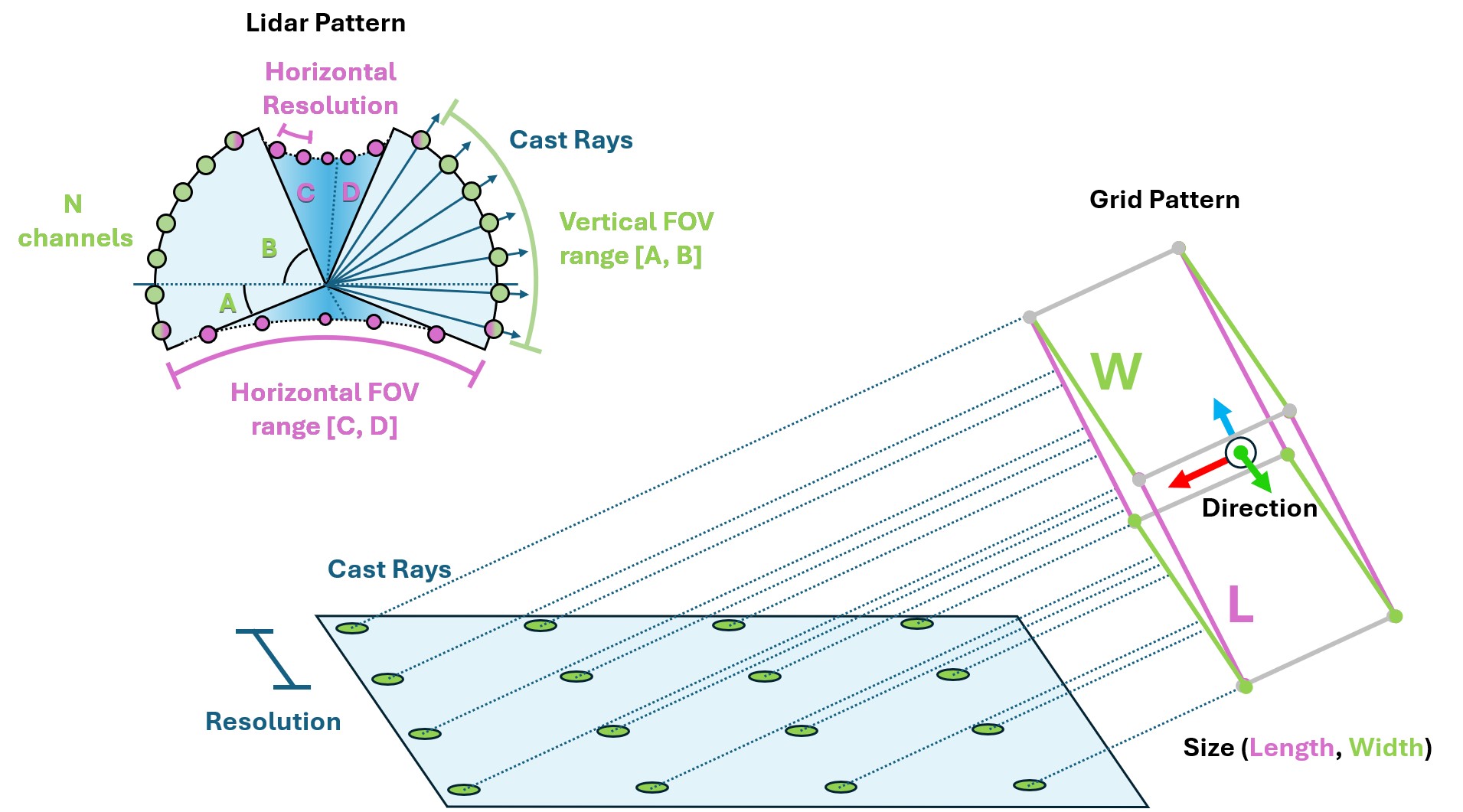

Using a ray caster sensor requires a pattern and a parent xform to be attached to. The pattern defines how the rays are cast, while the prim properties defines the orientation and position of the sensor (additional offsets can be specified for more exact placement). Isaac Lab supports a number of ray casting pattern configurations, including a generic LIDAR and grid pattern.
@configclass
class RaycasterSensorSceneCfg(InteractiveSceneCfg):
"""Design the scene with sensors on the robot."""
# ground plane
ground = AssetBaseCfg(
prim_path="/World/Ground",
spawn=sim_utils.UsdFileCfg(
usd_path=f"{ISAAC_NUCLEUS_DIR}/Environments/Terrains/rough_plane.usd",
scale=(1, 1, 1),
),
)
# lights
dome_light = AssetBaseCfg(
prim_path="/World/Light", spawn=sim_utils.DomeLightCfg(intensity=3000.0, color=(0.75, 0.75, 0.75))
)
# robot
robot = ANYMAL_C_CFG.replace(prim_path="{ENV_REGEX_NS}/Robot")
ray_caster = RayCasterCfg(
prim_path="{ENV_REGEX_NS}/Robot/base/lidar_cage",
update_period=1 / 60,
offset=RayCasterCfg.OffsetCfg(pos=(0, 0, 0.5)),
mesh_prim_paths=["/World/Ground"],
ray_alignment="yaw",
pattern_cfg=patterns.LidarPatternCfg(
channels=100, vertical_fov_range=[-90, 90], horizontal_fov_range=[-90, 90], horizontal_res=1.0
),
debug_vis=not args_cli.headless,
)

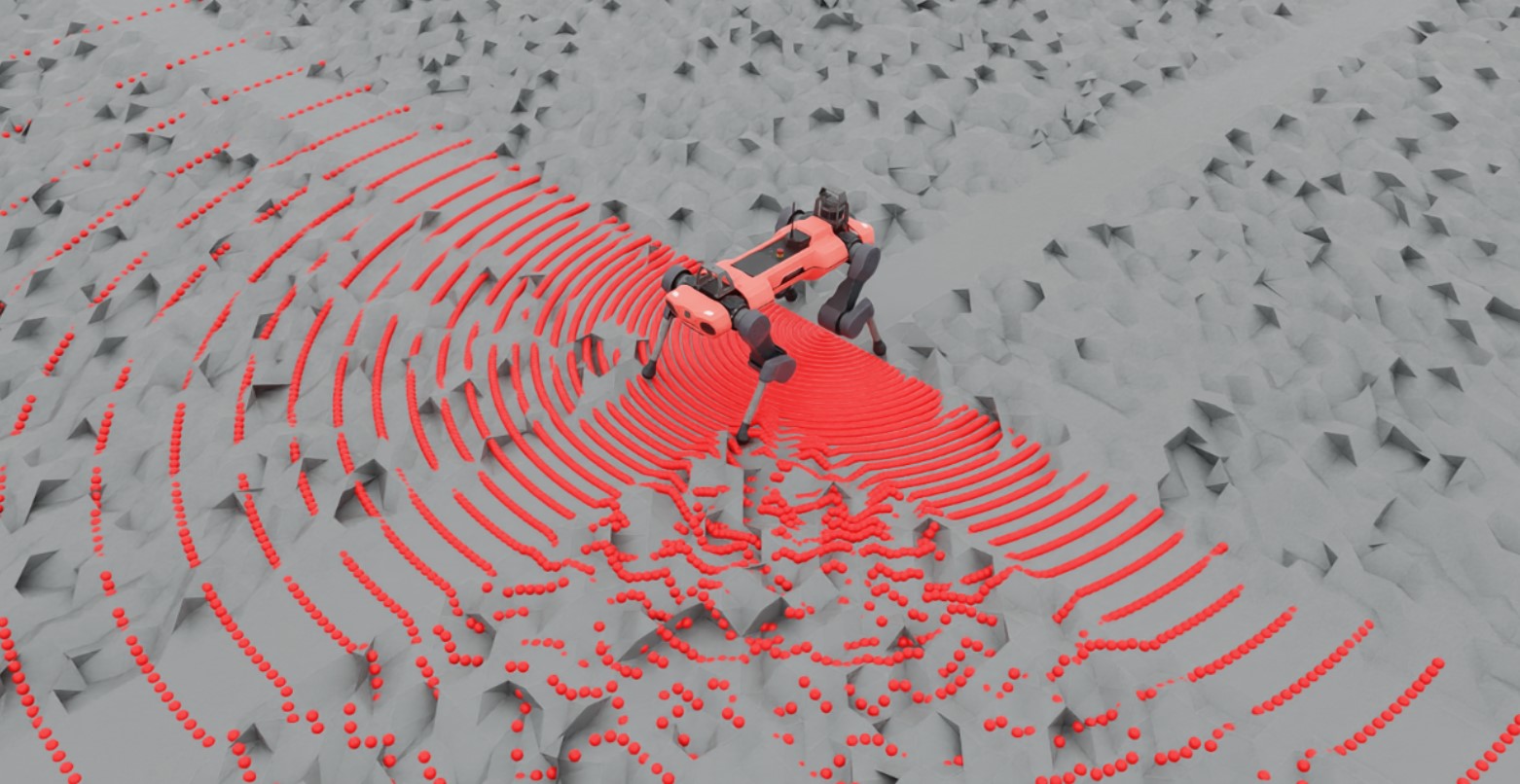

Notice that the units on the pattern config is in degrees! Also, we enable visualization here to explicitly show the pattern in the rendering, but this is not required and should be disabled for performance tuning.
Querying the sensor for data can be done at simulation run time like any other sensor.
def run_simulator(sim: sim_utils.SimulationContext, scene: InteractiveScene):
.
.
.
# Simulate physics
while simulation_app.is_running():
.
.
.
# print information from the sensors
print("-------------------------------")
print(scene["ray_caster"])
print("Ray cast hit results: ", scene["ray_caster"].data.ray_hits_w)
-------------------------------
Ray-caster @ '/World/envs/env_.*/Robot/base/lidar_cage':
view type : <class 'isaacsim.core.prims.xform_prim.XFormPrim'>
update period (s) : 0.016666666666666666
number of meshes : 1
number of sensors : 1
number of rays/sensor: 18000
total number of rays : 18000
Ray cast hit results: tensor([[[-0.3698, 0.0357, 0.0000],
[-0.3698, 0.0357, 0.0000],
[-0.3698, 0.0357, 0.0000],
...,
[ inf, inf, inf],
[ inf, inf, inf],
[ inf, inf, inf]]], device='cuda:0')
-------------------------------
Here we can see the data returned by the sensor itself. Notice first that there are 3 closed brackets at the beginning and the end: this is because the data returned is batched by the number of sensors. The ray cast pattern itself has also been flattened, and so the dimensions of the array are [N, B, 3] where N is the number of sensors, B is the number of cast rays in the pattern, and 3 is the dimension of the casting space. Finally, notice that the first several values in this casting pattern are the same: this is because the lidar pattern is spherical and we have specified our FOV to be hemispherical, which includes the poles. In this configuration, the “flattening pattern” becomes apparent: the first 180 entries will be the same because it’s the bottom pole of this hemisphere, and there will be 180 of them because our horizontal FOV is 180 degrees with a resolution of 1 degree.
You can use this script to experiment with pattern configurations and build an intuition about how the data is stored by altering the triggered variable on line 81.
Code for raycaster_sensor.py
1# Copyright (c) 2022-2026, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
2# All rights reserved.
3#
4# SPDX-License-Identifier: BSD-3-Clause
5
6import argparse
7
8from isaaclab.app import AppLauncher
9
10# add argparse arguments
11parser = argparse.ArgumentParser(description="Example on using the raycaster sensor.")
12parser.add_argument("--num_envs", type=int, default=1, help="Number of environments to spawn.")
13# append AppLauncher cli args
14AppLauncher.add_app_launcher_args(parser)
15# parse the arguments
16args_cli = parser.parse_args()
17
18# launch omniverse app
19app_launcher = AppLauncher(args_cli)
20simulation_app = app_launcher.app
21
22"""Rest everything follows."""
23
24import numpy as np
25import torch
26
27import isaaclab.sim as sim_utils
28from isaaclab.assets import AssetBaseCfg
29from isaaclab.scene import InteractiveScene, InteractiveSceneCfg
30from isaaclab.sensors.ray_caster import RayCasterCfg, patterns
31from isaaclab.utils import configclass
32from isaaclab.utils.assets import ISAAC_NUCLEUS_DIR
33
34##
35# Pre-defined configs
36##
37from isaaclab_assets.robots.anymal import ANYMAL_C_CFG # isort: skip
38
39
40@configclass
41class RaycasterSensorSceneCfg(InteractiveSceneCfg):
42 """Design the scene with sensors on the robot."""
43
44 # ground plane
45 ground = AssetBaseCfg(
46 prim_path="/World/Ground",
47 spawn=sim_utils.UsdFileCfg(
48 usd_path=f"{ISAAC_NUCLEUS_DIR}/Environments/Terrains/rough_plane.usd",
49 scale=(1, 1, 1),
50 ),
51 )
52
53 # lights
54 dome_light = AssetBaseCfg(
55 prim_path="/World/Light", spawn=sim_utils.DomeLightCfg(intensity=3000.0, color=(0.75, 0.75, 0.75))
56 )
57
58 # robot
59 robot = ANYMAL_C_CFG.replace(prim_path="{ENV_REGEX_NS}/Robot")
60
61 ray_caster = RayCasterCfg(
62 prim_path="{ENV_REGEX_NS}/Robot/base/lidar_cage",
63 update_period=1 / 60,
64 offset=RayCasterCfg.OffsetCfg(pos=(0, 0, 0.5)),
65 mesh_prim_paths=["/World/Ground"],
66 ray_alignment="yaw",
67 pattern_cfg=patterns.LidarPatternCfg(
68 channels=100, vertical_fov_range=[-90, 90], horizontal_fov_range=[-90, 90], horizontal_res=1.0
69 ),
70 debug_vis=not args_cli.headless,
71 )
72
73
74def run_simulator(sim: sim_utils.SimulationContext, scene: InteractiveScene):
75 """Run the simulator."""
76 # Define simulation stepping
77 sim_dt = sim.get_physics_dt()
78 sim_time = 0.0
79 count = 0
80
81 triggered = True
82 countdown = 42
83
84 # Simulate physics
85 while simulation_app.is_running():
86 if count % 500 == 0:
87 # reset counter
88 count = 0
89 # reset the scene entities
90 # root state
91 # we offset the root state by the origin since the states are written in simulation world frame
92 # if this is not done, then the robots will be spawned at the (0, 0, 0) of the simulation world
93 root_state = scene["robot"].data.default_root_state.clone()
94 root_state[:, :3] += scene.env_origins
95 scene["robot"].write_root_pose_to_sim(root_state[:, :7])
96 scene["robot"].write_root_velocity_to_sim(root_state[:, 7:])
97 # set joint positions with some noise
98 joint_pos, joint_vel = (
99 scene["robot"].data.default_joint_pos.clone(),
100 scene["robot"].data.default_joint_vel.clone(),
101 )
102 joint_pos += torch.rand_like(joint_pos) * 0.1
103 scene["robot"].write_joint_state_to_sim(joint_pos, joint_vel)
104 # clear internal buffers
105 scene.reset()
106 print("[INFO]: Resetting robot state...")
107 # Apply default actions to the robot
108 # -- generate actions/commands
109 targets = scene["robot"].data.default_joint_pos
110 # -- apply action to the robot
111 scene["robot"].set_joint_position_target(targets)
112 # -- write data to sim
113 scene.write_data_to_sim()
114 # perform step
115 sim.step()
116 # update sim-time
117 sim_time += sim_dt
118 count += 1
119 # update buffers
120 scene.update(sim_dt)
121
122 # print information from the sensors
123 print("-------------------------------")
124 print(scene["ray_caster"])
125 print("Ray cast hit results: ", scene["ray_caster"].data.ray_hits_w)
126
127 if not triggered:
128 if countdown > 0:
129 countdown -= 1
130 continue
131 data = scene["ray_caster"].data.ray_hits_w.cpu().numpy()
132 np.save("cast_data.npy", data)
133 triggered = True
134 else:
135 continue
136
137
138def main():
139 """Main function."""
140
141 # Initialize the simulation context
142 sim_cfg = sim_utils.SimulationCfg(dt=0.005, device=args_cli.device)
143 sim = sim_utils.SimulationContext(sim_cfg)
144 # Set main camera
145 sim.set_camera_view(eye=[3.5, 3.5, 3.5], target=[0.0, 0.0, 0.0])
146 # design scene
147 scene_cfg = RaycasterSensorSceneCfg(num_envs=args_cli.num_envs, env_spacing=2.0)
148 scene = InteractiveScene(scene_cfg)
149 # Play the simulator
150 sim.reset()
151 # Now we are ready!
152 print("[INFO]: Setup complete...")
153 # Run the simulator
154 run_simulator(sim, scene)
155
156
157if __name__ == "__main__":
158 # run the main function
159 main()
160 # close sim app
161 simulation_app.close()
