Reinforcement Learning

Isaac Lab provides a common workflow for training and evaluating policies with several reinforcement learning (RL) libraries. This page helps you choose a library, run your first experiment, and understand the options you are most likely to use.

If you are starting a new robotics project and do not need a feature unique to another library, start with RSL-RL.

Quick start

From the Isaac Lab repository, train a Cartpole policy with RSL-RL:

uv run isaaclab train --rl_library rsl_rl --task Isaac-Cartpole

Training runs headless by default and writes checkpoints and TensorBoard logs under logs/rsl_rl/.

To evaluate the latest compatible checkpoint in the interactive visualizer:

uv run isaaclab play --rl_library rsl_rl --task Isaac-Cartpole \
    --checkpoint latest --num_envs 32 --viz newton

The train and play commands work across the supported RL libraries.

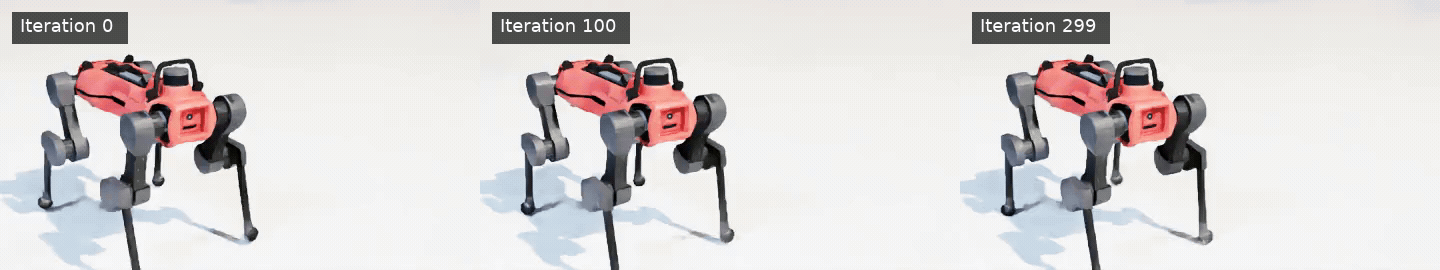

An ANYmal-D locomotion policy at three checkpoints during training.

Choose an RL library

All supported libraries use the same Isaac Lab environments, but they differ in algorithms, configuration style, and intended workflow. Choose based on the features your experiment needs, not on a single throughput result.

Library	Choose it for	Notable features in Isaac Lab	Installation
RSL-RL	Most GPU-parallel locomotion and manipulation tasks	PPO, teacher-student distillation, symmetry augmentation, random network distillation, and recurrent and CNN-based policies	Included by default
skrl	JAX workflows or explicit multi-agent training	PPO, AMP, IPPO, and MAPPO with PyTorch or JAX	--extra skrl
RL-Games	Existing RL-Games projects or population-based workflows	PPO, SAC, A2C, population-based training, distributed training, and Ray integration	--extra rl-games
Stable-Baselines3	Familiar baselines and Stable-Baselines3 ecosystem tooling	PPO with Stable-Baselines3 callbacks, logging, and model APIs; best suited to smaller experiments	--extra sb3
RLinf	RL fine-tuning of Vision-Language-Action models	Distributed GR00T and OpenVLA post-training with Ray and FSDP	Specialized setup

Install optional dependencies by selecting the corresponding uv extra when running a command:

uv run --extra skrl isaaclab train --rl_library skrl --task Isaac-Cartpole
uv run --extra rl-games isaaclab train --rl_library rl_games --task Isaac-Cartpole
uv run --extra sb3 isaaclab train --rl_library sb3 --task Isaac-Cartpole

Typical training workflow

Before committing to a long run, verify the environment and the complete training path with small smoke tests.

First, check that the task resets and steps without an RL library:

uv run isaaclab random_agent --task Isaac-Cartpole --num_envs 16

Then run a few training iterations on a limited number of environments:

uv run isaaclab train --rl_library rsl_rl --task Isaac-Cartpole \
    --num_envs 64 --max_iterations 10

If both commands succeed, remove the smoke-test overrides and use the task’s tuned defaults.

Monitor training

Start TensorBoard in a second terminal:

uv run python -m tensorboard.main --logdir logs

Focus on trends across multiple iterations:

• Mean reward should generally improve, although its absolute value is task-specific.

• Mean episode length depends on the task. Longer episodes are useful for a balance task but not necessarily for a goal-completion task.

• Throughput helps identify systems bottlenecks after changes to the number of environments, sensors, or rendering.

• Losses, entropy, KL divergence, and action standard deviation help reveal unstable updates or stalled exploration. Exact metric names vary by library.

Evaluate a policy

Use play with one of the following checkpoint selectors:

Selector	Behavior
latest	Loads the highest-step checkpoint from the newest compatible local run.
best	Loads the best or final checkpoint when the library records one, and otherwise falls back to latest.
pretrained	Downloads a published checkpoint for a supported task and backend.
/path/to/checkpoint	Loads a specific checkpoint.

For example, play the best local checkpoint and record a short video:

uv run --extra video isaaclab play --rl_library rsl_rl \
    --task Isaac-Cartpole --checkpoint best --video --video_length 200

Hint

play applies the environment config’s play_mode() method: it caps the scene at 50 environments and disables observation noise or corruption, depending on the workflow. Override that method on a task config to customize playback.

Pretrained checkpoints

Published pretrained checkpoints are available only for supported core tasks, and availability may vary by RL library and backend combination. Other registered tasks, including contributed tasks, are not covered by the published checkpoint set.

Pass --checkpoint pretrained to load the published policy matching the resolved task configuration. The selector does not guarantee that an artifact exists for every registered task: if the matching artifact has not been published, the command reports that it is unavailable and exits. In that case, train the task locally and use latest or an explicit checkpoint path.

Maintainers can generate the preferred core-task checkpoint matrix with scripts/tools/train_and_publish_checkpoints.py. Use --list --all --core to list the tasks and backend combinations targeted for publication by the current source tree. This matrix is not a live check of the remote asset store; a listed combination becomes usable with --checkpoint pretrained only after its checkpoint has been uploaded.

uv run python scripts/tools/train_and_publish_checkpoints.py \
    --list --all --core

Resume training

Resume from the latest compatible checkpoint:

uv run isaaclab train --rl_library rsl_rl --task Isaac-Cartpole \
    --checkpoint latest

When loading an explicit checkpoint, use the same task, agent, ML framework, and observation/action presets used during training. A checkpoint stores policy state; it cannot make incompatible observations or actions compatible.

Configure an experiment

Each task registers one or more agent configurations for the libraries it supports. Start from the closest maintained configuration under source/isaaclab_tasks/isaaclab_tasks/<task-family>/.../agents/ instead of creating one from scratch.

Discover tasks and agents

List registered tasks, then inspect the task-specific help:

uv run python scripts/environments/list_envs.py
uv run isaaclab train --rl_library rsl_rl --task Isaac-Cartpole --help

Use --agent to select an alternate registered configuration. For example:

uv run isaaclab train --rl_library rsl_rl --task Isaac-Cartpole \
    --agent rsl_rl_with_symmetry_cfg_entry_point \
    --run_name ppo_with_symmetry

Agent configuration formats are library-specific:

• RSL-RL uses Python configuration classes derived from RslRlBaseRunnerCfg.

• RL-Games, skrl, and Stable-Baselines3 use library-specific dictionaries or YAML files.

• RLinf uses a dedicated VLA post-training configuration.

When a task offers multiple observation or action presets, choose an agent whose network matches the selected preset.

Hint

If you omit --rl_library, train and play load the task’s registered default_agent. Most core tasks default to RSL-RL; the multi-agent Pendulum task defaults to skrl.

Override configuration with Hydra

Hydra allows you to override environment and agent configurations after the regular command-line options:

uv run isaaclab train --rl_library rsl_rl --task Isaac-Cartpole \
    --seed 2024 --run_name cartpole_seed_2024 \
    env.actions.joint_effort.scale=10.0 \
    agent.algorithm.learning_rate=0.0005

See Hydra Configuration System for quoting rules, list values, and multirun sweeps.

Select backends and presets

Tasks can expose named selectors for physics, rendering, observations, actions, and other domains. Append selectors without leading dashes:

uv run isaaclab train --rl_library rsl_rl --task Isaac-Cartpole \
    physics=newton_mjwarp

uv run isaaclab train --rl_library rsl_rl \
    --task Isaac-Cartpole-Camera-Direct \
    physics=newton_mjwarp renderer=newton_renderer presets=rgb

Not every task supports every backend. See Backends and Presets for the presets declared by a task.

Important

Use the same physics, renderer, domain, and observation/action presets for training and playback. Changing an observation or action preset can change the policy architecture and cause checkpoint shape errors. This is a feature and reflects that the selected configuration defines the policy contract.

Scale training

Isaac Lab collects experience from many environments in parallel. --num_envs controls the number of simulation instances. Increasing it can improve sample collection until simulation cost, optimizer structure, or GPU memory becomes the bottleneck. Use --num_envs to scale up or down as needed, but recognize that more environments do not always make training faster.

Isaac Lab also supports distributed training for RSL-RL, RL-Games, and skrl. See Multi-GPU and Multi-Node Training for details on scaling training across multiple GPUs.

Specialized workflows

The standard training workflow is sufficient for most tasks. The following workflows are useful when transferring an existing policy, training multiple agents, using JAX, or post-training a vision-language-action model.

RSL-RL distillation

Distillation transfers behavior from a trained teacher policy to a student policy. The student learns to reproduce the teacher’s actions, often using a different observation set or a smaller network. This is useful when the teacher uses information that will not be available at deployment time. For example, you can train a state-based policy and distill it to a vision-based policy.

First, train the teacher:

uv run isaaclab train --rl_library rsl_rl \
    --task Isaac-Velocity-Flat-AnymalD

Then select the registered distillation agent and load the teacher checkpoint:

uv run isaaclab train --rl_library rsl_rl \
    --task Isaac-Velocity-Flat-AnymalD \
    --agent rsl_rl_distillation_cfg_entry_point \
    --checkpoint /path/to/teacher.pt

The task and distillation configuration determine which observations are available to the teacher and student. Make sure the checkpoint was produced by a compatible teacher configuration.

skrl multi-agent training

Multi-agent reinforcement learning trains multiple agents that act in the same environment. skrl supports two common approaches:

• MAPPO uses information from all agents while training the value function, but allows each agent to act from its own observations at runtime. This centralized-training, decentralized-execution approach can help agents learn coordinated behavior.

• IPPO trains each agent independently. It is simpler and provides a useful baseline, but it does not explicitly use information from the other agents during optimization.

For example, train the Shadow Hand handover task with MAPPO:

uv run --extra skrl isaaclab train --rl_library skrl \
    --task Isaac-Shadow-Handover-Direct \
    --algorithm MAPPO

Use --algorithm IPPO to run the corresponding independent-policy workflow. The selected task must expose a multi-agent interface supported by the algorithm.

skrl training with JAX

skrl can also train policies with JAX instead of PyTorch. This is useful when integrating with a JAX-based learning stack or experimenting with JAX compilation and execution:

uv run --extra skrl isaaclab train --rl_library skrl \
    --task Isaac-Reach-Franka \
    --ml_framework jax

Install a CUDA-enabled JAX build that matches your platform before using this workflow. JAX preallocates GPU memory by default, so ensure that the simulation and learner can share the available memory. See the skrl installation guide and the JAX installation guide.

RLinf VLA post-training

Vision-language-action (VLA) models map visual observations and language instructions to robot actions. RLinf uses reinforcement learning to adapt a pretrained VLA model to a task, improving its behavior using task rewards rather than demonstrations alone.

Provide an RLinf experiment configuration and the base model to post-train:

uv run --extra rlinf isaaclab train --rl_library rlinf \
    --config_name isaaclab_ppo_gr00t_assemble_trocar \
    --model_path /path/to/base_model

VLA post-training typically requires substantially more GPU memory than training a small policy from scratch. See RL Post-Training for VLA Models for installation, distributed execution, configuration, and evaluation.

Programmatic use

Downstream applications and automated scripts can invoke the same training dispatcher used by the command line. Constructing a request directly avoids creating an argparse.Namespace and provides a stable interface for launching training from Python:

from isaaclab_rl import TrainingRequest, train

train(
    TrainingRequest(
        backend="rsl_rl",
        task="Isaac-Cartpole",
        max_iterations=100,
    )
)

Use PlaybackRequest with play() for playback. Place options understood by the selected RL library in backend_args. Place Hydra overrides and preset selectors in hydra_args.

Troubleshooting

Out of memory

Reduce --num_envs first. This usually provides the largest memory reduction without changing the task itself. For camera-based tasks, also consider reducing the image resolution, number of captured views, rollout length, or policy size.

Disable the interactive visualizer during performance runs. Remember that collision geometry, contacts, and deformable bodies consume simulation memory independently of the policy and rollout buffers.

When using JAX, account for its default GPU-memory preallocation in addition to the memory required by the simulation.

NaNs in observations or the policy

NaNs often originate in an unstable simulation or invalid reset state and then propagate through the observations, rewards, and learner. Reproduce the failure without training when possible, and locate the first value that becomes non-finite.

Check:

• reset joint positions, velocities, and object poses;

• actuator gains, limits, and action scaling;

• contact geometry, masses, inertias, and unexpectedly large impulses;

• the physics time step, substeps, and solver iterations; and

• reward or observation terms containing unsafe division, normalization, or square roots.

Fix the invalid state or calculation rather than masking the problem by clamping every policy input. Then repeat the training smoke test.

Training is stable but does not learn

Verify the environment contract before tuning hyperparameters:

• actions control the intended joints;

• observations change as the environment changes;

• rewards increase when the agent makes progress; and

• terminations and resets occur under the expected conditions.

Compare the configuration with the closest maintained task, then change one factor at a time. For each experiment, record the task, RL library, physics backend, domain presets, seed, number of environments, agent configuration, and Hydra overrides. Without this information, apparently small configuration differences can be mistaken for algorithmic regressions.

Checkpoint does not load

Verify that the playback or resumed-training command uses the same RL library, task, agent configuration, ML framework, and observation and action presets as the original run. Tensor-shape errors usually indicate that one of these settings changed.

Prefer the latest or best checkpoint selectors when available. Manifest discovery filters incompatible runs before attempting to load their checkpoints.

Next steps

• Training with an RL Agent explains how an Isaac Lab environment is wrapped for an RL library.

• Configuring an RL Agent walks through registering and selecting agent configurations.

• Hydra Configuration System covers command-line overrides and sweeps.

• Multi-GPU and Multi-Node Training covers multi-GPU and multi-node training.

• Reproducibility and Determinism covers reproducible experiments.

• Capturing sensor frames during training covers image-observation diagnostics.
