Setting up Visual Studio Code

Setting up Visual Studio Code#

This is optional. You do not need to use VScode to use Isaac Lab

Visual Studio Code has proven an invaluable tool for the development of Isaac Lab. The Isaac Lab repository includes the VSCode files for setting up your development environment. These are included in the .vscode directory and include the following files:

.vscode
├── tools
│   ├── launch.template.json
│   ├── settings.template.json
│   └── setup_vscode.py
├── extensions.json
├── launch.json  # <- this is generated by setup_vscode.py
├── settings.json  # <- this is generated by setup_vscode.py
└── tasks.json

To setup the IDE, please follow these instructions:

  1. Open the IsaacLab directory on Visual Studio Code IDE

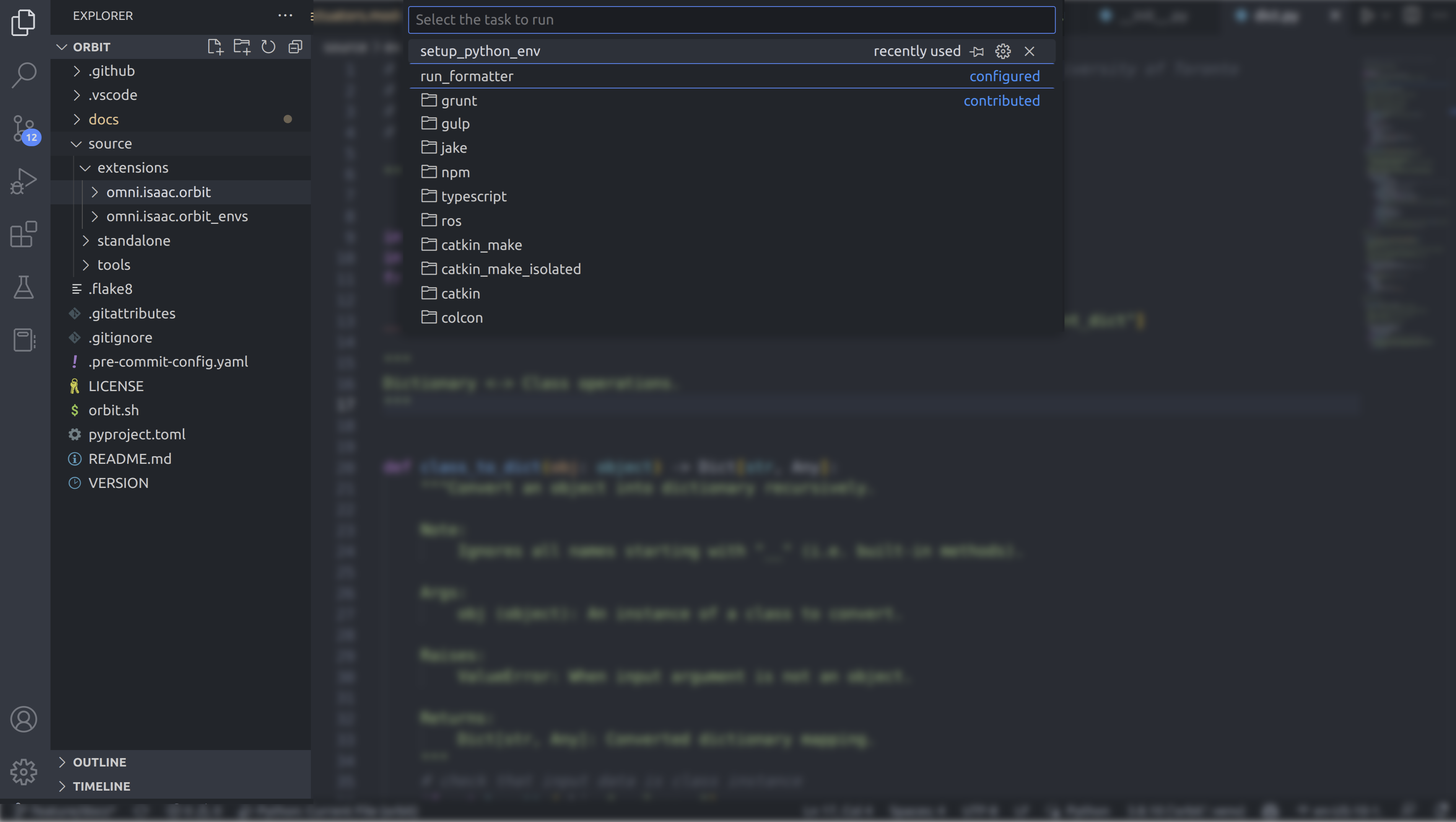

  2. Run VSCode Tasks, by pressing Ctrl+Shift+P, selecting Tasks: Run Task and running the setup_python_env in the drop down menu.

    VSCode Tasks

Note

If this is your first time running tasks in VS Code, you may be prompted to select how to handle warnings. Simply follow the prompts until the task window closes.

If everything executes correctly, it should create the following files:

  • .vscode/launch.json: Contains the launch configurations for debugging python code.

  • .vscode/settings.json: Contains the settings for the python interpreter and the python environment.

For more information on VSCode support for Omniverse, please refer to the following links:

Configuring the python interpreter#

In the provided configuration, we set the default python interpreter to use the python executable provided by Omniverse. This is specified in the .vscode/settings.json file:

{
   "python.defaultInterpreterPath": "${workspaceFolder}/_isaac_sim/python.sh",
}

If you want to use a different python interpreter (for instance, from your conda environment), you need to change the python interpreter used by selecting and activating the python interpreter of your choice in the bottom left corner of VSCode, or opening the command palette (Ctrl+Shift+P) and selecting Python: Select Interpreter.

For more information on how to set python interpreter for VSCode, please refer to the VSCode documentation.
