Interacting with a surface gripper

Interacting with a surface gripper#

This tutorial shows how to interact with an articulated robot with a surface gripper attached to its end-effector in the simulation. It is a continuation of the Interacting with an articulation tutorial, where we learned how to interact with an articulated robot. Note that as of IsaacSim 5.0 the surface gripper are only supported on the cpu backend.

The Code#

The tutorial corresponds to the run_surface_gripper.py script in the scripts/tutorials/01_assets directory.

Code for run_surface_gripper.py
  1# Copyright (c) 2022-2026, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
  2# All rights reserved.
  3#
  4# SPDX-License-Identifier: BSD-3-Clause
  5
  6"""This script demonstrates how to spawn a pick-and-place robot equipped with a surface gripper and interact with it.
  7
  8.. code-block:: bash
  9
 10    # Usage
 11    ./isaaclab.sh -p scripts/tutorials/01_assets/run_surface_gripper.py --device=cpu
 12
 13When running this script make sure the --device flag is set to cpu. This is because the surface gripper is
 14currently only supported on the CPU.
 15"""
 16
 17"""Launch Isaac Sim Simulator first."""
 18
 19import argparse
 20
 21from isaaclab.app import AppLauncher
 22
 23# add argparse arguments
 24parser = argparse.ArgumentParser(description="Tutorial on spawning and interacting with a Surface Gripper.")
 25# append AppLauncher cli args
 26AppLauncher.add_app_launcher_args(parser)
 27# tutorials should open Kit visualizer by default
 28parser.set_defaults(visualizer=["kit"])
 29# parse the arguments
 30args_cli = parser.parse_args()
 31
 32# launch omniverse app
 33app_launcher = AppLauncher(args_cli)
 34simulation_app = app_launcher.app
 35
 36"""Rest everything follows."""
 37
 38import torch
 39import warp as wp
 40from isaaclab_physx.assets import SurfaceGripper, SurfaceGripperCfg
 41
 42import isaaclab.sim as sim_utils
 43from isaaclab.assets import Articulation
 44from isaaclab.sim import SimulationContext
 45
 46##
 47# Pre-defined configs
 48##
 49from isaaclab_assets import PICK_AND_PLACE_CFG  # isort:skip
 50
 51
 52def design_scene():
 53    """Designs the scene."""
 54    # Ground-plane
 55    cfg = sim_utils.GroundPlaneCfg()
 56    cfg.func("/World/defaultGroundPlane", cfg)
 57    # Lights
 58    cfg = sim_utils.DomeLightCfg(intensity=3000.0, color=(0.75, 0.75, 0.75))
 59    cfg.func("/World/Light", cfg)
 60
 61    # Create separate groups called "Origin1", "Origin2"
 62    # Each group will have a robot in it
 63    origins = [[2.75, 0.0, 0.0], [-2.75, 0.0, 0.0]]
 64    # Origin 1
 65    sim_utils.create_prim("/World/Origin1", "Xform", translation=origins[0])
 66    # Origin 2
 67    sim_utils.create_prim("/World/Origin2", "Xform", translation=origins[1])
 68
 69    # Articulation: First we define the robot config
 70    pick_and_place_robot_cfg = PICK_AND_PLACE_CFG.copy()
 71    pick_and_place_robot_cfg.prim_path = "/World/Origin.*/Robot"
 72    pick_and_place_robot = Articulation(cfg=pick_and_place_robot_cfg)
 73
 74    # Surface Gripper: Next we define the surface gripper config
 75    surface_gripper_cfg = SurfaceGripperCfg()
 76    # We need to tell the View which prim to use for the surface gripper
 77    surface_gripper_cfg.prim_path = "/World/Origin.*/Robot/picker_head/SurfaceGripper"
 78    # We can then set different parameters for the surface gripper, note that if these parameters are not set,
 79    # the View will try to read them from the prim.
 80    surface_gripper_cfg.max_grip_distance = 0.1  # [m] (Maximum distance at which the gripper can grasp an object)
 81    surface_gripper_cfg.shear_force_limit = 500.0  # [N] (Force limit in the direction perpendicular direction)
 82    surface_gripper_cfg.coaxial_force_limit = 500.0  # [N] (Force limit in the direction of the gripper's axis)
 83    surface_gripper_cfg.retry_interval = 0.1  # seconds (Time the gripper will stay in a grasping state)
 84    # We can now spawn the surface gripper
 85    surface_gripper = SurfaceGripper(cfg=surface_gripper_cfg)
 86
 87    # return the scene information
 88    scene_entities = {"pick_and_place_robot": pick_and_place_robot, "surface_gripper": surface_gripper}
 89    return scene_entities, origins
 90
 91
 92def run_simulator(
 93    sim: sim_utils.SimulationContext, entities: dict[str, Articulation | SurfaceGripper], origins: torch.Tensor
 94):
 95    """Runs the simulation loop."""
 96    # Extract scene entities
 97    robot: Articulation = entities["pick_and_place_robot"]
 98    surface_gripper: SurfaceGripper = entities["surface_gripper"]
 99
100    # Define simulation stepping
101    sim_dt = sim.get_physics_dt()
102    count = 0
103    # Simulation loop
104    while simulation_app.is_running():
105        # Reset
106        if count % 500 == 0:
107            # reset counter
108            count = 0
109            # reset the scene entities
110            # root state
111            # we offset the root state by the origin since the states are written in simulation world frame
112            # if this is not done, then the robots will be spawned at the (0, 0, 0) of the simulation world
113            root_pose = robot.data.default_root_pose.torch.clone()
114            root_pose[:, :3] += origins
115            robot.write_root_pose_to_sim_index(root_pose=root_pose)
116            root_vel = robot.data.default_root_vel.torch.clone()
117            robot.write_root_velocity_to_sim_index(root_velocity=root_vel)
118            # set joint positions with some noise
119            joint_pos, joint_vel = (
120                robot.data.default_joint_pos.torch.clone(),
121                robot.data.default_joint_vel.torch.clone(),
122            )
123            joint_pos += torch.rand_like(joint_pos) * 0.1
124            robot.write_joint_position_to_sim_index(position=joint_pos)
125            robot.write_joint_velocity_to_sim_index(velocity=joint_vel)
126            # clear internal buffers
127            robot.reset()
128            print("[INFO]: Resetting robot state...")
129            # Opens the gripper and makes sure the gripper is in the open state
130            surface_gripper.reset()
131            print("[INFO]: Resetting gripper state...")
132
133        # Sample a random command between -1 and 1.
134        gripper_commands = torch.rand(surface_gripper.num_instances) * 2.0 - 1.0
135        # The gripper behavior is as follows:
136        # -1 < command < -0.3 --> Gripper is Opening
137        # -0.3 < command < 0.3 --> Gripper is Idle
138        # 0.3 < command < 1 --> Gripper is Closing
139        print(f"[INFO]: Gripper commands: {gripper_commands}")
140        mapped_commands = [
141            "Opening" if command < -0.3 else "Closing" if command > 0.3 else "Idle" for command in gripper_commands
142        ]
143        print(f"[INFO]: Mapped commands: {mapped_commands}")
144        # Set the gripper command
145        surface_gripper.set_grippers_command(gripper_commands)
146        # Write data to sim
147        surface_gripper.write_data_to_sim()
148        # Perform step
149        sim.step()
150        # Increment counter
151        count += 1
152        # Read the gripper state from the simulation
153        surface_gripper.update(sim_dt)
154        # Read the gripper state from the buffer
155        surface_gripper_state = surface_gripper.state
156        # The gripper state is a list of integers that can be mapped to the following:
157        # -1 --> Open
158        # 0 --> Closing
159        # 1 --> Closed
160        # Print the gripper state
161        print(f"[INFO]: Gripper state: {surface_gripper_state}")
162        mapped_commands = [
163            "Open" if state == -1 else "Closing" if state == 0 else "Closed"
164            for state in wp.to_torch(surface_gripper_state).tolist()
165        ]
166        print(f"[INFO]: Mapped commands: {mapped_commands}")
167
168
169def main():
170    """Main function."""
171    # Load kit helper
172    sim_cfg = sim_utils.SimulationCfg(device=args_cli.device)
173    sim = SimulationContext(sim_cfg)
174    # Set main camera
175    sim.set_camera_view([2.75, 7.5, 10.0], [2.75, 0.0, 0.0])
176    # Design scene
177    scene_entities, scene_origins = design_scene()
178    scene_origins = torch.tensor(scene_origins, device=sim.device)
179    # Play the simulator
180    sim.reset()
181    # Now we are ready!
182    print("[INFO]: Setup complete...")
183    # Run the simulator
184    run_simulator(sim, scene_entities, scene_origins)
185
186
187if __name__ == "__main__":
188    # run the main function
189    main()
190    # close sim app
191    simulation_app.close()

The Code Explained#

Designing the scene#

Similarly to the previous tutorial, we populate the scene with a ground plane and a distant light. Then, we spawn an articulation from its USD file. This time a pick-and-place robot is spawned. The pick-and-place robot is a simple robot with 3 driven axes, its gantry allows it to move along the x and y axes, as well as up and down along the z-axis. Furthermore, the robot end-effector is outfitted with a surface gripper. The USD file for the pick-and-place robot contains the robot’s geometry, joints, and other physical properties as well as the surface gripper. Before implementing a similar gripper on your own robot, we recommend to check out the USD file for the gripper found on Isaaclab’s Nucleus.

For the pick-and-place robot, we use its pre-defined configuration object, you can find out more about it in the Writing an Asset Configuration tutorial. For the surface gripper, we also need to create a configuration object. This is done by instantiating a assets.SurfaceGripperCfg object and passing it the relevant parameters.

The available parameters are:

  • max_grip_distance: The maximum distance at which the gripper can grasp an object.

  • shear_force_limit: The maximum force the gripper can exert in the direction perpendicular to the gripper’s axis.

  • coaxial_force_limit: The maximum force the gripper can exert in the direction of the gripper’s axis.

  • retry_interval: The time the gripper will stay in a grasping state.

As seen in the previous tutorial, we can spawn the articulation into the scene in a similar fashion by creating an instance of the assets.Articulation class by passing the configuration object to its constructor. The same principle applies to the surface gripper. By passing the configuration object to the assets.SurfaceGripper constructor, the surface gripper is created and can be added to the scene. In practice, the object will only be initialized when the play button is pressed.

    # Create separate groups called "Origin1", "Origin2"
    # Each group will have a robot in it
    origins = [[2.75, 0.0, 0.0], [-2.75, 0.0, 0.0]]
    # Origin 1
    sim_utils.create_prim("/World/Origin1", "Xform", translation=origins[0])
    # Origin 2
    sim_utils.create_prim("/World/Origin2", "Xform", translation=origins[1])

    # Articulation: First we define the robot config
    pick_and_place_robot_cfg = PICK_AND_PLACE_CFG.copy()
    pick_and_place_robot_cfg.prim_path = "/World/Origin.*/Robot"
    pick_and_place_robot = Articulation(cfg=pick_and_place_robot_cfg)

    # Surface Gripper: Next we define the surface gripper config
    surface_gripper_cfg = SurfaceGripperCfg()
    # We need to tell the View which prim to use for the surface gripper
    surface_gripper_cfg.prim_path = "/World/Origin.*/Robot/picker_head/SurfaceGripper"
    # We can then set different parameters for the surface gripper, note that if these parameters are not set,
    # the View will try to read them from the prim.
    surface_gripper_cfg.max_grip_distance = 0.1  # [m] (Maximum distance at which the gripper can grasp an object)
    surface_gripper_cfg.shear_force_limit = 500.0  # [N] (Force limit in the direction perpendicular direction)
    surface_gripper_cfg.coaxial_force_limit = 500.0  # [N] (Force limit in the direction of the gripper's axis)
    surface_gripper_cfg.retry_interval = 0.1  # seconds (Time the gripper will stay in a grasping state)
    # We can now spawn the surface gripper
    surface_gripper = SurfaceGripper(cfg=surface_gripper_cfg)

Running the simulation loop#

Continuing from the previous tutorial, we reset the simulation at regular intervals, set commands to the articulation, step the simulation, and update the articulation’s internal buffers.

Resetting the simulation#

To reset the surface gripper, we only need to call the SurfaceGripper.reset() method which will reset the internal buffers and caches.

            # Opens the gripper and makes sure the gripper is in the open state
            surface_gripper.reset()

Stepping the simulation#

Applying commands to the surface gripper involves two steps:

  1. Setting the desired commands: This sets the desired gripper commands (Open, Close, or Idle).

  2. Writing the data to the simulation: Based on the surface gripper’s configuration, this step handles writes the converted values to the PhysX buffer.

In this tutorial, we use a random command to set the gripper’s command. The gripper behavior is as follows:

  • -1 < command < -0.3 –> Gripper is Opening

  • -0.3 < command < 0.3 –> Gripper is Idle

  • 0.3 < command < 1 –> Gripper is Closing

At every step, we randomly sample commands and set them to the gripper by calling the SurfaceGripper.set_grippers_command() method. After setting the commands, we call the SurfaceGripper.write_data_to_sim() method to write the data to the PhysX buffer. Finally, we step the simulation.

        # Sample a random command between -1 and 1.
        gripper_commands = torch.rand(surface_gripper.num_instances) * 2.0 - 1.0
        # The gripper behavior is as follows:
        # -1 < command < -0.3 --> Gripper is Opening
        # -0.3 < command < 0.3 --> Gripper is Idle
        # 0.3 < command < 1 --> Gripper is Closing
        print(f"[INFO]: Gripper commands: {gripper_commands}")
        mapped_commands = [
            "Opening" if command < -0.3 else "Closing" if command > 0.3 else "Idle" for command in gripper_commands
        ]
        print(f"[INFO]: Mapped commands: {mapped_commands}")
        # Set the gripper command
        surface_gripper.set_grippers_command(gripper_commands)
        # Write data to sim
        surface_gripper.write_data_to_sim()

Updating the state#

To know the current state of the surface gripper, we can query the assets.SurfaceGripper.state() property. This property returns a tensor of size [num_envs] where each element is either -1, 0, or 1 corresponding to the gripper state. This property is updated every time the assets.SurfaceGripper.update() method is called.

  • -1 –> Gripper is Open

  • 0 –> Gripper is Closing

  • 1 –> Gripper is Closed

        # Read the gripper state from the simulation
        surface_gripper.update(sim_dt)
        # Read the gripper state from the buffer
        surface_gripper_state = surface_gripper.state

The Code Execution#

To run the code and see the results, let’s run the script from the terminal:

./isaaclab.sh -p scripts/tutorials/01_assets/run_surface_gripper.py --device cpu

This command should open a stage with a ground plane, lights, and two pick-and-place robots. In the terminal, you should see the gripper state and the command being printed. To stop the simulation, you can either close the window, or press Ctrl+C in the terminal.

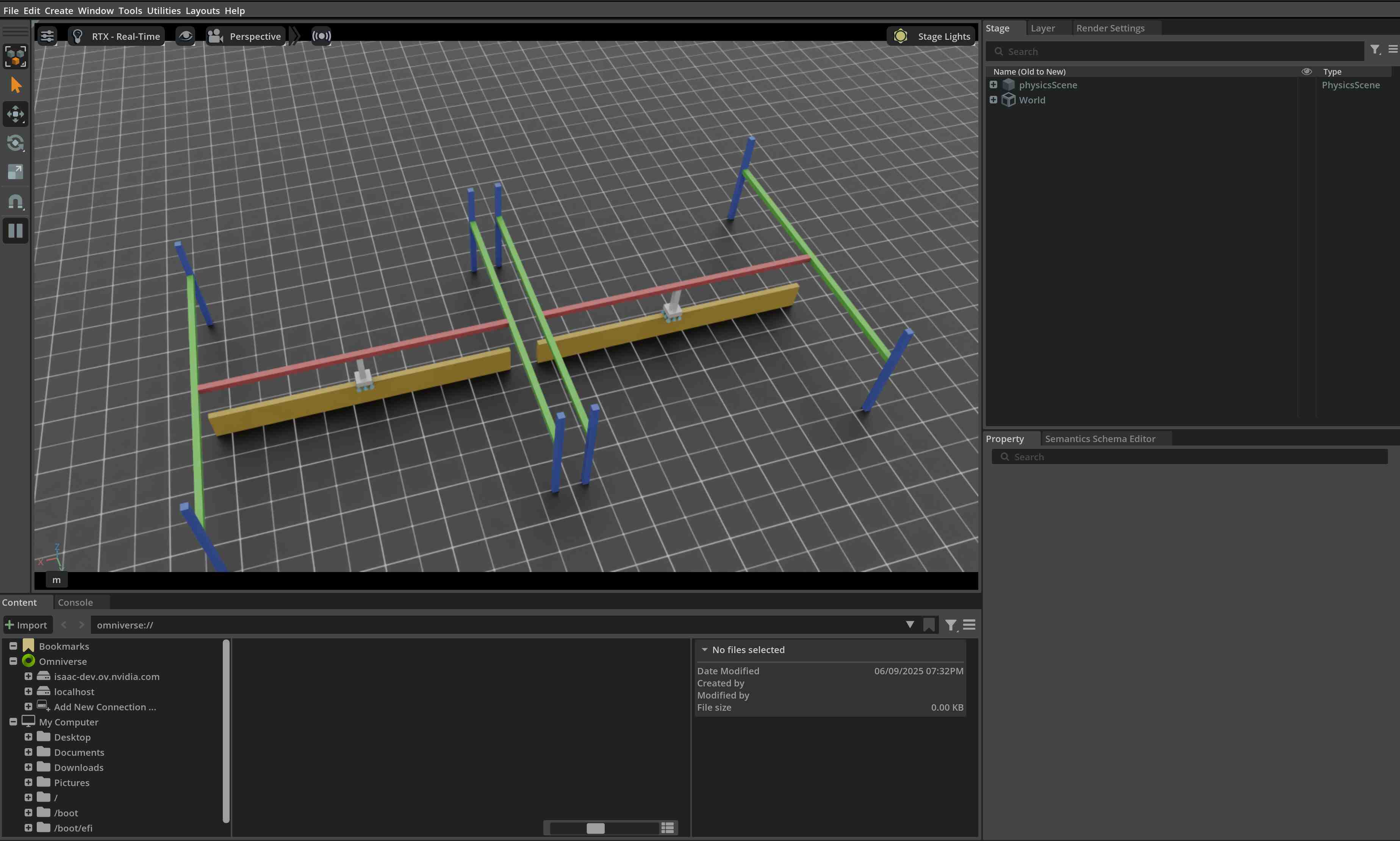

result of run_surface_gripper.py

In this tutorial, we learned how to create and interact with a surface gripper. We saw how to set commands and query the gripper state. We also saw how to update its buffers to read the latest state from the simulation.

In addition to this tutorial, we also provide a few other scripts that spawn different robots. These are included in the scripts/demos directory. You can run these scripts as:

# Spawn many pick-and-place robots and perform a pick-and-place task
./isaaclab.sh -p scripts/demos/pick_and_place.py

Note that in practice, the users would be expected to register their assets.SurfaceGripper instances inside a isaaclab.InteractiveScene object, which will automatically handle the calls to the assets.SurfaceGripper.write_data_to_sim() and assets.SurfaceGripper.update() methods.

# Create a scene
scene = InteractiveScene()

# Register the surface gripper
scene.surface_grippers["gripper"] = surface_gripper
