Creating visualization markers

Creating visualization markers#

This guide shows how to draw visualization markers: debug geometry (frames, arrows, spheres, custom meshes) rendered over the scene through markers.VisualizationMarkers. Markers are display-only: they carry no physics and do not affect the simulation.

For plain points, lines, and splines, Isaac Sim’s own isaacsim.util.debug_draw extension is lighter-weight. Use VisualizationMarkers when you need more complex shapes.

Markers are supported on Kit, Newton GL, Rerun, and Viser, but not yet on Newton RTX. See Visualization for how to enable them on a given visualizer.

Quick Start#

Run the packaged markers example:

uv run --extra isaacsim isaaclab example markers

./isaaclab.sh example markers

Pass --visualizer newton_gl (or another supported backend) to switch visualizers; defaults to kit.

../../_images/../_static/demos/markers.jpg

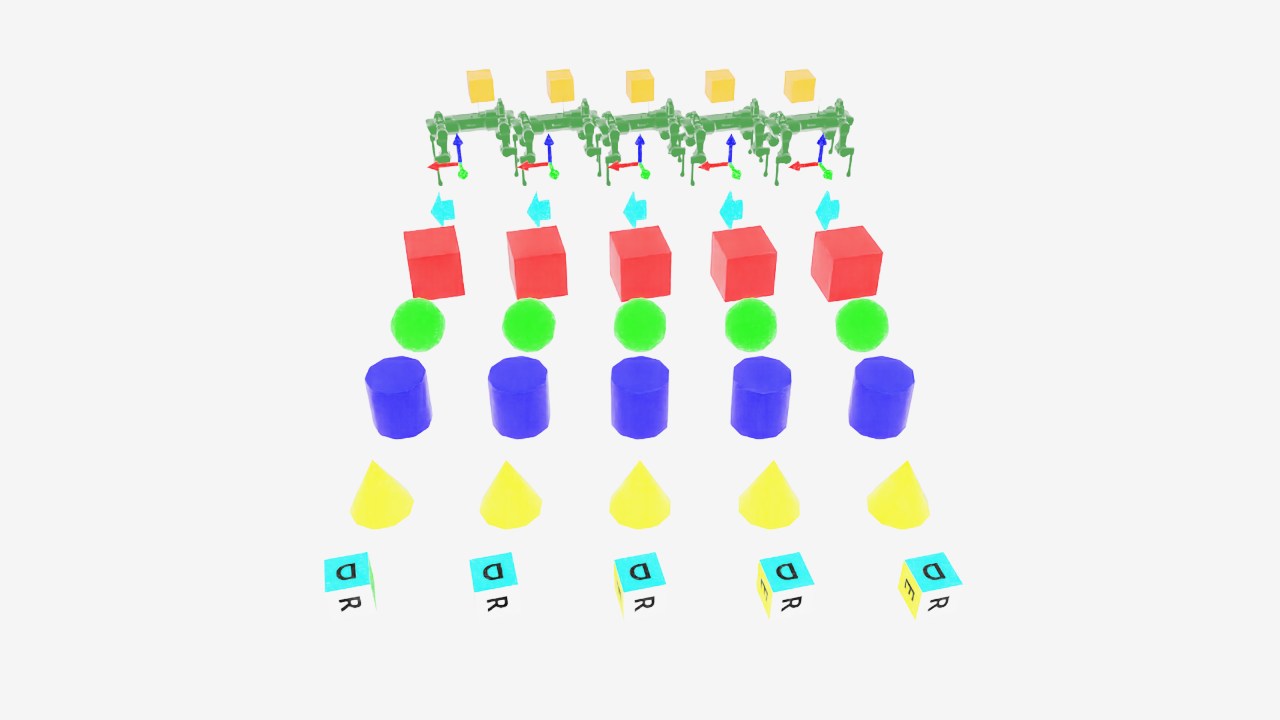

Every marker prototype from the example script, arranged in a grid. Each column rotates in place and periodically rolls forward to the next prototype.#

To stop, close the window or press Ctrl+C.

Code for markers.py
  1# Copyright (c) 2022-2026, The Isaac Lab Project Developers (https://github.com/isaac-sim/IsaacLab/blob/main/CONTRIBUTORS.md).
  2# All rights reserved.
  3#
  4# SPDX-License-Identifier: BSD-3-Clause
  5
  6"""This script demonstrates different types of markers.
  7
  8.. code-block:: bash
  9
 10    # Usage with default PhysX physics and default kit visualizer.
 11    uvx --from 'isaaclab[isaacsim]' isaaclab example markers
 12
 13"""
 14
 15import argparse
 16from typing import TYPE_CHECKING
 17
 18from isaaclab.app import add_launcher_args, launch_simulation
 19from isaaclab.utils import instantiate
 20
 21parser = argparse.ArgumentParser(
 22    description="This script demonstrates different types of markers.",
 23    conflict_handler="resolve",
 24)
 25parser.add_argument("--physics", default="isaacsim_physx", choices=["isaacsim_physx"], help="Physics backend.")
 26parser.add_argument("--max_steps", type=int, default=-1, help="Stop after this many steps; negative runs forever.")
 27add_launcher_args(parser)
 28parser.set_defaults(visualizer=["kit"])
 29args_cli = parser.parse_args()
 30if args_cli.max_steps == 0 or args_cli.max_steps < -1:
 31    parser.error("--max_steps must be positive or -1.")
 32
 33import torch
 34
 35import isaaclab.sim as sim_utils
 36from isaaclab.markers.visualization_markers_cfg import VisualizationMarkersCfg
 37from isaaclab.physics import PhysicsCfg
 38from isaaclab.utils.assets import ISAAC_NUCLEUS_DIR, ISAACLAB_NUCLEUS_DIR
 39from isaaclab.utils.math import quat_from_angle_axis
 40
 41if TYPE_CHECKING:
 42    from isaaclab.markers import VisualizationMarkers
 43
 44
 45def define_markers() -> "VisualizationMarkers":
 46    """Define markers with various different shapes."""
 47    marker_cfg = VisualizationMarkersCfg(
 48        prim_path="/Visuals/myMarkers",
 49        markers={
 50            "frame": sim_utils.UsdFileCfg(
 51                usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/UIElements/frame_prim.usd",
 52                scale=(0.5, 0.5, 0.5),
 53            ),
 54            "arrow_x": sim_utils.UsdFileCfg(
 55                usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/UIElements/arrow_x.usd",
 56                scale=(1.0, 0.5, 0.5),
 57                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(0.0, 1.0, 1.0)),
 58            ),
 59            "cube": sim_utils.CuboidCfg(
 60                size=(1.0, 1.0, 1.0),
 61                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(1.0, 0.0, 0.0)),
 62            ),
 63            "sphere": sim_utils.SphereCfg(
 64                radius=0.5,
 65                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(0.0, 1.0, 0.0)),
 66            ),
 67            "cylinder": sim_utils.CylinderCfg(
 68                radius=0.5,
 69                height=1.0,
 70                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(0.0, 0.0, 1.0)),
 71            ),
 72            "cone": sim_utils.ConeCfg(
 73                radius=0.5,
 74                height=1.0,
 75                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(1.0, 1.0, 0.0)),
 76            ),
 77            "mesh": sim_utils.UsdFileCfg(
 78                usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/Blocks/DexCube/dex_cube_instanceable.usd",
 79                scale=(10.0, 10.0, 10.0),
 80            ),
 81            "mesh_recolored": sim_utils.UsdFileCfg(
 82                usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/Blocks/DexCube/dex_cube_instanceable.usd",
 83                scale=(10.0, 10.0, 10.0),
 84                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(1.0, 0.25, 0.0)),
 85            ),
 86            "robot_mesh": sim_utils.UsdFileCfg(
 87                usd_path=f"{ISAACLAB_NUCLEUS_DIR}/Robots/ANYbotics/ANYmal-C/anymal_c.usd",
 88                scale=(2.0, 2.0, 2.0),
 89                visual_material=sim_utils.GlassMdlCfg(glass_color=(0.0, 0.1, 0.0)),
 90            ),
 91        },
 92    )
 93    return instantiate(marker_cfg)
 94
 95
 96def main():
 97    """Main function."""
 98    with launch_simulation(cfg=PhysicsCfg(), launcher_args=args_cli) as physics_cfg:
 99        sim_cfg = sim_utils.SimulationCfg(dt=0.01, device=args_cli.device, physics=physics_cfg)
100        sim = sim_utils.SimulationContext(sim_cfg)
101        # Set main camera
102        sim.set_camera_view([0.0, 18.0, 12.0], [0.0, 3.0, 0.0])
103
104        # Spawn things into stage
105        # Lights
106        cfg = sim_utils.DomeLightCfg(intensity=3000.0, color=(0.75, 0.75, 0.75))
107        cfg.func("/World/Light", cfg)
108
109        # create markers
110        my_visualizer = define_markers()
111
112        # define a grid of positions where the markers should be placed
113        num_markers_per_type = 5
114        grid_spacing = 2.0
115        # Calculate the half-width and half-height
116        half_width = (num_markers_per_type - 1) / 2.0
117        half_height = (my_visualizer.num_prototypes - 1) / 2.0
118        # Create the x and y ranges centered around the origin
119        x_range = torch.arange(-half_width * grid_spacing, (half_width + 1) * grid_spacing, grid_spacing)
120        y_range = torch.arange(-half_height * grid_spacing, (half_height + 1) * grid_spacing, grid_spacing)
121        # Create the grid
122        x_grid, y_grid = torch.meshgrid(x_range, y_range, indexing="ij")
123        x_grid = x_grid.reshape(-1)
124        y_grid = y_grid.reshape(-1)
125        z_grid = torch.zeros_like(x_grid)
126        # marker locations
127        marker_locations = torch.stack([x_grid, y_grid, z_grid], dim=1)
128        marker_indices = torch.arange(my_visualizer.num_prototypes).repeat(num_markers_per_type)
129
130        sim.reset()
131        print("[INFO]: Setup complete...")
132
133        # Yaw angle
134        yaw = torch.zeros_like(marker_locations[:, 0])
135        step_count = 0
136        # Step while a visualizer window is still open (or none exist, e.g. headless); works for kit and newton.
137        while sim.is_running() and (args_cli.max_steps < 0 or step_count < args_cli.max_steps):
138            # rotate the markers around the z-axis for visualization
139            marker_orientations = quat_from_angle_axis(yaw, torch.tensor([0.0, 0.0, 1.0]))
140            # visualize
141            my_visualizer.visualize(marker_locations, marker_orientations, marker_indices=marker_indices)
142            # roll corresponding indices to show how marker prototype can be changed
143            if yaw[0].item() % (0.5 * torch.pi) < 0.01:
144                marker_indices = torch.roll(marker_indices, 1)
145            # perform step
146            sim.step()
147            step_count += 1
148            # increment yaw
149            yaw += 0.01
150
151
152if __name__ == "__main__":
153    main()

Configuring markers#

VisualizationMarkersCfg takes:

  • prim_path: prim path where the marker UsdGeom.PointInstancer is created.

  • markers: a dict of marker prototypes. The key names the prototype; the value is its spawn config (any SpawnerCfg, including USD file references).

Note

Physics properties on a marker prototype’s spawn config are stripped on creation, since markers are not simulated.

def define_markers() -> "VisualizationMarkers":
    """Define markers with various different shapes."""
    marker_cfg = VisualizationMarkersCfg(
        prim_path="/Visuals/myMarkers",
        markers={
            "frame": sim_utils.UsdFileCfg(
                usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/UIElements/frame_prim.usd",
                scale=(0.5, 0.5, 0.5),
            ),
            "arrow_x": sim_utils.UsdFileCfg(
                usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/UIElements/arrow_x.usd",
                scale=(1.0, 0.5, 0.5),
                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(0.0, 1.0, 1.0)),
            ),
            "cube": sim_utils.CuboidCfg(
                size=(1.0, 1.0, 1.0),
                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(1.0, 0.0, 0.0)),
            ),
            "sphere": sim_utils.SphereCfg(
                radius=0.5,
                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(0.0, 1.0, 0.0)),
            ),
            "cylinder": sim_utils.CylinderCfg(
                radius=0.5,
                height=1.0,
                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(0.0, 0.0, 1.0)),
            ),
            "cone": sim_utils.ConeCfg(
                radius=0.5,
                height=1.0,
                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(1.0, 1.0, 0.0)),
            ),
            "mesh": sim_utils.UsdFileCfg(
                usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/Blocks/DexCube/dex_cube_instanceable.usd",
                scale=(10.0, 10.0, 10.0),
            ),
            "mesh_recolored": sim_utils.UsdFileCfg(
                usd_path=f"{ISAAC_NUCLEUS_DIR}/Props/Blocks/DexCube/dex_cube_instanceable.usd",
                scale=(10.0, 10.0, 10.0),
                visual_material=sim_utils.PreviewSurfaceCfg(diffuse_color=(1.0, 0.25, 0.0)),
            ),
            "robot_mesh": sim_utils.UsdFileCfg(
                usd_path=f"{ISAACLAB_NUCLEUS_DIR}/Robots/ANYbotics/ANYmal-C/anymal_c.usd",
                scale=(2.0, 2.0, 2.0),
                visual_material=sim_utils.GlassMdlCfg(glass_color=(0.0, 0.1, 0.0)),
            ),
        },
    )
    return instantiate(marker_cfg)

Drawing markers#

visualize() sets marker poses and, optionally, which prototype each marker instance uses via marker_indices.

my_visualizer.visualize(marker_locations, marker_orientations, marker_indices=marker_indices)

Arguments left as None keep their previous value. Passing a different number of rows than the last call resizes the marker instance count. See visualize()’s docstring for the full argument list (translations, orientations, scales, marker_indices, environment_ids).

Markers in practice#

Markers are commonly used to debug per-environment state during training, such as commanded vs. current velocity, or contact events:

Velocity arrow marker on an AnymalD robot

Velocity command (green) and current velocity (blue) arrow markers on an AnymalD robot.

Joint arrow markers on a Franka arm and contact sensor markers on a cube

Joint arrow markers on a Franka arm, with contact sensor markers on a cube.

See also#

  • Visualization: enabling markers per visualizer, and other visualizer features

  • Recording video: recording a marker-annotated scene to video
