Ray Caster

Ray Caster#

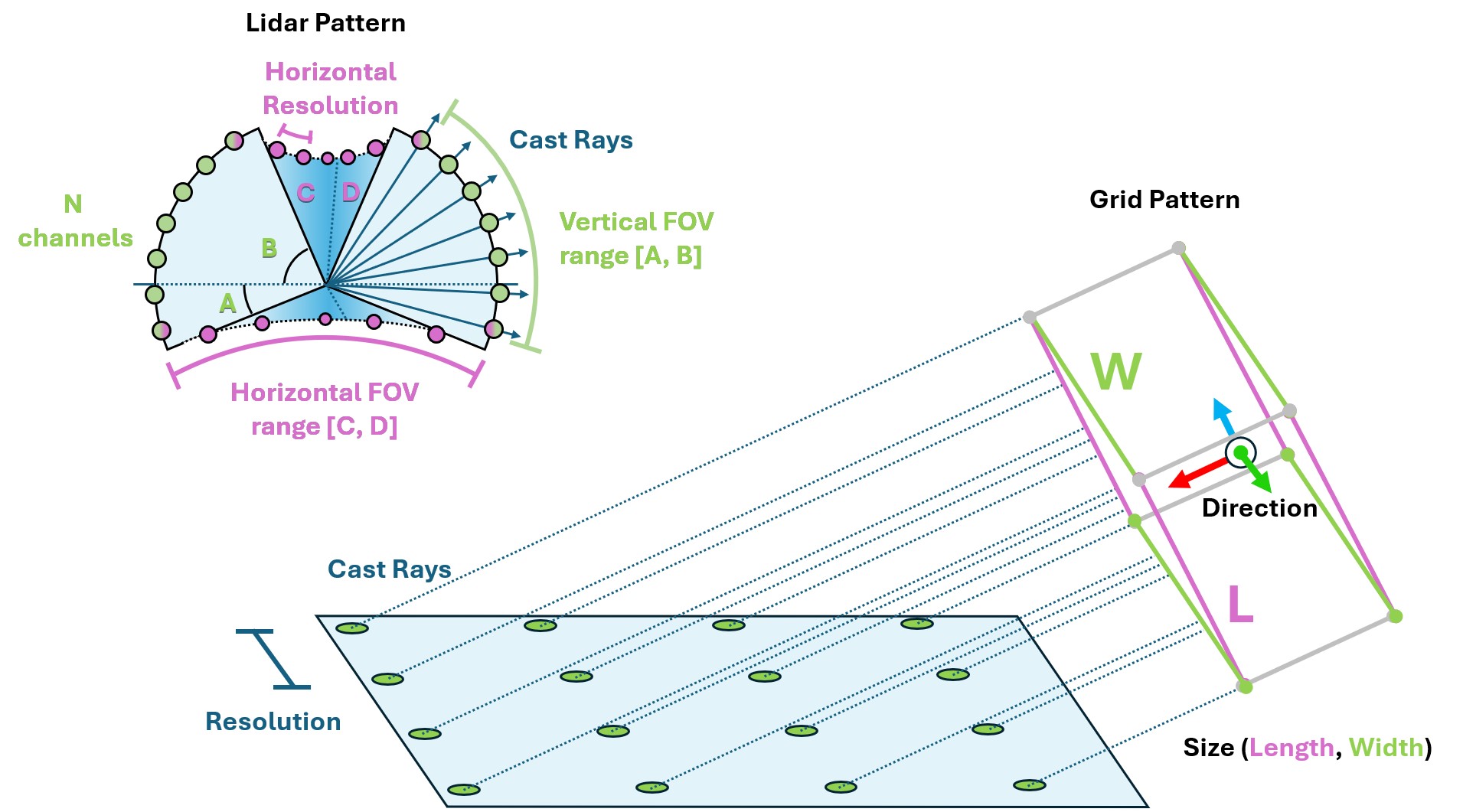

Ray patterns supported by the ray caster sensor

A ray caster reports the first collision along each ray in a chosen pattern. Rays do not bounce or respond to materials and opacity. Quadruped tasks use this sensor to measure terrain height around the robot.

The ray-casting implementation depends on the physics backend. With PhysX and OV PhysX, configured meshes are loaded into Warp when the sensor initializes and must remain static. With Newton, the sensor queries the live scene BVH and therefore sees every collision shape in its environment, global terrain, and dynamic bodies. Newton ignores mesh_prim_paths; use isaaclab_newton.sensors.NewtonRaycastSensorCfg to make that behavior explicit and to access Newton-specific options.

Choose a ray pattern and a parent frame. The frame and sensor offset set the pose; the pattern sets the ray origins and directions. Built-in patterns include lidar and grids.

@configclass
class RaycasterSensorSceneCfg(InteractiveSceneCfg):
    """Design the scene with sensors on the robot."""

    # ground plane
    ground = AssetBaseCfg(
        prim_path="/World/Ground",
        spawn=sim_utils.UsdFileCfg(
            usd_path=f"{ISAAC_NUCLEUS_DIR}/Environments/Terrains/rough_plane.usd",
            scale=(1, 1, 1),
        ),
    )

    # lights
    dome_light = AssetBaseCfg(
        prim_path="/World/Light", spawn=sim_utils.DomeLightCfg(intensity=3000.0, color=(0.75, 0.75, 0.75))
    )

    # robot
    robot = replace(ANYMAL_C_CFG, prim_path="{ENV_REGEX_NS}/Robot")

    ray_caster = RayCasterCfg(
        prim_path="{ENV_REGEX_NS}/Robot/base",
        update_period=1 / 60,
        offset=RayCasterCfg.OffsetCfg(pos=(0, 0, 0.5)),
        mesh_prim_paths=["/World/Ground"],
        ray_alignment="yaw",
        pattern_cfg=patterns.LidarPatternCfg(
            channels=100, vertical_fov_range=[-90, 90], horizontal_fov_range=[-90, 90], horizontal_res=1.0
        ),
        debug_vis=bool(args_cli.visualizer),
    )

Pattern angles use degrees. Enable debug visualization to inspect the pattern, then disable it when measuring performance.

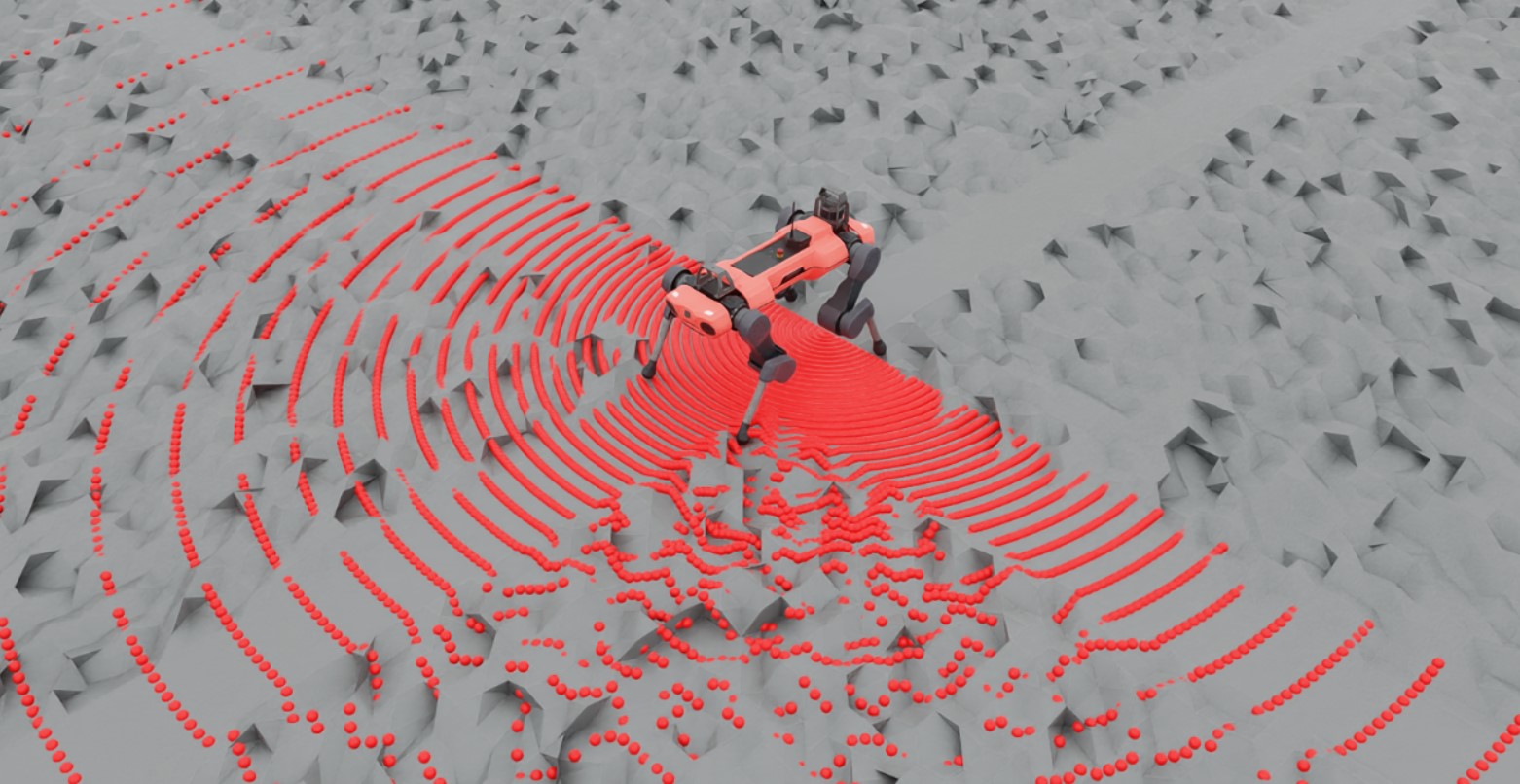

Lidar Pattern visualized

Read hit positions from data.ray_hits_w during simulation:

def run_simulator(sim: sim_utils.SimulationContext, scene: InteractiveScene):
  .
  .
  .
  # Simulate physics
  while sim.is_running():
    .
    .
    .
    # print information from the sensors
      print("-------------------------------")
      print(scene["ray_caster"])
      print("Ray cast hit results: ", scene["ray_caster"].data.ray_hits_w)

-------------------------------
Ray-caster @ '/World/envs/env_.*/Robot/base/lidar_cage':
        view type            : <class 'isaacsim.core.experimental.prims.xform_prim.XformPrim'>
        update period (s)    : 0.016666666666666666
        number of meshes     : 1
        number of sensors    : 1
        number of rays/sensor: 18000
        total number of rays : 18000
Ray cast hit results:  tensor([[[-0.3698,  0.0357,  0.0000],
        [-0.3698,  0.0357,  0.0000],
        [-0.3698,  0.0357,  0.0000],
        ...,
        [    inf,     inf,     inf],
        [    inf,     inf,     inf],
        [    inf,     inf,     inf]]], device='cuda:0')
-------------------------------

Hit positions have shape (N, B, 3), where N is the number of sensors and B is the number of rays. Missed rays return inf. The repeated points in this example come from rays at the bottom pole of the hemispherical lidar pattern: all 180 horizontal samples meet there.

Try different patterns in the example below to inspect their hit positions.

Code for raycaster_sensor.py
