Run Agentic Environment Generation#

Complete the shared Prerequisites before running this workflow.

The Arena environment generation agent infers an ArenaEnvGraphSpec YAML from a user prompt. The agent runs in two modes:

  • GUI runner — a browser live editor. Generate from a prompt, then edit, visualize, and simulation-preview the spec in the same session.

  • CLI runner — a one-shot, non-interactive pipeline. It writes the YAML and editing can be done manually in a text editor. Use it for scripted or batch generation.

Start the live editor and open http://localhost:8501 in a browser:

python isaaclab_arena_examples/agentic_environment_generation/gui_runner.py

In the Generate from prompt panel, enter the prompt and click Generate spec:

Droid picks up the banana from the maple table and places it on the plate.
There are two bagels and one bowl on the table.

The returned YAML is loaded into the editor and assets are rendered on the right side of the editor. You can see the thumbnails of each object in the scene and its spatial relationships with each other. You can also see the task description in the lower part of the editor.

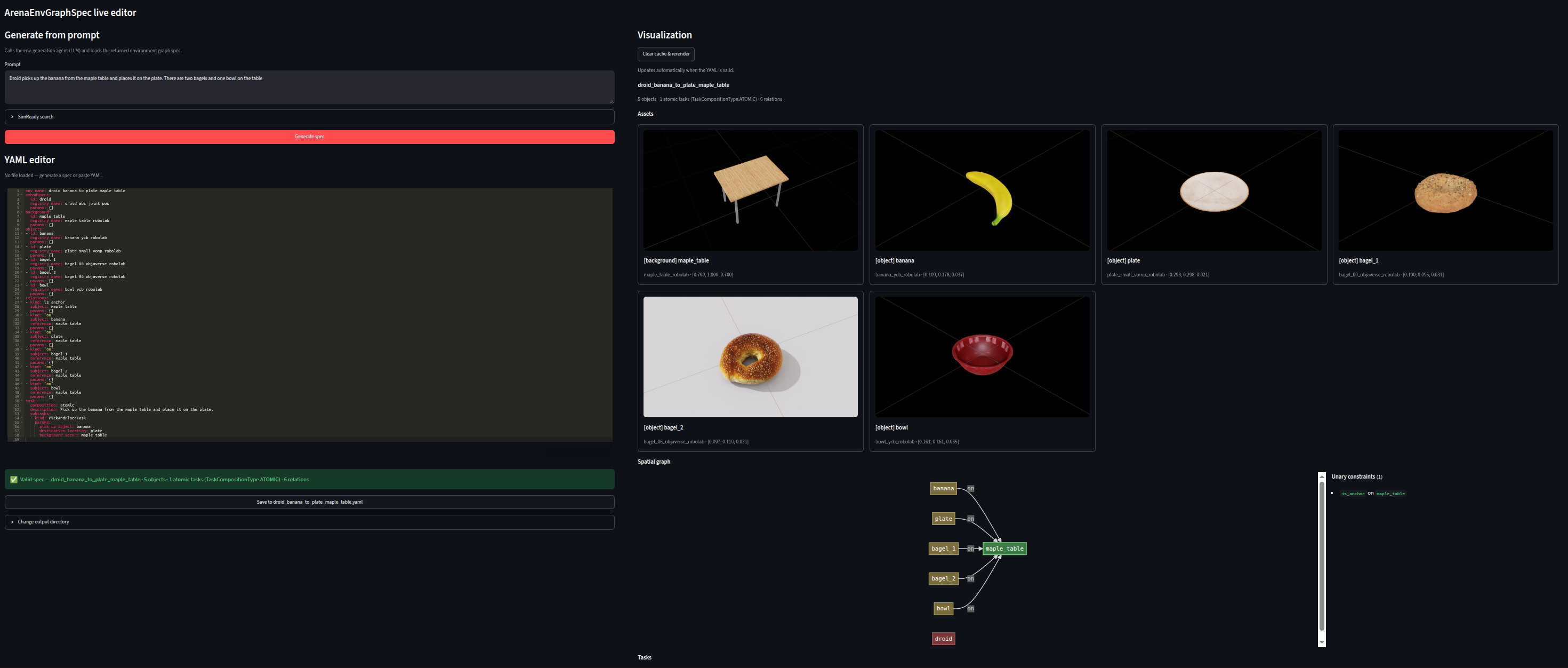

GUI runner view of the environment graph spec.

GUI runner view of the environment graph spec: the YAML editor on the left, and the environment graph visualization and task description on the right.#

Run the runner in resolve mode:

python isaaclab_arena_examples/agentic_environment_generation/cli_runner.py \
   --mode resolve \
   --prompt "Droid picks up the banana from the maple table and places it on the plate. There are two bagels and one bowl on the table."

The runner prints the generated graph and writes <env_name>.yaml under isaaclab_arena_environments/agent_generated/.
