Run Agentic Environment Generation#

Complete the shared Prerequisites before running this workflow.

The Arena environment generation agent infers an ArenaEnvGraphSpec YAML from a user prompt. The agent runs in two modes:

  • GUI runner — a browser live editor. Generate from a prompt, then edit, visualize, and simulation-preview the spec in the same session.

  • CLI runner — a one-shot, non-interactive pipeline. It writes the YAML and editing can be done manually in a text editor. Use it for scripted or batch generation.

Describe the object to pick up as a category rather than as a single asset, and say that it varies across environments. That is the cue for the agent to emit an object_sets entry instead of a fixed objects entry.

Start the live editor and open http://localhost:8501 in a browser:

python isaaclab_arena_examples/agentic_environment_generation/gui_runner.py

In the Generate from prompt panel, enter the prompt and click Generate spec:

Droid picks up a fruit from the maple table and places it into the bowl on the table.
Each environment should get a different fruit.

The returned YAML is loaded into the editor and assets are rendered on the right side of the editor. An object set is drawn as a single node, with a thumbnail per member, so you can check the whole set at a glance.

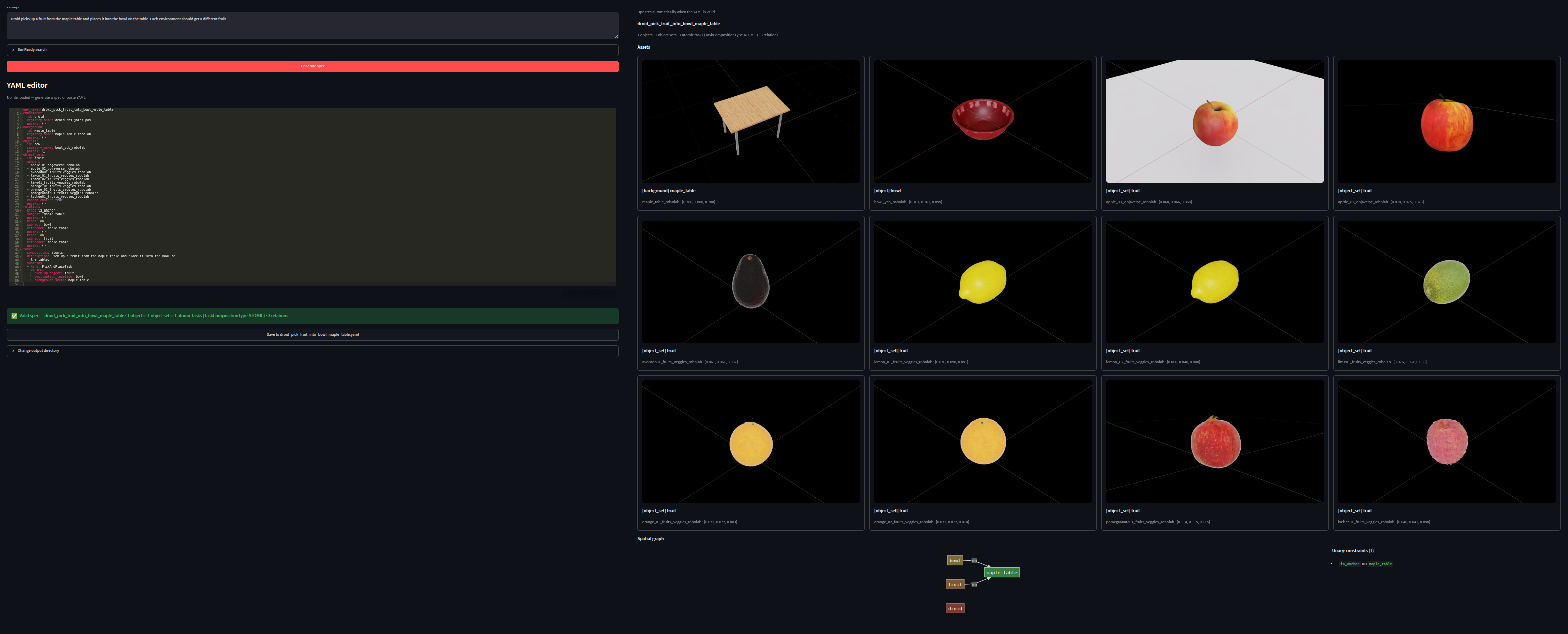

GUI runner view of the environment graph spec.

GUI runner view of the environment graph spec: the YAML editor on the left, and the environment graph visualization and task description on the right.#

Run the runner in resolve mode:

python isaaclab_arena_examples/agentic_environment_generation/cli_runner.py \
   --mode resolve \
   --prompt "Droid picks up a fruit from the maple table and places it into the bowl on the table. Each environment should get a different fruit."

The runner prints the generated graph and writes <env_name>.yaml under isaaclab_arena_environments/agent_generated/.
