Edit the Environment Graph Spec#

You may want to review or edit the spec before building the environment. The agent infers the spec from the prompt using a LLM model, and could be mistaken in its choices. For this task, the placement and task parameters are what usually need refinement — which side of the fridge the robot stands on, how far away, which way it faces, and how far the door has to open.

Understanding the YAML#

The generated spec has one block per part of the environment graph:

env_name: kitchen_bench_lightwheel_open_fridge
embodiment:                       # the robot, from the embodiment registry
  id: droid
  registry_name: droid_abs_joint_pos
  params:
    stand_height_m: 0.8           # the stand that lifts DROID to door-handle height
background:                       # the kitchen the task happens in
  id: kitchen
  registry_name: lightwheel_kitchen_one_wall_coastal
  params: {}
objects: []
object_references:                # prims that already exist inside the background
- id: floor
  parent_id: kitchen
  prim_path: floor_room/geometry
  object_type: base
  params: {}
- id: fridge
  parent_id: kitchen
  prim_path: fridge_main_group
  object_type: articulation       # articulated, so its joint can be driven and measured
  params:
    openable_joint_name: fridge_door_joint
relations:                        # spatial constraints solved at build time
- kind: is_anchor                 # referenced prims stay where the kitchen puts them
  subject: floor
  params: {}
- kind: is_anchor
  subject: fridge
  params: {}
- kind: 'on'                      # the robot stands on the kitchen floor
  subject: droid
  reference: floor
  params: {}
- kind: next_to
  subject: droid
  reference: fridge
  params:
    side: negative_y
    distance_m: 0.1
- kind: rotate_around_solution    # turn the robot to face the fridge
  subject: droid
  params:
    yaw_rad: 1.57
task:
  composition: atomic             # a single task
  description: open the fridge door
  subtasks:
  - kind: OpenDoorTask
    params:
      openable_object: fridge     # object id, not registry name
      openness_threshold: 0.2     # how open the door has to be to complete the task
      reset_openness: 0.0         # the door starts fully closed on every reset

An object_references entry is a prim that the background already contains, addressed by its prim_path under parent_id. Nothing is spawned for it — it only becomes a target that relations and task params can name by id. The fridge uses object_type: articulation and names fridge_door_joint as its openable joint, which is the joint OpenDoorTask resets and monitors.

For more details on the Env Spec, see Environment Definition.

Refining the robot placement and the task#

The generated relations identify the correct entities, but the initial layout may place the robot on the wrong side of the fridge or facing the wrong direction, and the door may open further than the policy needs to. The three parameters to tune are:

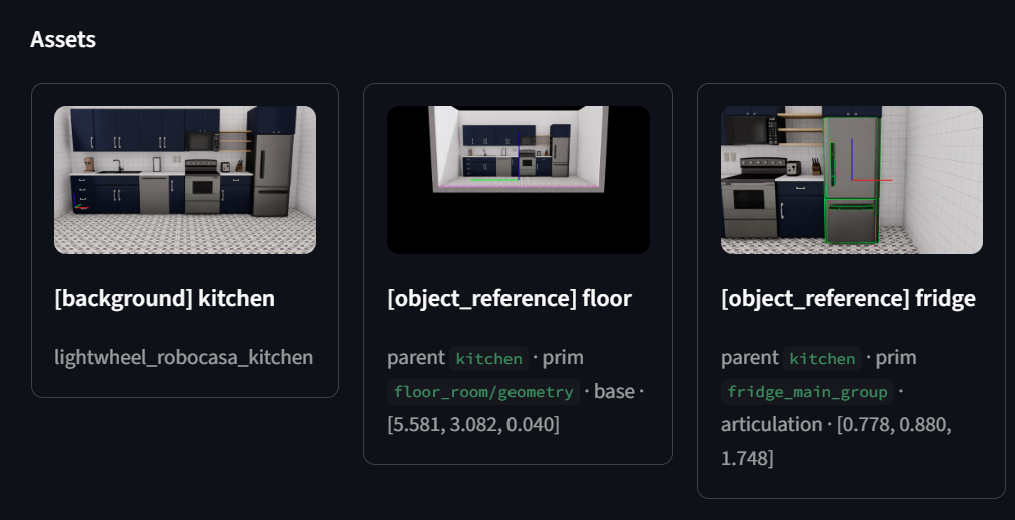

Kitchen, floor, and fridge snapshots with local XYZ axis overlays — Use the axis overlays to interpret the fridge orientation in the kitchen. Red is \(+X\), green is \(+Y\), and blue is \(+Z\).#

side and distance_m under next_to — which side of the fridge the robot stands on and how far from it.
yaw_rad under rotate_around_solution — the rotation applied after the solver computes the robot position, so that it faces the door.
openness_threshold under OpenDoorTask — how far the door has to swing before the task succeeds.

For this axis-aligned kitchen, the front of the fridge is its \(-Y\) edge. Set next_to.side to negative_y to place the robot in front of that edge. From there, the robot must face \(+Y\) toward the fridge. Its default heading is \(+X\), so set rotate_around_solution.yaw_rad to \(+\pi/2\) (1.57 radians) to rotate its heading toward \(+Y\) in the kitchen background frame.

- kind: next_to
  subject: droid
  reference: fridge
  params:
    side: negative_y
    distance_m: 0.1
- kind: rotate_around_solution
  subject: droid
  params:
    yaw_rad: 1.57

Applying your edits#

Edit in the browser (GUI)

The GUI is the recommended way to make these edits, because it validates and previews as you type:

Edit the spec directly in the YAML editor panel.
Click Clear cache and render to update the visualization of the environment graph.
Click Run relation solver preview to build the environment, solve the relations, run a zero-action rollout, and compare the viewport before and after the relation solver is run.
Click Save to <env_name>.yaml to write the spec to <env_name>.yaml in the output directory.

See GUI Runner for the full UI walkthrough.

Edit outside the GUI (text editor)

The YAML written by the CLI runner is locally stored so you can also edit it in any text editor and validate it by building and spawning a simulation environment:

python isaaclab_arena_examples/agentic_environment_generation/cli_runner.py \
   --mode build \
   --viz kit \
   --num_envs 1 \
   --num_steps 100 \
   --env_spec isaaclab_arena_environments/kitchen_bench/kitchen_bench_lightwheel_open_fridge.yaml

A spec you generated yourself is written to isaaclab_arena_environments/agent_generated/<env_name>.yaml instead — pass that path to build it.
